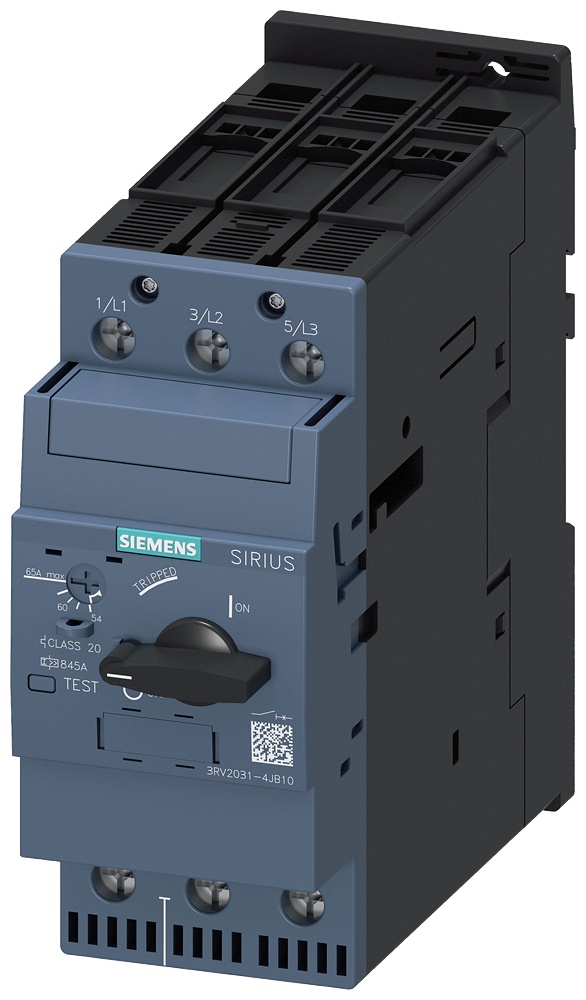

Siemens 3RV20314JB10 Motor Protection Circuit Breaker
Part Number # 3RV20314JB10
SKU # 2404565
$497.37 / Each
Typical price:$1088.00 / Each
Siemens 3RV20314JB10 Key Features
| Brand: | Siemens |
|---|---|
| Part Number # : | 3RV20314JB10 |
| SKU #: | 2404565 |
| Amperage Rating: | 54 to 65 A |
| Dimensions: | 140 mm H x 55 mm W x 149 mm D |
| Enclosure Type: | IP20 |
| Frame: | S2 |
| Frequency Rating: | 50 to 60 Hz |
| Interrupt Rating: | 4 kA |
| Number of Poles: | 3 |
| Phase: | 3 |
| Series: | 3RV2 |
| Temperature Rating (Degrees F): | -20 to 60 deg C |
| Trip Range: | 845 A |
| Trip Type: | Magnetic |
| Wire Size: | 18 to 2 AWG |
| Connection type: | Screw |
| Country of origin: | DE |
| Manufacturer Name: | Siemens |
| UNSPSC: | 39121601 |
| UPC: | 00804766061653 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$497.37 / Each
Typical price:$1088.00 / Each
Quantity:
- Siemens, 3RV20314JB10, Motor Protection Circuit Breaker, Series: 3RV2, 690 V AC, 54 to 65 A, 30 kW Power, 50 to 60 Hz Frequency, 4 kA Interrupt, S2 Frame, Magnetic Trip, 845 A Trip, 3 Pole, 3 ph, Screw Connection, 18 to 2 AWG Wire, IP20 Enclosure, DIN Rail Mounting, -20 to 60 deg C, 140 mm H x 55 mm W x 149 mm D Dimensions
3RV20314JB10 Application
Motor and System Protection Applications3RV20314JB10 Item Features
- 18500 W at 230 VAC, 30000 W at 400 VAC, 45000 W at 500 VAC, 55000 W at 690 VAC
- 65 kA at 240 VAC, 65 kA at 400 VAC, 8 kA at 500 VAC, 4 kA at 690 VAC
- Smaller control cabinet air conditioners can be used
- Minimization of energy losses through optimization of the bimetal trip units
- Reduction of inherent power loss
- 54 to 65 A thermal overload release, 845 A instantaneous overcurrent release
- 3RV2 motor starter protectors/circuit breakers are suitable for operation in IT systems (IT networks)
- Without auxiliary switch
- Less heating of the control cabinet
- Class 20 trip
- https://www.youtube.com/watch?v=r5Le5rO_66U|https://www.youtube.com/watch?v=QqQ3u50pOA0|https://www.youtube.com/watch?v=r3MRdVQEztw|https://www.youtube.com/watch?v=Nxe0AyVN99w|https://www.youtube.com/watch?v=4AdAIl-ElSk
3RV20314JB10 Standards
UL Listed|EAC Approved|VDE Approved|RoHS Compliant|ABS Approved|Bureau Veritas Certified|Lloyds Registered|PRS Certified|RINA Certified|RMRS Approved|DNV-GL Approved|EN 60715SKU #2404565Part Number #3RV20314JB10UNSPSC39121601UPC00804766061653
Image provided may only be a representation of final product and may include optional equipment
