Part Number # 3RV20314SA15
SKU # 2414385
3RV20314SA15

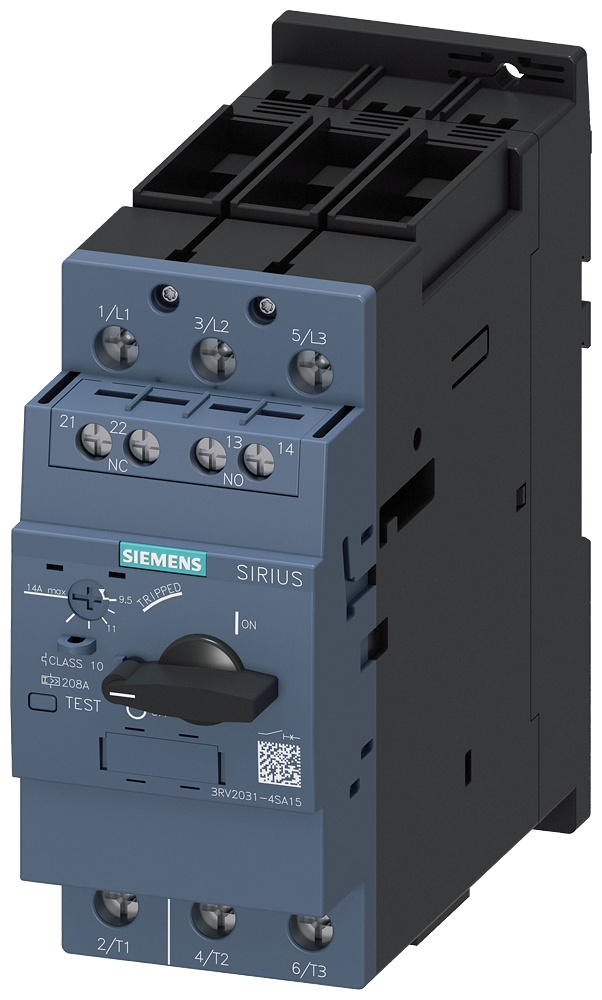

Siemens 3RV20314SA15 Motor Protection Circuit Breaker
Part Number # 3RV20314SA15
SKU # 2414385
$288.46 / Each
Typical price:$631.00 / Each
Siemens 3RV20314SA15 Key Features
| Brand: | Siemens |
|---|---|
| Part Number # : | 3RV20314SA15 |
| SKU #: | 2414385 |
| Amperage Rating: | 9.5 to 14 A |
| Auxiliary Contact Rating: | 1NO-1NC |
| Dimensions: | 140 mm H x 55 mm W x 149 mm D |
| Frame: | S2 |
| Frequency Rating: | 50 to 60 Hz |
| Interrupt Rating: | 3 kA |
| Phase: | 3 |
| Series: | 3RV2 |
| Temperature Rating (Degrees F): | -20 to 60 deg C |
| Trip Range: | 208 A |
| Trip Type: | Magnetic |
| Wire Size: | 18 to 3 AWG |
| Country of origin: | DE |
| UNSPSC: | 39121601 |
| UPC: | 00887621920005 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$288.46 / Each
Typical price:$631.00 / Each
Quantity:
- Siemens Motor Protection Circuit Breaker, Series: 3RV2, 690 V AC, 9.5 to 14 A, 30 kW Power, 50 to 60 Hz Frequency, 3 kA Interrupt, S2 Frame, Magnetic Trip, 208 A Trip, 3 Pole, 3 ph, Screw Connection, 1NO-1NC Auxiliary, 18 to 3 AWG Wire, IP20 Enclosure, DIN Rail Mounting, -20 to 60 deg C, 140 mm H x 55 mm W x 149 mm D Dimensions
3RV20314SA15 Application
Motor and System Protection Applications3RV20314SA15 Item Features
- Class 10 trip
- https://www.youtube.com/watch?v=5Oq25B99HBo
3RV20314SA15 Standards
CSA Certified|CE Certified|IEC Certified|UL ListedSKU #2414385Part Number #3RV20314SA15UNSPSC39121601UPC00887621920005
Image provided may only be a representation of final product and may include optional equipment
