3RV20314WB15

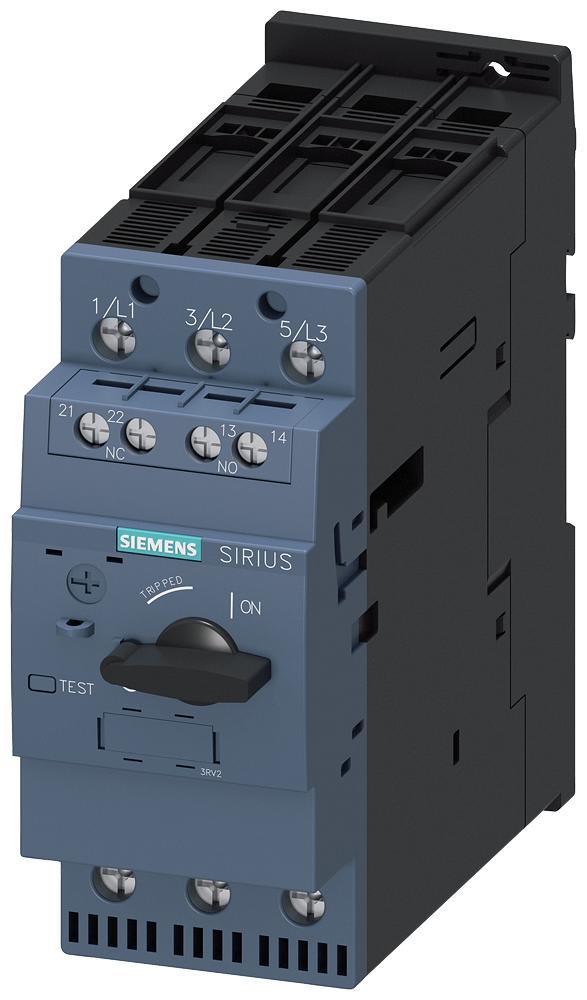

Siemens 3RV20314WB15 Motor Protection Circuit Breaker
Part Number # 3RV20314WB15
SKU # 2326298
$487.77 / Each
Typical price:$1067.00 / Each
Siemens 3RV20314WB15 Key Features
| Brand: | Siemens |
|---|---|
| Part Number # : | 3RV20314WB15 |
| SKU #: | 2326298 |
| Amperage Rating: | 42 to 52, 42 to 52 A |
| Auxiliary Contact Rating: | 1NO-1NC |
| Dimensions: | 140 mm H x 55 mm W x 149 mm D |
| Enclosure Type: | IP20 |
| Frame: | S2 |
| Frequency Rating: | 50 to 60, 50 to 60 Hz |
| Interrupt Rating: | 4, 4 kA |
| Number of Poles: | 3 |
| Phase: | 3 |
| Series: | 3RV2 |
| Temperature Rating (Degrees F): | -20 to 60, -20 to 60 deg C |
| Trip Range: | 741, 741 A |
| Trip Type: | Magnetic |
| Wire Size: | 18 to 2, 18 to 2 AWG |
| Connection type: | Screw |
| Country of origin: | DE |
| Mounting type: | DIN Rail |
| Manufacturer Name: | Siemens |
| UNSPSC: | 39121601 |
| UPC: | 00887621920142 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$487.77 / Each
Typical price:$1067.00 / Each
Quantity:
- Siemens Motor Protection Circuit Breaker, Series: 3RV2, 690 V AC, 42 to 52 A, 45 kW Power, 50 to 60 Hz Frequency, 4 kA Interrupt, S2 Frame, Magnetic Trip, 741 A Trip, 3 Pole, 3 ph, Screw Connection, 1NO-1NC Auxiliary, 18 to 2 AWG Wire, IP20 Enclosure, DIN Rail Mounting, -20 to 60 deg C, 140 mm H x 55 mm W x 149 mm D Dimensions
3RV20314WB15 Application
Motor and System Protection Applications3RV20314WB15 Item Features
- Class 20 trip
- https://www.youtube.com/watch?v=5Oq25B99HBo
3RV20314WB15 Standards
CSA Certified|CE Certified|IEC Certified|UL ListedSKU #2326298Part Number #3RV20314WB15UNSPSC39121601UPC00887621920142
