Part Number # 3RV20324JA10
SKU # 2358759
Image Disclaimers Message
3RV20324JA10

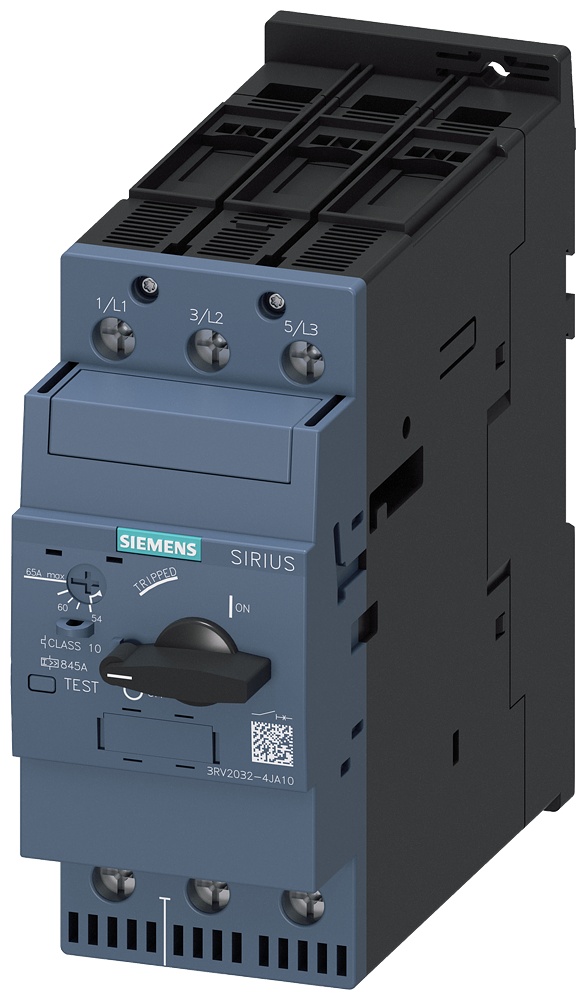

Siemens 3RV20324JA10 Motor Protection Circuit Breaker
Part Number # 3RV20324JA10
SKU # 2358759
$483.20 / Each
Typical price:$1057.00 / Each
Siemens 3RV20324JA10 Key Features
| Brand: | Siemens |
|---|---|
| Part Number # : | 3RV20324JA10 |
| SKU #: | 2358759 |
| Amperage Rating: | 54 to 65, 54 to 65 A |
| Dimensions: | 140 mm H x 55 mm W x 149 mm D |
| Enclosure Type: | IP20 |
| Frame: | S2 |
| Frequency Rating: | 50 to 60, 50 to 60 Hz |
| Interrupt Rating: | 6, 6 kA |
| Number of Poles: | 3 |
| Phase: | 3 |
| Series: | 3RV2 |
| Temperature Rating (Degrees F): | -20 to 60, -20 to 60 deg C |
| Trip Range: | 845, 845 A |
| Trip Type: | Magnetic |
| Wire Size: | 18 to 2, 18 to 2 AWG |
| Connection type: | Screw |
| Country of origin: | DE |
| Mounting type: | DIN Rail |
| Manufacturer Name: | Siemens |
| UNSPSC: | 39121601 |
| UPC: | 00804766061691 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$483.20 / Each
Typical price:$1057.00 / Each
Quantity:
- Siemens Motor Protection Circuit Breaker, Series: 3RV2, 690 V AC, 54 to 65 A, 55 kW Power, 50 to 60 Hz Frequency, 6 kA Interrupt, S2 Frame, Magnetic Trip, 845 A Trip, 3 Pole, 3 ph, Screw Connection, 18 to 2 AWG Wire, IP20 Enclosure, DIN Rail Mounting, -20 to 60 deg C, 140 mm H x 55 mm W x 149 mm D Dimensions
3RV20324JA10 Application
Motor and System Protection Applications3RV20324JA10 Item Features
- Class 10 trip
- https://www.youtube.com/watch?v=5Oq25B99HBo
3RV20324JA10 Standards
CSA Certified|CE Certified|IEC Certified|UL ListedSKU #2358759Part Number #3RV20324JA10UNSPSC39121601UPC00804766061691
