Part Number # 3RV21111JA10
SKU # 2403599
Image Disclaimers Message
3RV21111JA10

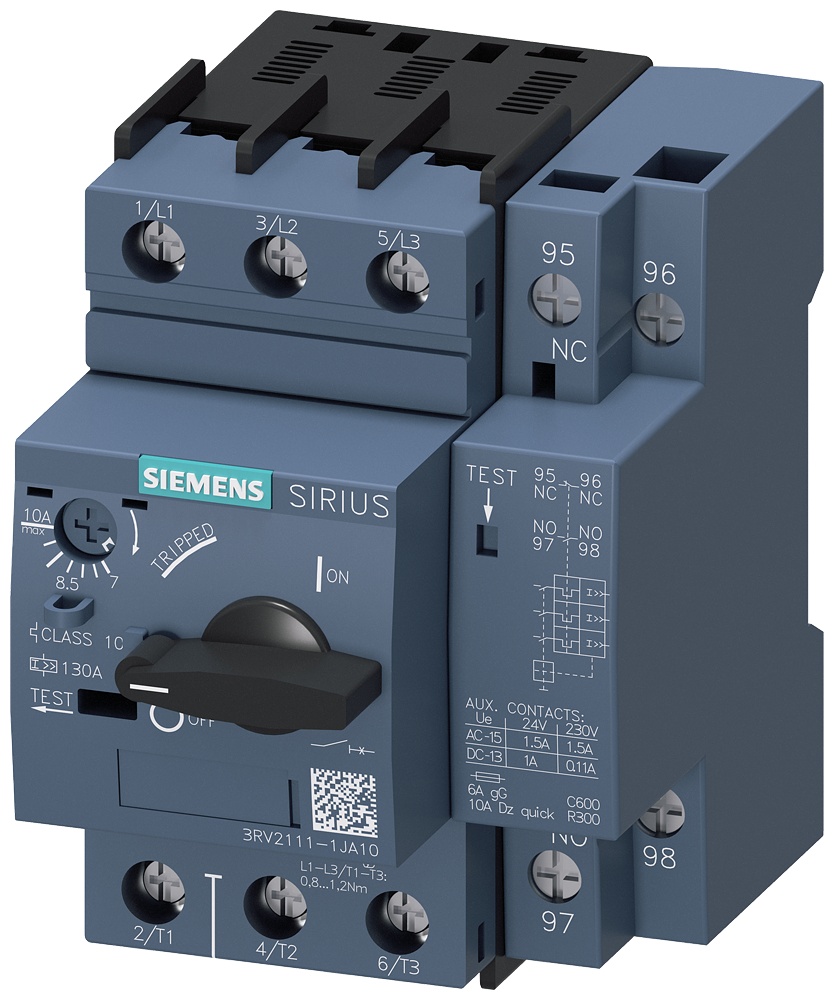

Siemens 3RV21111JA10 Sirius Motor Protection Circuit Breaker
Part Number # 3RV21111JA10
SKU # 2403599
$259.34 / Each
Typical price:$626.00 / Each
Siemens 3RV21111JA10 Key Features
| Brand: | Siemens |
|---|---|
| Part Number # : | 3RV21111JA10 |
| SKU #: | 2403599 |
| Amperage Rating: | 7 to 10 A |
| Dimensions: | 97 mm H x 65 mm W x 96 mm D |
| Enclosure Type: | IP20 |
| Frame: | 3RV2/S00 |
| Frequency Rating: | 50/60 Hz |
| Interrupt Rating: | 6 kA |
| Number of Poles: | 3 |
| Phase: | 3 |
| Temperature Rating (Degrees F): | -20 to 60 deg C |
| Trip Type: | Thermal Magnetic, Thermal/Magnetic |
| Wire Size: | 18 to 14 AWG, 12 AWG |
| Connection type: | Screw |
| Country of origin: | DE |
| Mounting type: | DIN Rail |
| Manufacturer Name: | Siemens |
| UNSPSC: | 39121601 |
| UPC: | 00662643923124 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$259.34 / Each
Typical price:$626.00 / Each
Quantity:
- Siemens SIRIUS Motor Protection Circuit Breaker, 690 V AC, 7 to 10 A, 7.5 kW Power, 50/60 Hz Frequency, 6 kA Interrupt, 3RV2/S00 Frame, Thermal Magnetic Trip, 3 Pole, 3 ph, Screw Connection, 18 to 14 AWG, 12 AWG Wire, IP20 Enclosure, DIN Rail Mounting, -20 to 60 deg C, 97 mm H x 65 mm W x 96 mm D Dimensions
3RV21111JA10 Application
For motor, system protection and MSP with overload relay function3RV21111JA10 Item Features
- Screw and snap-on mounting onto 35 mm standard mounting rail according to DIN EN 60715
- Standard switch capacity
- (2) 18 to 14 AWG, (2) 12 AWG
- - 50 to 80 deg C environmental conditions
- Class 10 trip
- 100000 cycles switching
- MSP with overload relay function
- Automatic reset
- With overload relay function
- https://www.youtube.com/watch?v=5Oq25B99HBo
3RV21111JA10 Standards
CE / UL / CSA / CCCSKU #2403599Part Number #3RV21111JA10UNSPSC39121601UPC00662643923124
