$393.60/EA
- Class 10 trip
- https://www.youtube.com/watch?v=5Oq25B99HBo
Specifications
Brand: Siemens
Amperage Rating: 32 to 40 A
Dimensions: 140 mm H x 75 mm W x 149 mm D
Enclosure Type: IP20
Frame: S2
Frequency Rating: 50 to 60 Hz
Interrupt Rating: 2 kA
Number of Poles: 3
Phase: 3
Power Rating: 37 kW
Series: 3RV2
Temperature Rating (Degrees F): -20 to 60 deg C
Trip Range: 585 A
Trip Type: Magnetic
Voltage Rating: 690 VAC
Wire Size: 18 to 3 AWG
Connection type: Screw
Country of origin: DE
Mounting type: DIN Rail
Manufacturer Name: Siemens
UNSPSC: 39121601
UPC: 00887621920401

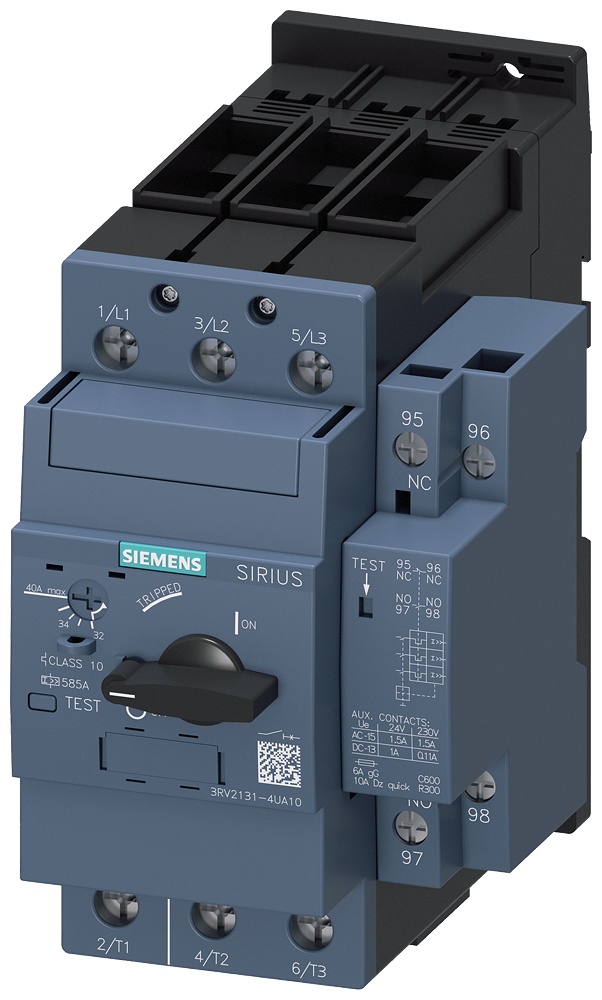

Siemens 3RV21314UA10 Motor Protection Circuit Breaker
Siemens Motor Protection Circuit Breaker, Series: 3RV2, 690 VAC, 32 to 40 A, 37 kW Power, 50 to 60 Hz Frequency, 2 kA Interrupt, S2 Frame, Magnetic Trip, 585 A Trip, 3 Pole, 3 ph, Screw Connection, 18 to 3 AWG Wire, IP20 Enclosure, DIN Rail Mounting, -20 to 60 deg C, 140 mm H x 75 mm W x 149 mm D Dimensions
Additional Description: SIEM-3RV21314UA10 MSP S2 CLASS 10 32-40A SCREW AUTO RESET
Catalog Description: CIRCUIT BREAKER, SIZE S2, FOR MOTOR PROTECTION, CLASS 10, W. OVERLOAD RELAY FUNCTION A-RELEASE 32...40A, N-RELEASE 585A, STANDARD BREAKING CAPACITY
Item FeaturesFor system and motor protection with overload relay function
Item Features
Item FeaturesCSA Certified|CE Certified|IEC Certified|UL Listed
