3RV24110JA10

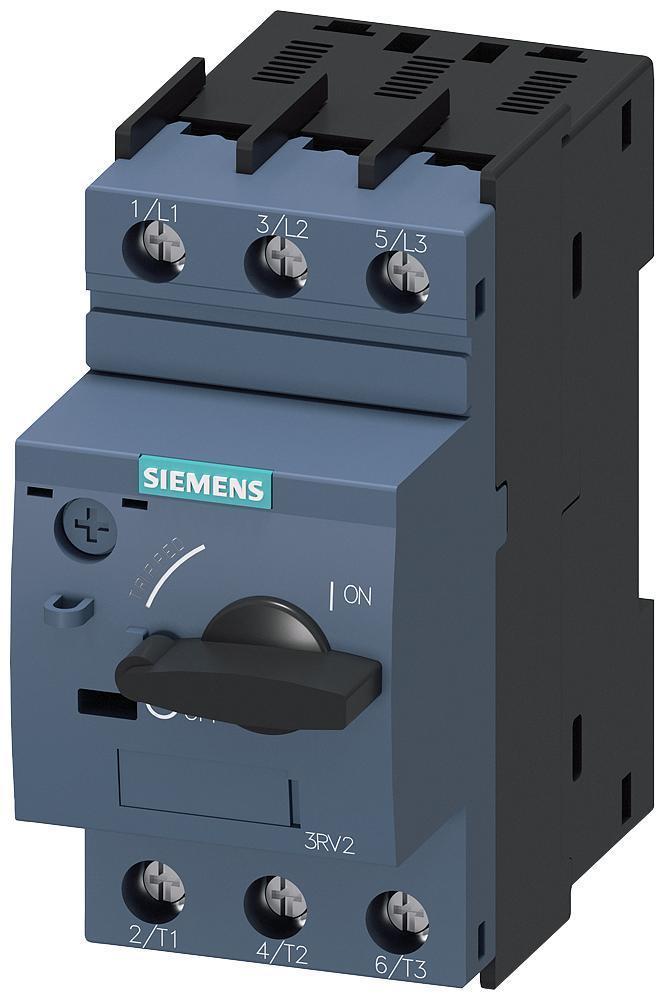

Siemens 3RV24110JA10 SIRIUS Motor Protection Circuit Breaker
Part Number # 3RV24110JA10
SKU # 2233817
$156.19 / Each
Typical price:$377.00 / Each
Siemens 3RV24110JA10 Key Features
| Brand: | Siemens |
|---|---|
| Part Number # : | 3RV24110JA10 |
| SKU #: | 2233817 |
| Amperage Rating: | 0.7 to 1, 0.7 to 1 A |
| Dimensions: | 97 mm H x 45 mm W x 96 mm D |
| Enclosure Type: | IP20 |
| Frame: | S00 |
| Frequency Rating: | 50 to 60, 50 to 60 Hz |
| Interrupt Rating: | 100, 100 kA |
| Number of Poles: | 3 |
| Phase: | 3 |
| Series: | 3RV2 |
| Temperature Rating (Degrees F): | -20 to 60, -20 to 60 deg C |
| Trip Range: | 21, 21 A |
| Trip Type: | Magnetic |
| Wire Size: | 18 to 14, 18 to 14 AWG |
| Connection type: | Screw |
| Country of origin: | DE |
| Mounting type: | DIN Rail |
| Manufacturer Name: | Siemens |
| UNSPSC: | 39121601 |
| UPC: | 00662643922141 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$156.19 / Each
Typical price:$377.00 / Each
Quantity:
- SIRIUS Motor Protection Circuit Breaker, Series: 3RV2, 690 V AC, 0.7 to 1 A, 550 W Power, 50 to 60 Hz Frequency, 100 kA Interrupt, S00 Frame, Magnetic Trip, 21 A Trip, 3 Pole, 3 ph, Screw Connection, 18 to 14 AWG Wire, IP20 Enclosure, DIN Rail Mounting, -20 to 60 deg C, 97 mm H x 45 mm W x 96 mm D Dimensions
3RV24110JA10 Application
Transformer Protection Applications3RV24110JA10 Item Features
- https://www.youtube.com/watch?v=n2AKmVUVH7Y
3RV24110JA10 Standards
CSA Certified|CE Certified|IEC Certified|UL ListedSKU #2233817Part Number #3RV24110JA10UNSPSC39121601UPC00662643922141
