Part Number # 3RV24111AA15
SKU # 2297568
Image Disclaimers Message
3RV24111AA15

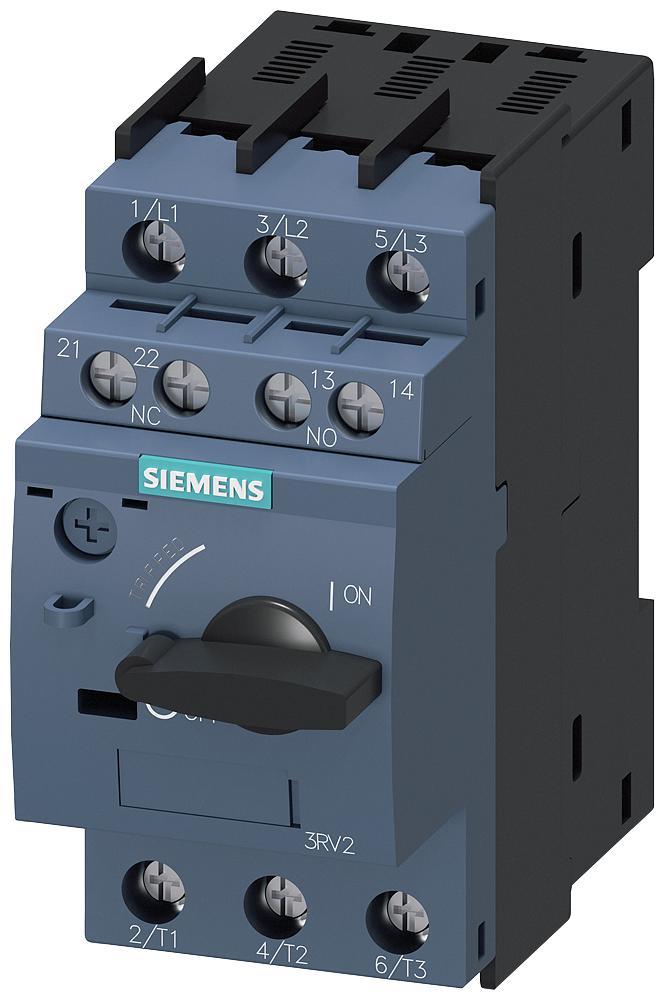

Siemens 3RV24111AA15 Motor Protection Circuit Breaker
Part Number # 3RV24111AA15
SKU # 2297568
$188.91 / Each
Typical price:$456.00 / Each
Siemens 3RV24111AA15 Key Features
| Brand: | Siemens |
|---|---|
| Part Number # : | 3RV24111AA15 |
| SKU #: | 2297568 |
| Amperage Rating: | 1.1 to 1.6, 1.1 to 1.6 A |
| Auxiliary Contact Rating: | 1NO-1NC |
| Dimensions: | 97 mm H x 45 mm W x 96 mm D |
| Enclosure Type: | IP20 |
| Frame: | S00 |
| Frequency Rating: | 50 to 60, 50 to 60 Hz |
| Interrupt Rating: | 100, 100 kA |
| Number of Poles: | 3 |
| Phase: | 3 |
| Series: | 3RV2 |
| Temperature Rating (Degrees F): | -20 to 60, -20 to 60 deg C |
| Trip Range: | 33, 33 A |
| Trip Type: | Magnetic |
| Wire Size: | 18 to 14, 18 to 14 AWG |
| Connection type: | Screw |
| Country of origin: | DE |
| Mounting type: | DIN Rail |
| Manufacturer Name: | Siemens |
| UNSPSC: | 39121601 |
| UPC: | 00662643922219 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$188.91 / Each
Typical price:$456.00 / Each
Quantity:
- Siemens Motor Protection Circuit Breaker, Series: 3RV2, 690 V AC, 1.1 to 1.6 A, 1.1 kW Power, 50 to 60 Hz Frequency, 100 kA Interrupt, S00 Frame, Magnetic Trip, 33 A Trip, 3 Pole, 3 ph, Screw Connection, 1NO-1NC Auxiliary, 18 to 14 AWG Wire, IP20 Enclosure, DIN Rail Mounting, -20 to 60 deg C, 97 mm H x 45 mm W x 96 mm D Dimensions
3RV24111AA15 Application
Transformer Protection Applications3RV24111AA15 Item Features
- https://www.youtube.com/watch?v=5Oq25B99HBo
3RV24111AA15 Standards
CSA Certified|CE Certified|IEC Certified|UL ListedSKU #2297568Part Number #3RV24111AA15UNSPSC39121601UPC00662643922219
