Part Number # 3RV28110FD10
SKU # 2460441
Brand: Siemens
3RV28110FD10
Siemens 3RV28110FD10
Part Number # 3RV28110FD10
SKU # 2460441
$321.07 / Each
Typical price:$775.00 / Each
Siemens 3RV28110FD10 Key Features
| Brand: | Siemens |
|---|---|
| Part Number # : | 3RV28110FD10 |
| SKU #: | 2460441 |
| Amperage Rating: | 0.5 A |
| Dimensions: | 144 mm H x 45 mm W x 97 mm D |
| Enclosure Type: | IP20 |
| Frame: | S00 |
| Frequency Rating: | 50 to 60 Hz |
| Interrupt Rating: | 100 kA |
| Number of Poles: | 3 |
| Phase: | 3 |
| Series: | 3RV2 |
| Temperature Rating (Degrees F): | -20 to 60 deg C |
| Trip Range: | 10 A |
| Trip Type: | Magnetic |
| Wire Size: | 14 AWG |
| Connection type: | Screw |
| Country of origin: | DE |
| Manufacturer Name: | Siemens |
| UNSPSC: | 39121601 |
| UPC: | 00662643922912 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$321.07 / Each
Typical price:$775.00 / Each
Quantity:
- Siemens SIRIUS, 3RV28110FD10, Motor Protection Circuit Breaker, Series: 3RV2, 690 V AC, 0.5 A, 180 W Power, 50 to 60 Hz Frequency, 100 kA Interrupt, S00 Frame, Magnetic Trip, 10 A Trip, 3 Pole, 3 ph, Screw Connection, 14 AWG Wire, IP20 Enclosure, DIN Rail Mounting, -20 to 60 deg C, 144 mm H x 45 mm W x 97 mm D Dimensions
3RV28110FD10 Application
For system and transformer protection3RV28110FD10 Item Features
- 100 kA at 240 VAC, 100 kA at 400 VAC, 100 kA at 500 VAC, 100 kA at 690 VAC
- 0.5 A thermal overload release, 10 A instantaneous overcurrent release
- Smaller control cabinet air conditioners can be used
- Minimization of energy losses through optimization of the bimetal trip units
- Reduction of inherent power loss
- Without auxiliary switch
- Less heating of the control cabinet
- 3RV2 motor starter protectors/circuit breakers are suitable for operation in IT systems (IT networks)
- https://www.youtube.com/watch?v=5Oq25B99HBo
3RV28110FD10 Standards
UL Listed|CCC Certified|CSA C22.2 File No. 5-02|UL 489|EAC Approved|VDE Approved|RoHS Compliant|Bureau Veritas Certified|Lloyds Registered|RMRS ApprovedSKU #2460441Part Number #3RV28110FD10UNSPSC39121601UPC00662643922912

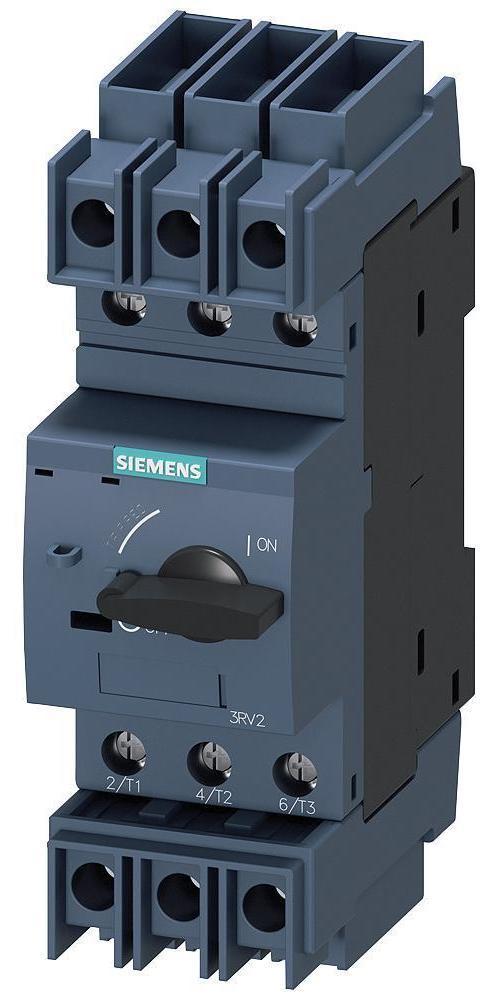

Image provided may only be a representation of final product and may include optional equipment
