Siemens 3SU10004BN010AA0 Sirius Act Switch Operator
Part Number # 3SU10004BN010AA0
SKU # 2437661
Siemens 3SU10004BN010AA0 Key Features
| Brand: | Siemens |
|---|---|
| Part Number # : | 3SU10004BN010AA0 |
| SKU #: | 2437661 |
| UNSPSC: | 39122224 |
| UPC: | 00804766062896 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
Siemens 3SU10004BN010AA0 Sirius Act Switch Operator
Brand: Siemens
Part Number: 3SU10004BN010AA0

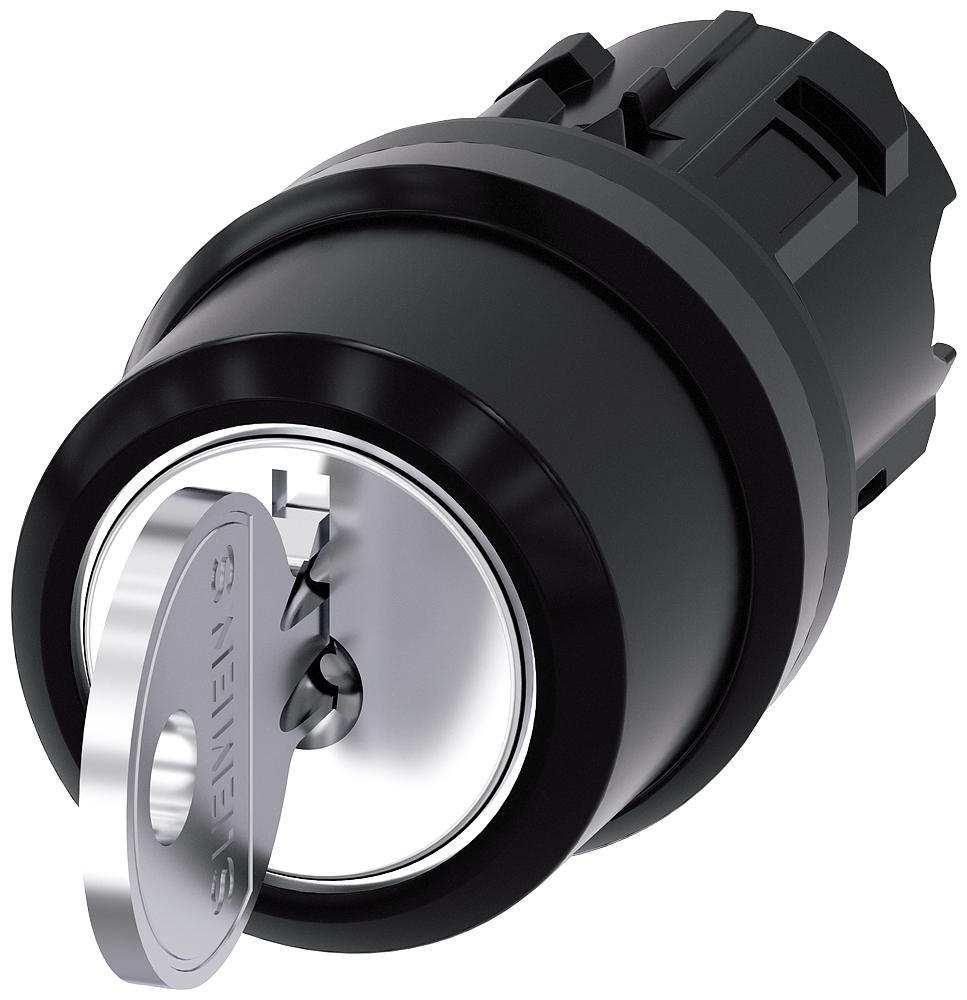

Siemens SIRIUS ACT Switch Operator, Non-Illuminated Round, Series: 3SU10, 22 mm Size, Momentary Contact Mode, RONIS SB30 Key/Latching Operator, 3 Positions, 2 x 45 deg Throw, NEMA 1/2/3/3R/4/4X/12/13/IP20/IP66/IP67/IP69/IP69K Enclosure, Bezel/Housing: Plastic, -25 to 70 deg C, Metal/Plastic, Black/Silver
Additional Description: SIEM-3SU10004BN010AA0 KEY SW, 3POS, MOM, KEY REMOVAL IN CENTER
Catalog Description: Ronis key-operated switch, 22mm, round, plastic, lock no. sb30, with 2 keys, 3 switch positions i-o-ii, latching to the left, mom. contact type to the right, actuating angle 2x45 deg., 10 30h/12h/13 30h, key removal pos. o, possible special locks sb31, 421, 455
3SU10004BN010AA0 Item Features
- Direct connection of the enclosure to AS-interface or IO-link
- Direct connection in the control cabinet to PROFINET, IO-link or AS-interface
- Can be integrated easily via the TIA portal
- Self-holding function of the actuator when mounting
- Twist prevention integrated into patented holder design
- Stackable contact modules
- Self-explanatory and fast installation using one hand
- Components can be mounted with holder removed
- No special tools required, simple size 2 screwdriver (cross-tip DIN ISO 87641PZD1, flat-head DIN ISO 2380-1 A/B 1x4.5) is sufficient
- (2) 45 deg (10:30 hr/12 hr/13:30 hr), return from right, left latching
- RONIS SB30 Keyed
3SU10004BN010AA0 Standards
WEEE 2012/19/EU|CSA Certified|UL Listed|EAC Certified|CE Certified|ABS Approved|Lloyds Register|PRS Approved|RINA Approved|RMRS Approved|DNV-GL ApprovedSKU #2437661Part Number #3SU10004BN010AA0UNSPSC39122224UPC00804766062896
Image provided may only be a representation of final product and may include optional equipment
