Part Number # 3SU10604LF110AA0
SKU # 2453462
Image Disclaimers Message
Brand: Siemens
3SU10604LF110AA0
Siemens 3SU10604LF110AA0
Part Number # 3SU10604LF110AA0
SKU # 2453462
$145.37 / Each
Typical price:$318.00 / Each
Siemens 3SU10604LF110AA0 Key Features
| Brand: | Siemens |
|---|---|
| Part Number # : | 3SU10604LF110AA0 |
| SKU #: | 2453462 |
| Bezel/Housing: | Metal |
| Enclosure Type: | NEMA 1/2/3/3R/4/4X/12/13/IP20/IP66/IP67/IP69/IP69K |
| Finish: | Matte |
| Number of Positions: | 2 |
| Operator Type: | Keyed, RONIS SB30 Key/Latching |
| Series: | 3SU10 |
| Size: | 30 mm |
| Temperature Rating (Degrees F): | -25 to 70 deg C |
| Throw: | 90 deg |
| Type: | Non-Illuminated Round |
| Color: | Sand Gray/Silver |
| Country of origin: | CZ |
| Material: | Metal |
| Manufacturer Name: | Siemens |
| UNSPSC: | 39122224 |
| UPC: | 00804766069727 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$145.37 / Each
Typical price:$318.00 / Each
Quantity:

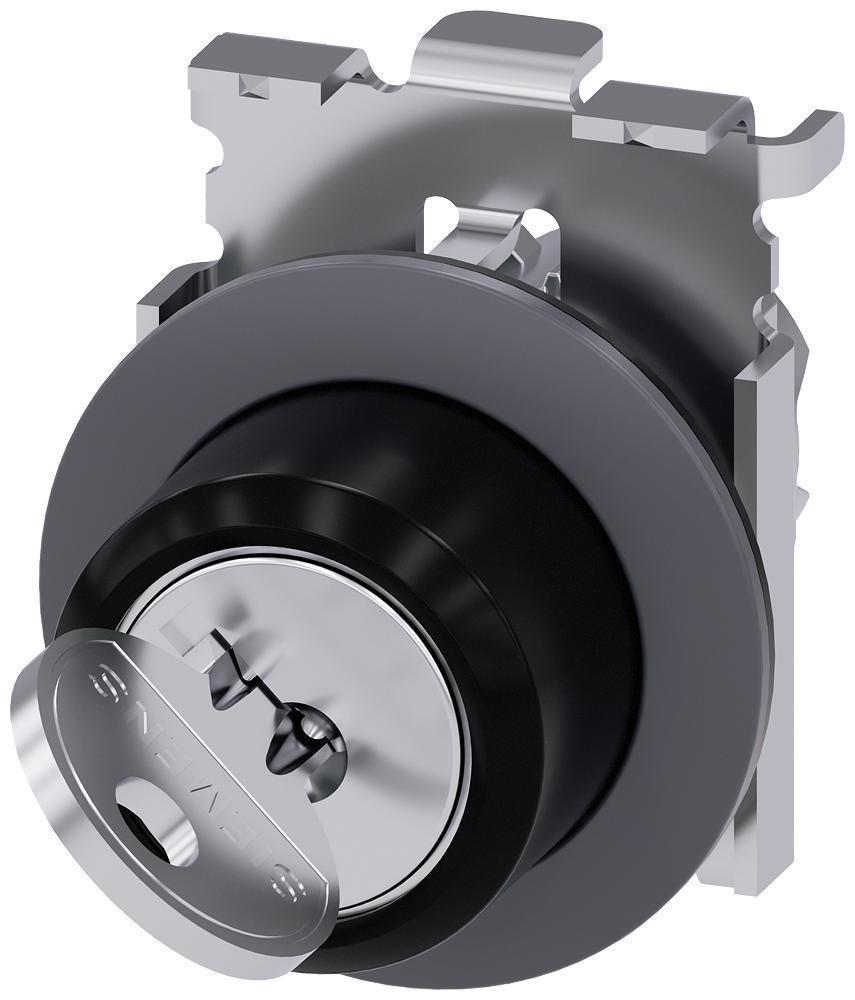

- Siemens SIRIUS ACT Switch Operator, Non-Illuminated Round, Series: 3SU10, 30 mm Size, Maintained Contact Mode, Keyed Operator, 2 Positions, 90 deg Throw, NEMA 1/2/3/3R/4/4X/12/13/IP20/IP66/IP67/IP69/IP69K Enclosure, Bezel/Housing: Metal, -25 to 70 deg C, Metal, Matte, Sand Gray/Silver
3SU10604LF110AA0 Item Features
- Direct connection of the enclosure to AS-interface or IO-link
- Direct connection in the control cabinet to PROFINET, IO-link or AS-interface
- Can be integrated easily via the TIA portal
- Self-holding function of the actuator when mounting
- Twist prevention integrated into patented holder design
- Stackable contact modules
- Self-explanatory and fast installation using one hand
- Components can be mounted with holder removed
- No special tools required, simple size 2 screwdriver (cross-tip DIN ISO 87641PZD1, flat-head DIN ISO 2380-1 A/B 1x4.5) is sufficient
- 90 deg (10:30 hr/13:30 hr)
- RONIS SB30 Keyed
3SU10604LF110AA0 Standards
WEEE 2012/19/EU|CSA Certified|UL Listed|EAC Certified|CE Certified|ABS Approved|Lloyds Register|PRS Approved|RINA Approved|RMRS Approved|DNV-GL ApprovedSKU #2453462Part Number #3SU10604LF110AA0UNSPSC39122224UPC00804766069727
