Part Number # 3VA2225-5HL32-0AA0
SKU # 2457776
Image provided may only be a representation of
final product and may include optional equipment
3VA2225-5HL32-0AA0

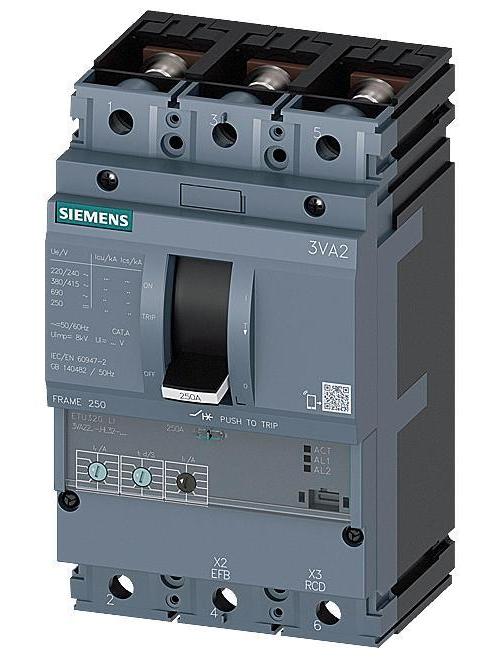

Siemens 3VA2225-5HL32-0AA0
Part Number # 3VA2225-5HL32-0AA0
SKU # 2457776
Siemens 3VA2225-5HL32-0AA0 Key Features
| Brand: | Siemens |
|---|---|
| Part Number # : | 3VA2225-5HL32-0AA0 |
| SKU #: | 2457776 |
| Amperage Rating: | 250 A |
| Dimensions: | 4.1 in W x 4.2 in D x 7.1 in H |
| Enclosure Type: | IP40 |
| Frame: | 3VA22 IEC 250 A |
| Frequency Rating: | 50/60 Hz |
| Interrupt Rating: | 3 kA at 690 V, 55 kA at 415 VAC |
| Number of Poles: | 3 |
| Temperature Rating (Degrees F): | -25 to 70 deg C |
| Trip Type: | Electronic |
| Type: | Low Voltage |
| Connection type: | Lug Terminal/Nut Keeper |
| Country of origin: | CZ |
| Mounting type: | Fixed |
| Manufacturer Name: | Siemens |
| UNSPSC: | 39121601 |
| UPC: | 00804766446108 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
Siemens 3VA2225-5HL32-0AA0
Brand: Siemens
Part Number: 3VA2225-5HL32-0AA0
Siemens Sentron™ Molded Case Circuit Breaker, Low Voltage, 690 VAC, 250 A, 50/60 Hz, 3 kA at 690 V, 55 kA at 415 VAC Interrupt, 3VA22 IEC 250 A Frame, ETU320 Electronic Trip Unit Trip, 3 Pole, Lug Terminal/Nut Keeper, IP40 Enclosure, Fixed Mount, -25 to 70 deg C, 4.1 in W x 4.2 in D x 7.1 in H
Additional Description: SIEM-3VA2225-5HL32-0AA0 BRKR 3VA22 3P 250A 55KA ETU3-LI NUT
Catalog Description: SIEMENS LOW VOLTAGE 3VA IEC MOLDED CASE CIRCUIT BREAKER WITH ELECTRONIC TRIP UNIT. 3VA22 FRAME WITH MEDIUM (CLASS M) BREAKING CAPACITY. 250A 3-POLE Icu (3KAIC AT 690V) (55KAIC AT 415V). ETU320 TRIP UNIT LI. SPECIAL FEATURES CONNECTION WITHLUG TERMINAL / NUT KEEPER. DIMENSIONS (W x H x D) IN 4.1 x 7.1 x 4.2.
3VA2225-5HL32-0AA0 Application
Designed to Provide Overload and Short-Circuit Protection for Cables, Lines and Non-Motorized Loads3VA2225-5HL32-0AA0 Item Features
- Compliance with global standards and certifications
- Minimum space requirement thanks to the compact design
- Extensive selection of internal accessories (auxiliary and alarm switches, shunt trips), that are universal to the product line
- Power metering and communication capability with Modbus, Profibus, Profinet protocols
- Minimal effort for planning and configuration as a result of extensive CAD data
- Knowledge manager - technical information on a specific device can be accessed directly via QR code
- Without auxiliary releases and auxiliary alarm switches
3VA2225-5HL32-0AA0 Standards
CE Certified|CCC Certified|CB Approved|EAC Compliant|IEC/EN 60947-1|IEC/EN 60947-2|RCM|VDE CertifiedSKU #2457776Part Number #3VA2225-5HL32-0AA0UNSPSC39121601UPC00804766446108
