Part #:3VA5110-5ED31-0AA0
SKU #: 2335446
Key Features
Part #:3VA5110-5ED31-0AA0
SKU #: 2335446
Brand: Siemens
Amperage Rating: 125 A
Dimensions: 5.51 in H x 3 in W x 3.68 in D
Enclosure Type: IP40
Frequency Rating: 50/60, 50/60 Hz
Interrupt Rating: 35, 35 kA
- The new 3VA5 molded case circuit breakers reliably perform all the tasks required for circuit protection
- Compact design
- Modular and easy to fit internal accessories with diverse functions
- When it comes to operation, functionality and installation, the new 3VA UL series of molded case circuit breakers is a fully integrated system
- Without connection

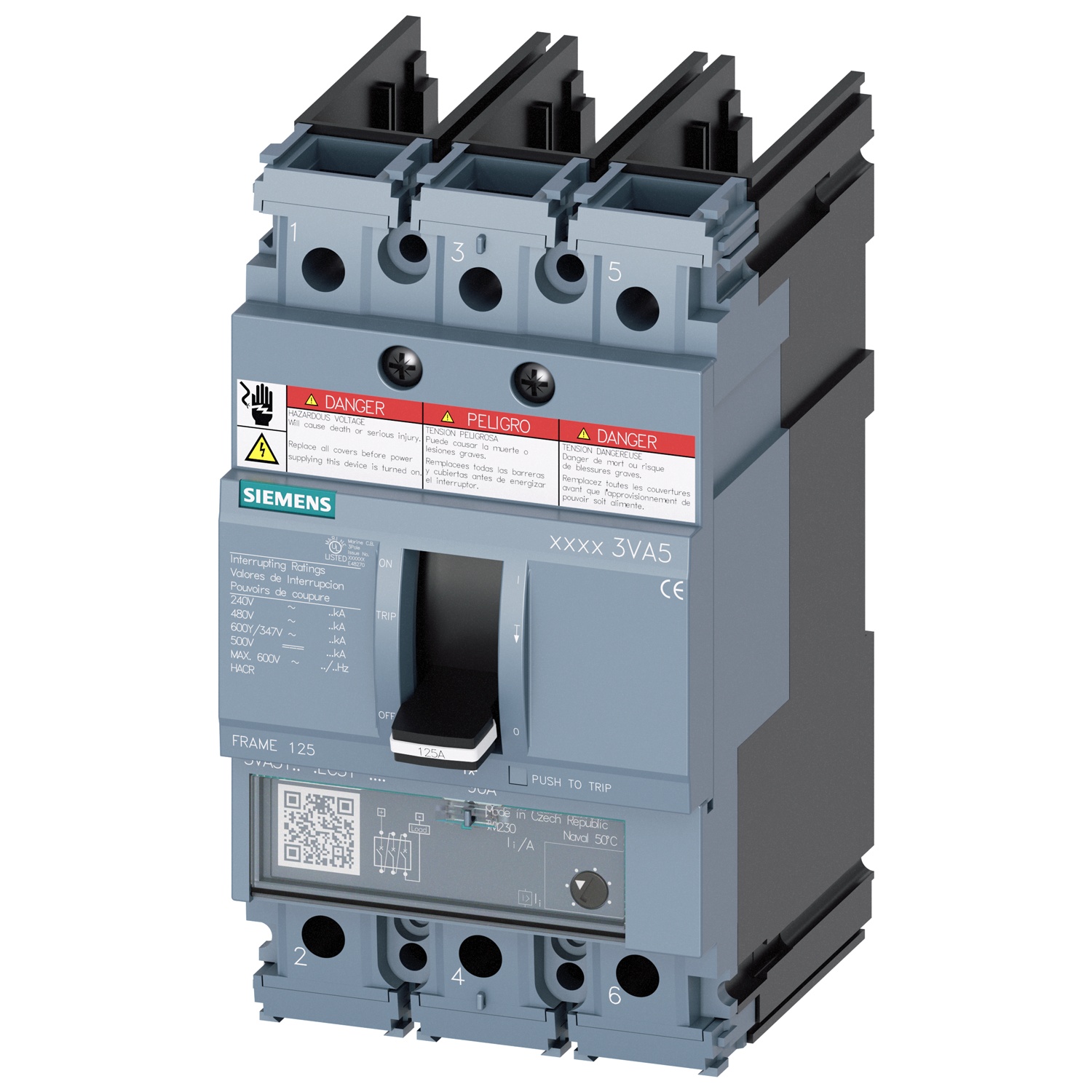

Siemens 3VA5110-5ED31-0AA0 Molded Case Circuit Breaker
Siemens Molded Case Circuit Breaker, Series: 3VA5, 690 VAC/500 VDC, 125 A, 50/60 Hz Frequency, 35 kA Interrupt, Thermal/Magnetic Trip, 3 Pole, IP40 Enclosure, Fixed Mounting, -25 to 70 deg C, 5.51 in H x 3 in W x 3.68 in D Dimensions
Additional Description: SIEM-3VA5110-5ED31-0AA0 BRKR 3VA51 3P 100A 35KA FTFM
Catalog Description: SIEMENS LOW VOLTAGE 3VA UL MOLDED CASE CIRCUIT BREAKER WITH THERMAL - MAGNETIC TRIP UNIT. 3VA51 FRAME WITH MEDIUM (CLASS M) BREAKING CAPACITY. 100A 3-POLE (18KAIC AT 600Y/347) (35KAIC AT 480V). TM210 TRIP UNIT WITH FIXED Ir FIXED Ii. SPECIAL FEATURES WITHOUT LUGS. DIMENSIONS (W x H x D) IN 3 x 5.5 x 3.7.
