Part Number # 3VA5330-5EC31-0AA0
SKU # 2384978
Image Disclaimers Message
3VA5330-5EC31-0AA0

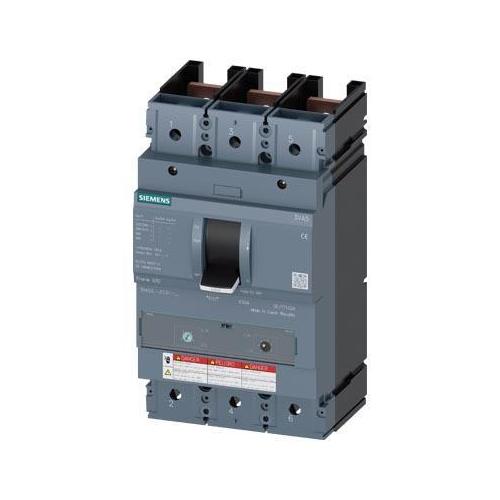

Siemens 3VA5330-5EC31-0AA0 Sentron Circuit Breaker
Part Number # 3VA5330-5EC31-0AA0
SKU # 2384978
$2567.31 / Each
Typical price:$4992.00 / Each
Siemens 3VA5330-5EC31-0AA0 Key Features
| Brand: | Siemens |
|---|---|
| Part Number # : | 3VA5330-5EC31-0AA0 |
| SKU #: | 2384978 |
| Amperage Rating: | 300, 300 A |
| Dimensions: | 9.8 in H x 5.4 in W x 5.4 in D |
| Enclosure Type: | IP40 |
| Frame: | 3VA53 |
| Frequency Rating: | 50/60, 50/60 Hz |
| Interrupt Rating: | 18 kA at 600 V, 35 kA at 480 V, 85 kA at 240 V |
| Number of Poles: | 3 |
| Temperature Rating (Degrees F): | -40, -40 deg C |
| Trip Type: | Thermal Magnetic, Thermal/Magnetic |
| Type: | Low Voltage Molded Case |
| Country of origin: | CZ |
| Manufacturer Name: | Siemens |
| UNSPSC: | 39121601 |
| UPC: | 00804766793363 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$2567.31 / Each
Typical price:$4992.00 / Each
Quantity:
- Siemens Sentron Circuit Breaker, Low Voltage Molded Case, 600 V AC/500 V DC, 300 A, 50/60 Hz Frequency, 18 kA at 600 V, 35 kA at 480 V, 85 kA at 240 V Interrupt, 3VA53 Frame, Thermal Magnetic Trip, 3 Pole, IP40 Enclosure, -40 deg C, 9.8 in H x 5.4 in W x 5.4 in D Dimensions
3VA5330-5EC31-0AA0 Application
For switching power values in DC networks applications3VA5330-5EC31-0AA0 Item Features
- Without lugs
- 3VA53 frame with medium (class M) breaking capacity
- TM230 trip unit with fixed Ir adjustable Ii
3VA5330-5EC31-0AA0 Standards
CCC Marked|CE Marked|VDE Approved|EAC Approved|UL Listed|RCM Approved|DIN EN 81346-2|ECCN: EAR99|WEEE (2012/19/EU)SKU #2384978Part Number #3VA5330-5EC31-0AA0UNSPSC39121601UPC00804766793363
