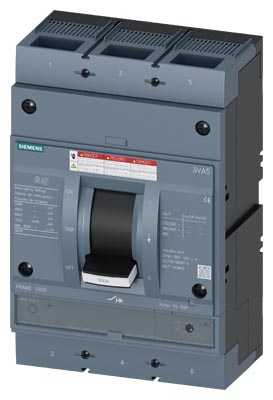

Siemens 3VA5560-6EC32-0AA0 Sentron Molded Case Circuit Breaker
Image Disclaimers Message
Siemens 3VA5560-6EC32-0AA0 Sentron Molded Case Circuit Breaker
Siemens 3VA5560-6EC32-0AA0 Sentron Molded Case Circuit Breaker
Part #:3VA5560-6EC32-0AA0
SKU #: 2386483
Key Features
Part #:3VA5560-6EC32-0AA0
SKU #: 2386483
Brand: Siemens
Amperage Rating: 600 A
Dimensions: 8.3 in W x 4.7 in D x 12.6 in H
Enclosure Type: IP40
Frame: 3VA55 800 A
Frequency Rating: 50/60 Hz
- Compliance with global standards and certifications
- Minimum space requirement thanks to the compact design
- Extensive selection of internal accessories (auxiliary and alarm switches, shunt trips), that are universal to the product line
- Power metering and communication capability with Modbus, PROFIBUS, PROFINET protocols
- Minimal effort for planning and configuration as a result of extensive CAD data
- Knowledge manager- technical information on a specific device can be accessed directly via QR code
- Without auxiliary releases and auxiliary alarm switches
Siemens 3VA5560-6EC32-0AA0 Sentron Molded Case Circuit Breaker
Sentron Molded Case Circuit Breaker, Low Voltage, 600 VAC/500 VDC, 600 A, 50/60 Hz Frequency, 25 kA at 600 V, 65 kA at 480 V, 100 kA at 240 V Interrupt, 3VA55 800 A Frame, TM230 Thermal Magnetic Trip, 3000 to 6000 A Trip, 3 Poles, Line/Load Side/Lug Terminal/Nut Keeper Connection, IP40 Enclosure, -25 to 70 deg C, 8.3 in W x 4.7 in D x 12.6 in H Dimensions
Additional Description: SIEM-3VA5560-6EC32-0AA0 BRKR 3VA55 3P 600A 65KA FTAM NUT
Catalog Description: SIEMENS LOW VOLTAGE 3VA UL MOLDED CASE CIRCUIT BREAKER WITH THERMAL - MAGNETIC TRIP UNIT. 3VA55 FRAME WITH MEDIUM (CLASS H) BREAKING CAPACITY. 600A 3-POLE (25KAIC AT 600V) (65KAIC AT 480V). TM230 TRIP UNIT WITH FIXED Ir ADJUSTABLE Ii. SPECIAL FEATURES CONNECTION WITH LUG TERMINAL / NUT KEEPER.. DIMENSIONS (W x H x D) IN 8.3 x 12.5 x 5.8.
