Part Number # 3VA5580-6EC36-2AA0
SKU # 2437141
3VA5580-6EC36-2AA0
Siemens 3VA5580-6EC36-2AA0 3VA5, 3, 600, 480 V, 800 A, 22kAIC at 600V, 65kAIC at 480V Interrupt, 3 Poles, TM230 Thermal Magnetic Trip
Part Number # 3VA5580-6EC36-2AA0
SKU # 2437141
Siemens 3VA5580-6EC36-2AA0 Key Features
| Brand: | Siemens |
|---|---|
| Part Number # : | 3VA5580-6EC36-2AA0 |
| SKU #: | 2437141 |
| Amperage Rating: | 800 A |
| Dimensions: | 12.5 in H x 8.3 in W x 5.8 in D |
| Frame: | 3VA55 |
| Interrupt Rating: | 22kAIC at 600V, 65kAIC at 480V |
| Number of Poles: | 3 |
| Series: | 3VA5 |
| Trip Type: | TM230 Thermal Magnetic, Thermal Magnetic |
| Type: | Low Voltage Molded Case |
| Connection type: | Lug |
| Country of origin: | CZ |
| Manufacturer Name: | Siemens |
| UNSPSC: | 39121601 |
| UPC: | 00195125359307 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
Siemens 3VA5580-6EC36-2AA0 3VA5, 3, 600, 480 V, 800 A, 22kAIC at 600V, 65kAIC at 480V Interrupt, 3 Poles, TM230 Thermal Magnetic Trip
Brand: Siemens
Part Number: 3VA5580-6EC36-2AA0
Additional Description: SIEM-3VA5580-6EC36-2AA0 C
Catalog Description: SIEMENS LOW VOLTAGE 3VA UL MOLDED CASE CIRCUIT BREAKER WITH THERMAL - MAGNETIC TRIP UNIT. 3VA55 FRAME WITH MEDIUM (CLASS H) BREAKING CAPACITY. 800A 3-POLE (22KAIC AT 600V) (65KAIC AT 480V). TM230 TRIP UNIT WITH FIXED Ir ADJUSTABLE Ii. SPECIAL FEATURES CONNECTION WITH ALUMINUM LUG. 100 PERCENT RATED. DIMENSIONS (W x H x D) IN 8.3 x 12.5 x 5.8.
3VA5580-6EC36-2AA0 Item Features
- 3VA55 Frame with Medium (Class H) Breaking Capacity
- Special Features Connection with Aluminum Lug
- 100 Percent Rated
3VA5580-6EC36-2AA0 Standards
UL Listed|RoHS directive Since: 12/17/2021|WEEE (2012/19/EU)|AL : N / ECCN : EAR99SKU #2437141Part Number #3VA5580-6EC36-2AA0UNSPSC39121601UPC00195125359307

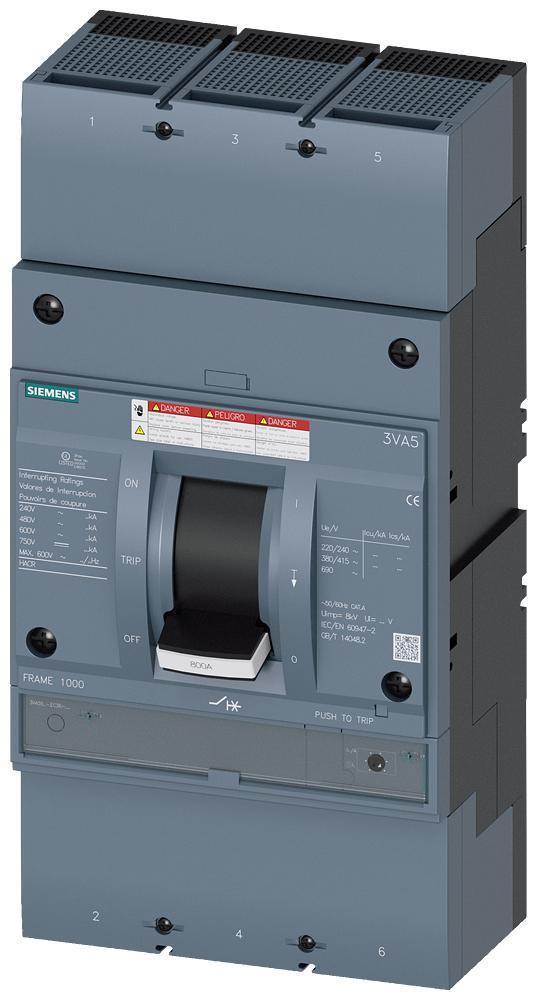

Image provided may only be a representation of final product and may include optional equipment
