Part Number # 3VA6340-6KP31-0AA0
SKU # 2414213
Image Disclaimers Message
Brand: Siemens
3VA6340-6KP31-0AA0

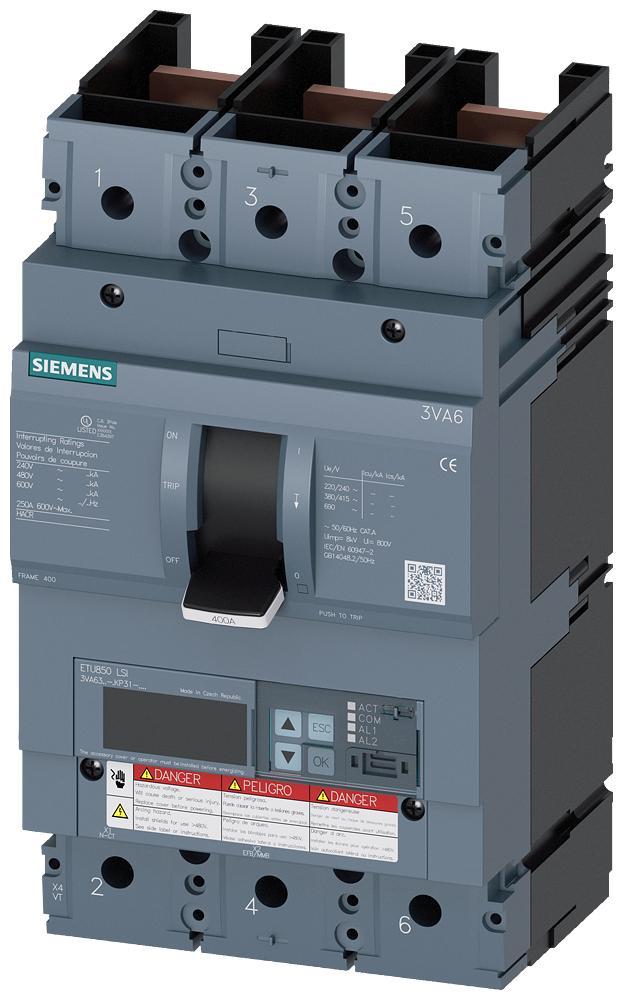

Siemens 3VA6340-6KP31-0AA0 Molded Case Circuit Breaker
Part Number # 3VA6340-6KP31-0AA0
SKU # 2414213
$6435.26 / Each
Typical price:$12513.00 / Each
Siemens 3VA6340-6KP31-0AA0 Key Features
| Brand: | Siemens |
|---|---|
| Part Number # : | 3VA6340-6KP31-0AA0 |
| SKU #: | 2414213 |
| Amperage Rating: | 400 A |
| Dimensions: | 5.4 in W x 4.3 in D x 9.8 in H, 9.76 in H x 5.43 in W x 5.41 in D |
| Enclosure Type: | IP40 |
| Frame: | 3VA63 400 A |
| Frequency Rating: | 50/60 Hz |
| Interrupt Rating: | 22 kA at 600 V, 65 kA at 480 V, 100 kA at 240 V, 64 kA |
| Number of Poles: | 3 |
| Series: | 3VA6 |
| Temperature Rating (Degrees F): | -25 to 70 deg C |
| Trip Range: | 600 to 4000 A |
| Trip Type: | ETU850 Electronic, Electronic |
| Type: | Low Voltage |
| Country of origin: | CZ |
| Mounting type: | Fixed |
| Manufacturer Name: | Siemens |
| UNSPSC: | 39121601 |
| UPC: | 00804766313066 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$6435.26 / Each
Typical price:$12513.00 / Each
Quantity:
- Siemens Molded Case Circuit Breaker, Series, 480, Amperage Rating V AC, A 400, Frequency Rating, Hz 50/60, 64 Interrupt, Frame kA, Electronic Trip, Trip Range, 3 Pole, Phase, Connection Type, Wire Size, Enclosure Type, Fixed Mount, Temperature Rating, deg C -25 to 70, 9.76 in H x 5.43 in W x 5.41 in D, Material, Finish
3VA6340-6KP31-0AA0 Application
For AC applications3VA6340-6KP31-0AA0 Item Features
- The new 3VA6 molded case circuit breakers reliably perform all the tasks required for circuit protection and protection of starter combinations
- Compact dimensions
- Modular and easy to fit internal accessories with diverse functions
- Increased breaking capacity
- Integrated metering function
- Connection to a communication system
- Retrofittable communication for ETU 5-series and 8-series
- Plug-in technology, draw-out technology
3VA6340-6KP31-0AA0 Standards
UL Listed|EAC Approved|CE Certified|CSA CertifiedSKU #2414213Part Number #3VA6340-6KP31-0AA0UNSPSC39121601UPC00804766313066
