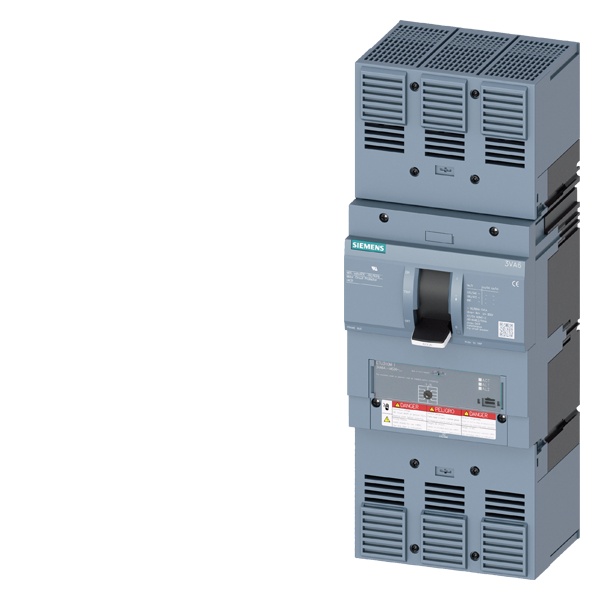

Part #:3VA6450-1MS36-0AA0
SKU #: 2426448
$3666.86/EA
Key Features
Part #:3VA6450-1MS36-0AA0
SKU #: 2426448
Brand: Siemens
Amperage Rating: 500 A
Dimensions: 5.4 in W x 4.3 in D x 9.8 in H
Enclosure Type: IP40
Frame: 3VA64 600 A
Frequency Rating: 50/60 Hz
$3666.86/EA
- Compliance with global standards and certifications
- Minimum space requirement thanks to the compact design
- Extensive selection of internal accessories (auxiliary and alarm switches, shunt trips), that are universal to the product line
- Power metering and communication capability with Modbus, PROFIBUS, PROFINET protocols
- Minimal effort for planning and configuration as a result of extensive CAD data
- Knowledge manager- technical information on a specific device can be accessed directly via QR code
- Without auxiliary releases and auxiliary alarm switches
Specifications
Brand: Siemens
Amperage Rating: 500 A
Dimensions: 5.4 in W x 4.3 in D x 9.8 in H
Enclosure Type: IP40
Frame: 3VA64 600 A
Frequency Rating: 50/60 Hz
Interrupt Rating: 100 kA at 480 V
Number of Poles: 3
Temperature Rating (Degrees F): -25 to 70 deg C
Trip Range: 1500 to 6000 A
Trip Type: ETU310M Electronic
Type: Low Voltage
Voltage Rating: 600 VAC
Connection type: Aluminum Lug/Line/Load Side
Country of origin: CZ
Manufacturer Name: Siemens
UNSPSC: 39121601
UPC: 00804766721762
Item FeaturesHospitals, Logistics Centers, Office Complexes, Airports, Residential Buildings, Machine Building, Industrial Parks, Presses, Wastewater Treatment Facilities, Production Lines, Production and Process Automation Industrial Applications
Item Features
Item FeaturescULus Listed|ECCN EAR99|IEC 81346-2 Q|REACH Compliant|RoHS Compliant|UL Listed|WEEE 2012/19/EU
