Part Number # 3VA6460-5KL31-0AA0
SKU # 2446118
3VA6460-5KL31-0AA0
Siemens 3VA6460-5KL31-0AA0
Part Number # 3VA6460-5KL31-0AA0
SKU # 2446118
Siemens 3VA6460-5KL31-0AA0 Key Features
| Brand: | Siemens |
|---|---|
| Part Number # : | 3VA6460-5KL31-0AA0 |
| SKU #: | 2446118 |
| Dimensions: | 9.76 in H x 5.43 in W x 5.41 in D |
| Series: | 3VA6 |
| UNSPSC: | 39121601 |
| UPC: | 00804766315930 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
Siemens 3VA6460-5KL31-0AA0
Brand: Siemens
Part Number: 3VA6460-5KL31-0AA0
Siemens Molded Case Circuit Breaker, Series, 480, Amperage Rating VAC, A 600, Frequency Rating, Hz 50/60, 35 Interrupt, Frame kA, Electronic Trip, Trip Range, 3 Pole, Phase, Connection Type, Wire Size, Enclosure Type, Fixed Mount, Temperature Rating, deg C -25 to 70, 9.76 in H x 5.43 in W x 5.41 in D, Material, Finish
Additional Description: SIEM-3VA6460-5KL31-0AA0 BRKR 3VA64 3P 600A 35KA ETU8-LI
Catalog Description: SIEMENS LOW VOLTAGE 3VA UL MOLDED CASE CIRCUIT BREAKER WITH ELECTRONIC TRIP UNIT. 3VA64 FRAME WITH MEDIUM (CLASS M) BREAKING CAPACITY. 600A 3-POLE (18KAIC AT 600V) (35KAIC AT 480V). ETU820 TRIP UNIT LCD LI WITH METERING. SPECIAL FEATURES WITHOUT LUGS. DIMENSIONS (W x H x D) IN 5.4 x 9.8 x 5.4.
3VA6460-5KL31-0AA0 Application
For AC applications3VA6460-5KL31-0AA0 Item Features
- The new 3VA6 molded case circuit breakers reliably perform all the tasks required for circuit protection and protection of starter combinations
- Compact dimensions
- Modular and easy to fit internal accessories with diverse functions
- Increased breaking capacity
- Integrated metering function
- Connection to a communication system
- Retrofittable communication for ETU 5-series and 8-series
- Plug-in technology, draw-out technology
3VA6460-5KL31-0AA0 Standards
ULSKU #2446118Part Number #3VA6460-5KL31-0AA0UNSPSC39121601UPC00804766315930

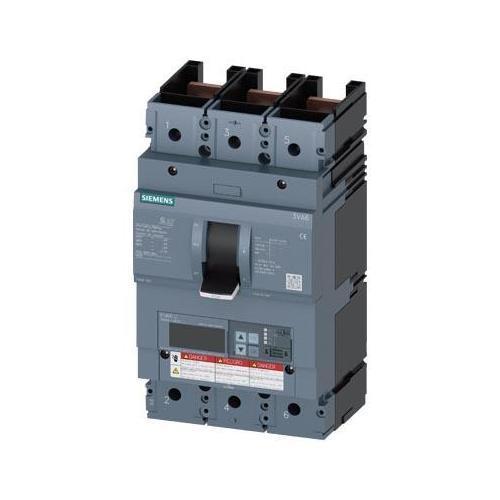

Image provided may only be a representation of final product and may include optional equipment
