Brand: Siemens

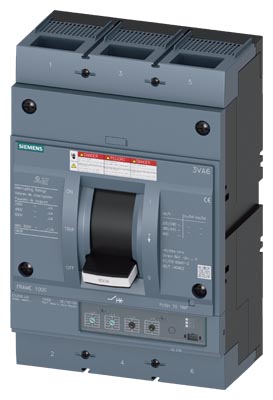

Siemens 3VA6580-5HM32-0AA0 Sentron Molded Case Circuit Breaker
Image Disclaimers Message
Brand: Siemens
Siemens 3VA6580-5HM32-0AA0 Sentron Molded Case Circuit Breaker
Brand: Siemens
Siemens 3VA6580-5HM32-0AA0 Sentron Molded Case Circuit Breaker
Part #:3VA6580-5HM32-0AA0
SKU #: 2399493
$5657.66/EA
Key Features
Part #:3VA6580-5HM32-0AA0
SKU #: 2399493
Brand: Siemens
Amperage Rating: 800 A
Dimensions: 8.3 in W x 4.7 in D x 12.6 in H
Enclosure Type: IP40
Frame: 3VA65 800 A
Frequency Rating: 50/60 Hz
$5657.66/EA
- Compliance with global standards and certifications
- Minimum space requirement thanks to the compact design
- Extensive selection of internal accessories (auxiliary and alarm switches, shunt trips), that are universal to the product line
- Power metering and communication capability with Modbus, PROFIBUS, PROFINET protocols
- Minimal effort for planning and configuration as a result of extensive CAD data
- Knowledge manager- technical information on a specific device can be accessed directly via QR code
- Without auxiliary releases and auxiliary alarm switches
Specifications
Brand: Siemens
Amperage Rating: 800 A
Dimensions: 8.3 in W x 4.7 in D x 12.6 in H
Enclosure Type: IP40
Frame: 3VA65 800 A
Frequency Rating: 50/60 Hz
Interrupt Rating: 25 kA at 600 V, 35 kA at 480 V, 100 kA at 240 V
Number of Poles: 3
Temperature Rating (Degrees F): -25 to 70 deg C
Trip Range: 1200 to 8000 A
Trip Type: ETU330 Electronic
Type: Low Voltage
Voltage Rating: 600 VAC
Connection type: Line/Load Side/Lug Terminal/Nut Keeper
Country of origin: CZ
Manufacturer Name: Siemens
UNSPSC: 39121601
UPC: 00804766979569
Item FeaturesHospitals, Logistics Centers, Office Complexes, Airports, Residential Buildings, Machine Building, Industrial Parks, Presses, Wastewater Treatment Facilities, Production Lines, Production and Process Automation Industrial Applications
Item Features
Item FeaturesCE Certified|CSA Certified|cULus Listed|EAC Compliant|ECCN EAR99|IEC 81346-2 Q|REACH Compliant|RCM Certified|RoHS Compliant|UL Listed|WEEE 2012/19/EU
