Part Number # 3VA6610-5HN32-0AA0
SKU # 2385755
3VA6610-5HN32-0AA0

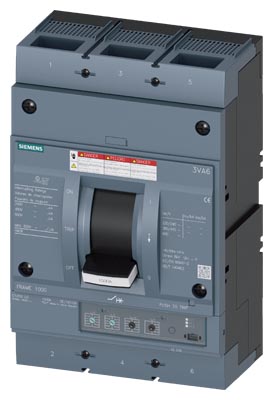

Siemens 3VA6610-5HN32-0AA0 Sentron Molded Case Circuit Breaker
Part Number # 3VA6610-5HN32-0AA0
SKU # 2385755
Siemens 3VA6610-5HN32-0AA0 Key Features
| Brand: | Siemens |
|---|---|
| Part Number # : | 3VA6610-5HN32-0AA0 |
| SKU #: | 2385755 |
| Interrupt Rating: | 25 kA at 600 V, 35 kA at 480 V, 100 kA at 240 V |
| Trip Range: | 1500 to 10000 A |
| UNSPSC: | 39121601 |
| UPC: | 00804766980343 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
Siemens 3VA6610-5HN32-0AA0 Sentron Molded Case Circuit Breaker
Brand: Siemens
Part Number: 3VA6610-5HN32-0AA0
Sentron Molded Case Circuit Breaker, Low Voltage, 600 VAC, 1000 A, 50/60 Hz Frequency, 25 kA at 600 V, 35 kA at 480 V, 100 kA at 240 V Interrupt, 3VA66 1000 A Frame, ETU350 Electronic Trip, 1500 to 10000 A Trip, 3 Poles, Line/Load Side/Lug Terminal/Nut Keeper Connection, IP40 Enclosure, -25 to 70 deg C, 8.3 in W x 4.7 in D x 12.6 in H Dimensions
Additional Description: SIEM-3VA6610-5HN32-0AA0 BRKR 3VA66 3P 1000A 35KA ETU3-LSI NUT
Catalog Description: SIEMENS LOW VOLTAGE 3VA UL MOLDED CASE CIRCUIT BREAKER WITH ELECTRONIC TRIP UNIT. 3VA66 FRAME WITH MEDIUM LOW (CLASS M) BREAKING CAPACITY. 1000A 3-POLE (18KAICAT 600V) (35KAIC AT 480V). ETU350 TRIP UNIT LSI. SPECIAL FEATURES CONNECTION WITH LUG TERMINAL / NUT KEEPER.. DIMENSIONS (W x H x D) IN 8.3 x 12.5 x 5.8.
3VA6610-5HN32-0AA0 Application
Hospitals, Logistics Centers, Office Complexes, Airports, Residential Buildings, Machine Building, Industrial Parks, Presses, Wastewater Treatment Facilities, Production Lines, Production and Process Automation Industrial Applications3VA6610-5HN32-0AA0 Item Features
- Compliance with global standards and certifications
- Minimum space requirement thanks to the compact design
- Extensive selection of internal accessories (auxiliary and alarm switches, shunt trips), that are universal to the product line
- Power metering and communication capability with Modbus, PROFIBUS, PROFINET protocols
- Minimal effort for planning and configuration as a result of extensive CAD data
- Knowledge manager- technical information on a specific device can be accessed directly via QR code
- Without auxiliary releases and auxiliary alarm switches
3VA6610-5HN32-0AA0 Standards
CE Certified|CSA Certified|cULus Listed|EAC Compliant|ECCN EAR99|IEC 81346-2 Q|REACH Compliant|RCM Certified|RoHS Compliant|UL Listed|WEEE 2012/19/EUSKU #2385755Part Number #3VA6610-5HN32-0AA0UNSPSC39121601UPC00804766980343
Image provided may only be a representation of final product and may include optional equipment
