Siemens 3VA6610-6HL32-0AA0 Sentron Molded Case Circuit Breaker
Part Number # 3VA6610-6HL32-0AA0
SKU # 2386498

3VA6610-6HL32-0AA0
Siemens 3VA6610-6HL32-0AA0 Sentron Molded Case Circuit Breaker
Part Number # 3VA6610-6HL32-0AA0
SKU # 2386498
Siemens 3VA6610-6HL32-0AA0 Key Features
| Brand: | Siemens |
|---|---|
| Part Number # : | 3VA6610-6HL32-0AA0 |
| SKU #: | 2386498 |
| Trip Range: | 1500 to 10000 A |
| UNSPSC: | 39121601 |
| UPC: | 00804766980480 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
Prices are in USD. Orders shipped to Canada may be subject to duties, taxes and brokerage fees, collected by the carrier on delivery.
Siemens 3VA6610-6HL32-0AA0 Sentron Molded Case Circuit Breaker
Brand: Siemens
Part Number: 3VA6610-6HL32-0AA0
Siemens Molded Case Circuit Breaker, Low Voltage, 600 V AC, 1000 A, 50/60 Hz Frequency, 35 kA at 600 V, 65 kA at 480 V, 150 kA at 240 V Interrupt, 3VA66 1000 A Frame, Electronic Trip, 1500 to 10000 A Trip, 3 Poles, Line/Load Side/Lug Terminal/Nut Keeper Connection, IP40 Enclosure, -25 to 70 deg C, 8.3 in W x 4.7 in D x 12.6 in H Dimensions
Additional Description: SIEM-3VA6610-6HL32-0AA0 BRKR 3VA66 3P 1000A 65KA ETU3-LI NUT
Catalog Description: SIEMENS LOW VOLTAGE 3VA UL MOLDED CASE CIRCUIT BREAKER WITH ELECTRONIC TRIP UNIT. 3VA66 FRAME WITH MEDIUM (CLASS H) BREAKING CAPACITY. 1000A 3-POLE (22KAIC AT 600V) (65KAIC AT 480V). ETU320 TRIP UNIT LI. SPECIAL FEATURES CONNECTION WITH LUG TERMINAL / NUT KEEPER.. DIMENSIONS (W x H x D) IN 8.3 x 12.5 x 5.8.
3VA6610-6HL32-0AA0 Application
Hospitals, Logistics Centers, Office Complexes, Airports, Residential Buildings, Machine Building, Industrial Parks, Presses, Wastewater Treatment Facilities, Production Lines, Production and Process Automation Industrial Applications3VA6610-6HL32-0AA0 Item Features
- Compliance with global standards and certifications
- Minimum space requirement thanks to the compact design
- Extensive selection of internal accessories (auxiliary and alarm switches, shunt trips), that are universal to the product line
- Power metering and communication capability with Modbus, PROFIBUS, PROFINET protocols
- Minimal effort for planning and configuration as a result of extensive CAD data
- Knowledge manager- technical information on a specific device can be accessed directly via QR code
- Without auxiliary releases and auxiliary alarm switches
3VA6610-6HL32-0AA0 Standards
CE Certified|CSA Certified|cULus Listed|EAC Compliant|ECCN EAR99|IEC 81346-2 Q|REACH Compliant|RCM Certified|RoHS Compliant|UL Listed|WEEE 2012/19/EUSKU #2386498Part Number #3VA6610-6HL32-0AA0UNSPSC39121601UPC00804766980480

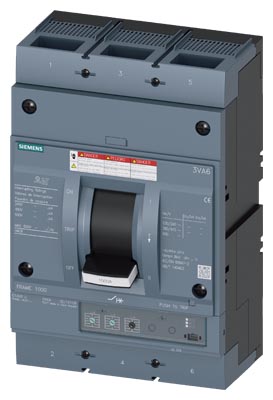

Image provided may only be a representation of final product and may include optional equipment
