Part Number # 3VA9474-0JJ23
SKU # 2418340
Image Disclaimers Message
3VA9474-0JJ23

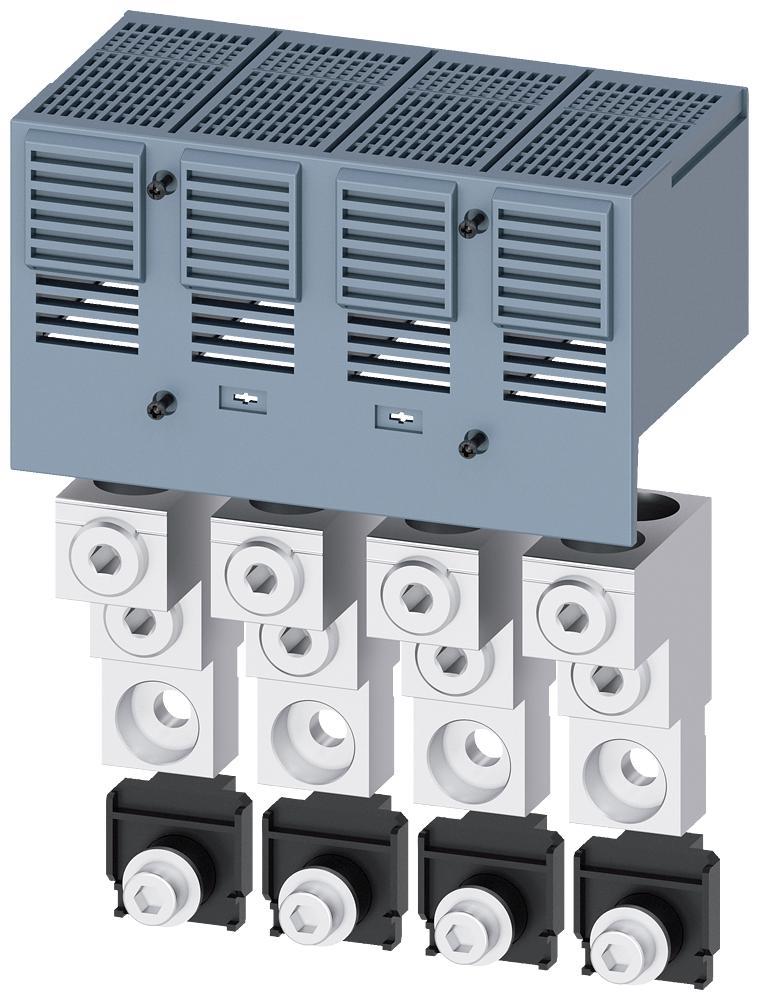

Siemens 3VA9474-0JJ23 Wire Connector
Part Number # 3VA9474-0JJ23
SKU # 2418340
Siemens 3VA9474-0JJ23 Key Features
| Brand: | Siemens |
|---|---|
| Part Number # : | 3VA9474-0JJ23 |
| SKU #: | 2418340 |
| Suitable For Use With: | 3VA63 at 400 A, 3VA64 at 600 A Molded Case Circuit Breaker |
| Type: | 4-Pole 2-Cable |
| Country of origin: | US |
| Height: | 98.8 mm |
| Length: | 103.8 mm |
| Material: | Aluminum/Copper |
| Width: | 184 mm |
| Manufacturer Name: | Siemens |
| UNSPSC: | 39121601 |
| UPC: | 00804766325854 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
Siemens 3VA9474-0JJ23 Wire Connector
Brand: Siemens
Part Number: 3VA9474-0JJ23
Siemens Wire Connector, 4-Poles 2-Cable, 2/0 AWG to 600 kcmil Conductor, For Use With: 3VA63 at 400 A, 3VA64 at 600 A Molded Case Circuit Breaker, 103.8 mm Length, 184 mm Width, 98.8 mm Height, Aluminum/Copper
Additional Description: SIEM-3VA9474-0JJ23 BREAKER 3VA5,6 400600A 2 WIRE AL LUG 4PC
Catalog Description: BREAKER 3VA Large wire connector FOR 3VA63 at 400A and 3VA64 at 600A 4 POLES TWO WIRES CONNECTION ALUMINUM CONNECTION OF CU AL CABLE 4 SINGLE TERMINALS AND 1 EXTENDED TERMINAL COVER INCLUDED
3VA9474-0JJ23 Includes
(4) Single Terminal, Extended Terminal Cover3VA9474-0JJ23 Standards
UL Listed|CE|CSA Certified|EAC ApprovedSKU #2418340Part Number #3VA9474-0JJ23UNSPSC39121601UPC00804766325854
