Part Number # 5SJ4350-7HG41
SKU # 2328620
5SJ4350-7HG41
Siemens 5SJ4350-7HG41 Sentron Miniature Circuit Breaker
Part Number # 5SJ4350-7HG41
SKU # 2328620
Siemens 5SJ4350-7HG41 Key Features
| Brand: | Siemens |
|---|---|
| Part Number # : | 5SJ4350-7HG41 |
| SKU #: | 2328620 |
| UNSPSC: | 39121601 |
| UPC: | 00754554939162 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
Siemens 5SJ4350-7HG41 Sentron Miniature Circuit Breaker
Brand: Siemens
Part Number: 5SJ4350-7HG41
Siemens Sentron Miniature Circuit Breaker, Type NSJ, 240 VAC, 50 A, 50 Hz Frequency, 14 kA Interrupt, Thermal/Magnetic Trip, 3 Pole, 3 ph, Handle Actuator, Line/Load/Screw Connection, 14 to 4 AWG Wire, IP20 Enclosure, DIN Rail Mounting, -25 to 55 deg C, 110 mm H x 54 mm W x 70 mm D Dimensions
Additional Description: SIEM-5SJ4350-7HG41 MCB 5SJ4 3P 240V 50A 10K C-TRIP NSJ
Catalog Description: CIRCUIT BREAKER 240V 10KA, 3-POLE, C, 50A, D=70MM ACC. TO UL 489
5SJ4350-7HG41 Application
Branch Circuit Protection Applications5SJ4350-7HG41 Item Features
- 40 deg C calibration base (industrial applications)
- 30 deg C calibration base
- Can be used for field wiring applications 14 to 4 AWG copper only
- Suitable for reverse feed applications
- C-trip is designed for general device protection in control circuits and all other miniature circuit breaker systems, magnetic trip point is 5 to 10 times the MCB rating
- 0.75 to 35 sq-mm solid and stranded conductors
- Visible indicator for on and off/trip
- Touch protection to EN50274
- Identical wire screw connections on line and load side
- Smaller size than traditional MCCBs
- 35 mm DIN standard mounting rail
5SJ4350-7HG41 Standards
UL 489, CSA 22.2 NO. 5-02, HACR, IEC/EN 60 898, IEC/EN 60 947-2SKU #2328620Part Number #5SJ4350-7HG41UNSPSC39121601UPC00754554939162

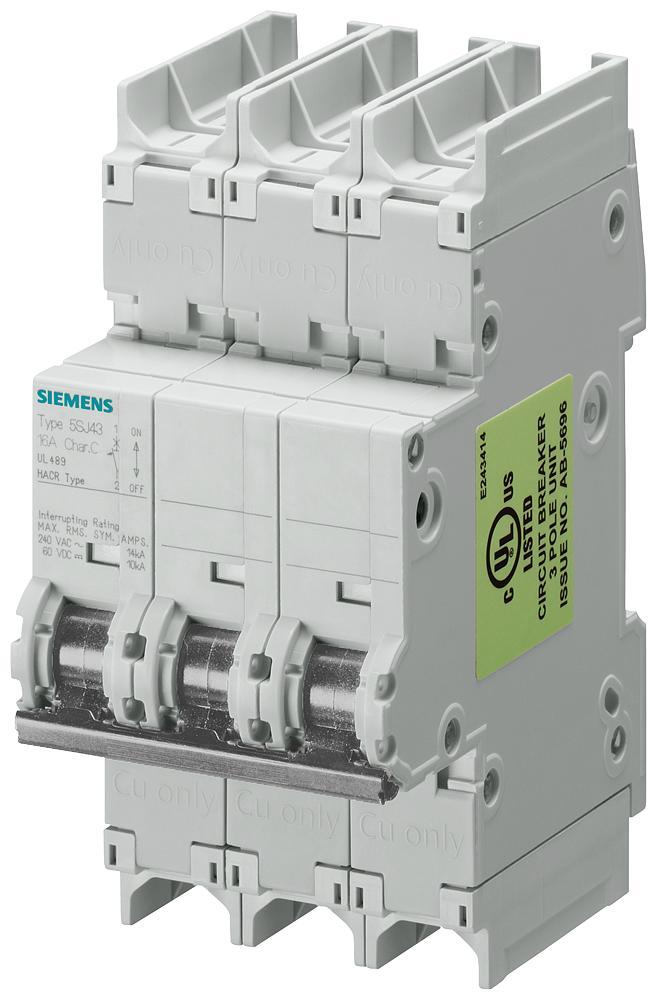

Image provided may only be a representation of final product and may include optional equipment
