- Fast mounting on DIN rail with click connection or on mounting plate with 2 x M5 screws
- Place saving
- Safety because of IP20 degree of protection and no cap to open or remove
Specifications
Brand: Siemens
Amperage Rating: 125 A
Dimensions: 49 mm H x 27 mm W x 74 mm D
Number of Poles: 1
Voltage Rating: 600, 600 VAC
Country of origin: DE
Material: Thermoplastic
Manufacturer Name: Siemens
UNSPSC: 39121601
UPC: 00887621423841

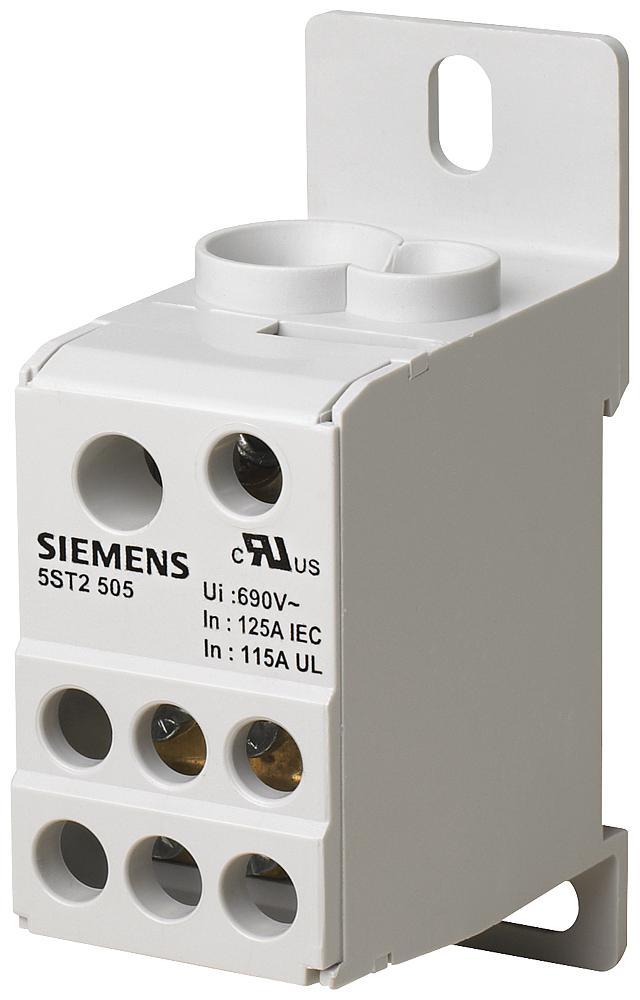

Siemens 5ST2505 Distribution Block
Siemens Distribution Block, 600 VAC, 125 A, 1 Pole, Thermoplastic, 49 mm H x 27 mm W x 74 mm D
Additional Description: SIEM-5ST2505 (N) DISTRIB. BOARD BLOCK 1-POLE,125A, 600V NON-CANCELABLE, NON-RETURNABLE
Catalog Description: DISTRIB.BOARD BLOCK 1-POLE,125A 690V, INPUT 1X10-35+1X6-16SQMM OUTPUT 6X2,5-16SQMM FOR DIN RAIL MOUNTING
Item Features
Item FeaturesUL 1059|UL 486E|IEC 60947-7-1|UL File No. E80027/XCFR2|C22.2 No. 158 -1987/XCFR8|WEEE (2012/19/EU)
