Part Number # 5SY1705-2
SKU # 2389198
5SY1705-2
Siemens 5SY1705-2 Device Circuit Breaker
Part Number # 5SY1705-2
SKU # 2389198
Siemens 5SY1705-2 Key Features
| Brand: | Siemens |
|---|---|
| Part Number # : | 5SY1705-2 |
| SKU #: | 2389198 |
| Interrupt Rating: | 3 kA at 230 VAC, 3.5 kA at 60 VDC |
| UNSPSC: | 39121601 |
| UPC: | 00804766934285 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
Siemens 5SY1705-2 Device Circuit Breaker
Brand: Siemens
Part Number: 5SY1705-2
Siemens Device Circuit Breaker, 230 VAC/60 VDC, 0.5 A, 50/60 Hz Frequency, 3 kA at 230 VAC, 3.5 kA at 60 VDC Interrupt, Thermal/Magnetic Trip, 1 Pole, 1 ph ph
Additional Description: SIEM-5SY1705-2 (N) DEVICE CIRCUIT BREAKER 1 POLE NON-CANCELABLE, NON-RETURNABLE
Catalog Description: Device circuit breaker 1-pole with auxiliary switch NO contact Characteristic F1 0.5A 230 V AC 50/60 Hz 60 V DC Icn 3 kA AC according to IEC 60934
5SY1705-2 Application
Industrial PC, Measuring Instruments and Controllers5SY1705-2 Item Features
- Circuit breakers for equipment electromechanical
- Single-phase with auxiliary switch with 1NO in 1 MW saves 0.5 MW in the distributor
- Integrated auxiliary switch saves installation time
- High short-circuit values
- Clear position indicator with handle (on/off)
- Defined current ratings for more line safety
- Short circuit and overload detection in one unit
- Screw terminal with field wiring class FW=3 according to UL 1077
- Optimized for tripping in DC control circuit up to 60 VDC
- Use of standard-busbars from MCB possible
- Extended function for railway application
- Robust design for industrial applications
- Circuit breakers with F1-characteristic release quickly therefore, they react very fast to overloading situations
- The therminal tripping is by F1 and F2 the same
5SY1705-2 Standards
IEC 60934SKU #2389198Part Number #5SY1705-2UNSPSC39121601UPC00804766934285

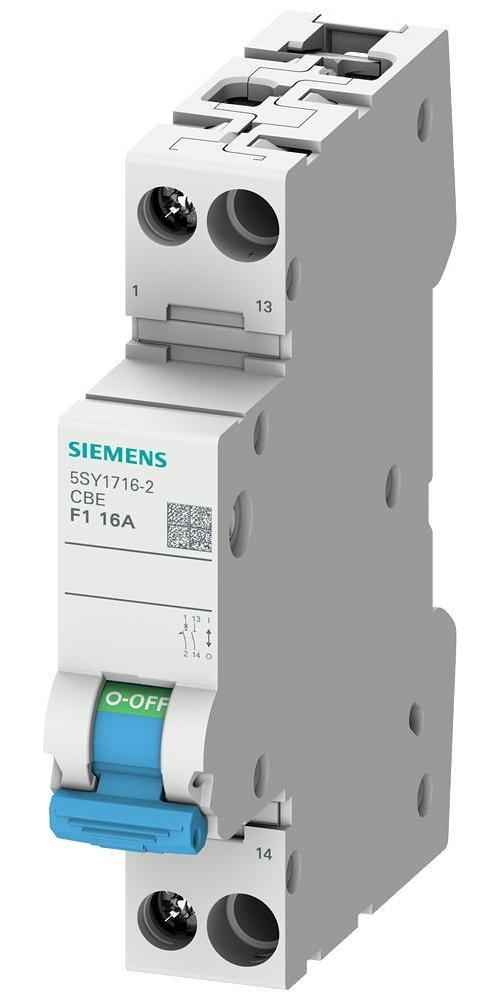

Image provided may only be a representation of final product and may include optional equipment
