- Excellent current limiting and selectivity characteristics
- Terminals offer protection against contact with fingers or the back of the hand according to the German accident prevention regulations VBG 4/BGV A2
- Combined terminals enable a simultaneous connection of busbars and feeder cables
- Uniform components that can be quickly mounted individually
- The handle locking device virtually prevents any unauthorized operation of the handle
- Rapid connection of the feeder cable in front of the busbar
- Identical terminals at both sides for an optional infeed from the top or the bottom
- Identical wire screw connections on line and load side
- No tool required for mounting or dismounting
- Supports a fast and comfortable removal from the assembly
- Trip indication
- Type D characteristic is designed for high inrush loads
- 35 mm DIN rail mounting
- Magnetic trip point - 10 to 20 times in rating
- Thermal trip point - 1.13 to 1.45 protector rating
Specifications
Brand: Siemens
Amperage Rating: 2, 2 A
Dimensions: 90 mm H x 18 mm W x 70 mm D
Enclosure Type: IP20
Frequency Rating: 50, 50 Hz
Interrupt Rating: 5, 5 kA
Number of Poles: 1
Temperature Rating (Degrees F): -25 to 45, -25 to 45 deg C
Trip Type: Thermal Magnetic, Thermal/Magnetic
Type: Miniature
Voltage Rating: 480, 480 VAC
Wire Size: 14 to 4, 14 to 4 AWG
Connection type: Screw
Country of origin: DE
Mounting type: DIN Rail
Manufacturer Name: Siemens
UNSPSC: 39121601
UPC: 00754554875064

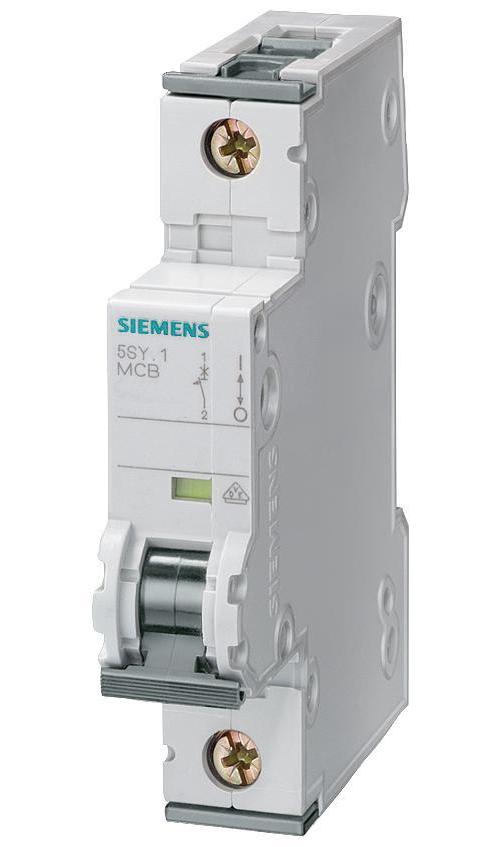

Siemens 5SY4102-8 Supplementary Protector
Siemens Supplementary Protector, Miniature, 480 VAC, 2 A, 50 Hz Frequency, 5 kA Interrupt, Thermal/Magnetic Trip, 1 Pole, Screw Connection, 14 to 4 AWG Wire, IP20 Enclosure, DIN Rail Mounting, -25 to 45 deg C, 90 mm H x 18 mm W x 70 mm D Dimensions
Additional Description: SIEM-5SY4102-8 SUP PTOR 5SY4 1P 240V 2A 7.5K D-TRIP
Catalog Description: SUPPLEMENTARY PROTECTOR,1P,2A,CURVE D Supplementary Protector, UL1077 Rated, IEC Mini Circuit Breaker, 1 Pole, 2 Amps, 277 VAC, Trip Characteristic Curve D, 18mm Width, 70mm Depth, UL File E116386 in Vol. 1 Sec. 2
Item FeaturesIndustrial and Plant Engineering Applications
Item Features
Item FeaturesCE Marked|cULus Listed|CSA 22.2 No. 235|EN 60 898|IEC/EN 60 947-2|UL 1077 File No. E116386
