Part Number # 5SY41055
SKU # 2281899
Image Disclaimers Message
Brand: Siemens
5SY41055

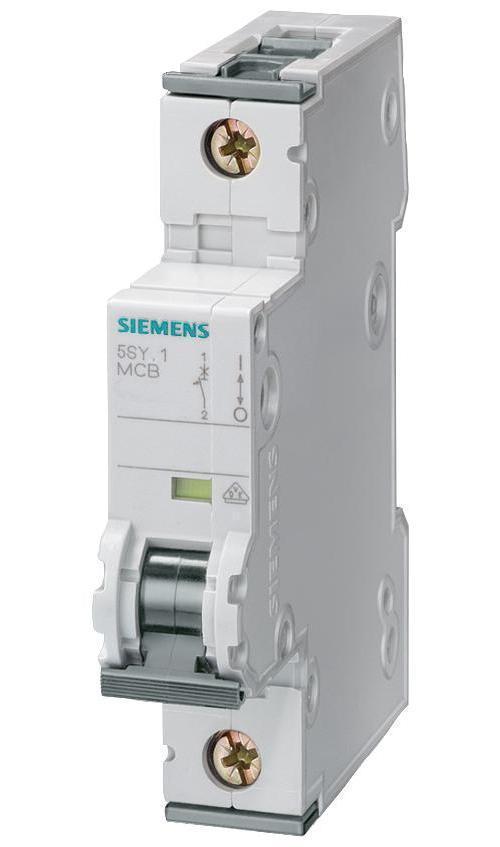

Siemens 5SY41055 Sentron Supplementary Protector
Part Number # 5SY41055
SKU # 2281899
$36.51 / Each
Typical price:$142.00 / Each
Siemens 5SY41055 Key Features
| Brand: | Siemens |
|---|---|
| Part Number # : | 5SY41055 |
| SKU #: | 2281899 |
| Amperage Rating: | 0.5, 0.5 A |
| Dimensions: | 90 mm H x 18 mm W x 70 mm D |
| Enclosure Type: | IP20 |
| Frequency Rating: | 50, 50 Hz |
| Interrupt Rating: | 5, 5 kA |
| Number of Poles: | 1 |
| Temperature Rating (Degrees F): | -25 to 45, -25 to 45 deg C |
| Trip Type: | Thermal Magnetic, Thermal/Magnetic |
| Type: | Miniature |
| Wire Size: | 14 to 4, 14 to 4 AWG |
| Connection type: | Screw |
| Country of origin: | DE |
| Mounting type: | DIN Rail |
| Manufacturer Name: | Siemens |
| UNSPSC: | 39121601 |
| UPC: | 00754554942629 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$36.51 / Each
Typical price:$142.00 / Each
Quantity:
- Sentron Supplementary Protector, Miniature, 480 V AC, 0.5 A, 50 Hz Frequency, 5 kA Interrupt, Thermal Magnetic Trip, 1 Pole, Screw Connection, 14 to 4 AWG Wire, IP20 Enclosure, DIN Rail Mounting, -25 to 45 deg C, 90 mm H x 18 mm W x 70 mm D Dimensions
5SY41055 Application
Supplementary Protection Applications5SY41055 Item Features
- Excellent current limiting and selectivity characteristics
- Terminals offer protection against contact with fingers or the back of the hand according to the German accident prevention regulations VBG 4/BGV A2
- Combined terminals enable a simultaneous connection of busbars and feeder cables
- Uniform components that can be quickly mounted individually
- The handle locking device virtually prevents any unauthorized operation of the handle
- Rapid connection of the feeder cable in front of the busbar
- Identical terminals at both sides for an optional infeed from the top or the bottom
- Identical wire screw on line and load side
- No tool required for mounting or dismounting
- Supports a fast and comfortable removal from the assembly
- Trip indication
- Type A characteristic is designed to protect very sensitive circuits such as semi-conductors
- 35 mm DIN Rail mounting
- Magnetic trip point - 2 to 3 times in rating
- Thermal trip point - 1.13 to 1.45 protector rating
5SY41055 Standards
CE Certified|cULus Listed|CSA 22.2 No. 235|EN 60898|IEC/EN 60947-2|UL 1077 File No E116386SKU #2281899Part Number #5SY41055UNSPSC39121601UPC00754554942629
