Part Number # 5SY4108-8
SKU # 2191893
Image Disclaimers Message
5SY4108-8

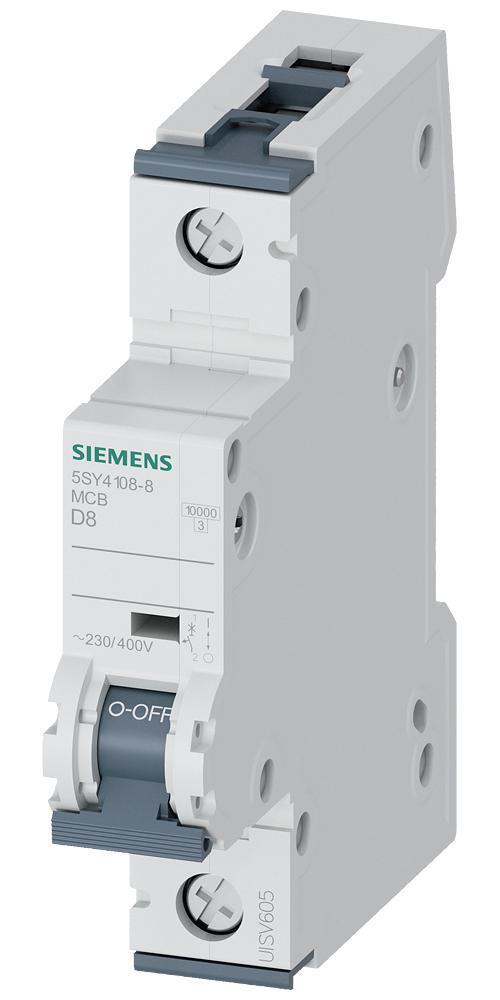

Siemens 5SY4108-8 Sentron Supplementary Protector
Part Number # 5SY4108-8
SKU # 2191893
$38.54 / Each
Typical price:$142.00 / Each
Siemens 5SY4108-8 Key Features
| Brand: | Siemens |
|---|---|
| Part Number # : | 5SY4108-8 |
| SKU #: | 2191893 |
| Amperage Rating: | 8, 8 A |
| Dimensions: | 90 mm H x 18 mm W x 76 mm D |
| Enclosure Type: | IP20 |
| Frame: | 5SY4 |
| Frequency Rating: | 50, 50 Hz |
| Interrupt Rating: | 10, 10 kA |
| Number of Poles: | 1 |
| Temperature Rating (Degrees F): | -25 to 55, -25 to 55 deg C |
| Trip Range: | 9.04 to 11.6, 9.04 to 11.6 A |
| Trip Type: | Thermal Magnetic, Thermal/Magnetic |
| Type: | Miniature |
| Wire Size: | 14 to 4, 14 to 4 AWG |
| Connection type: | Line/Load Side/Screw |
| Country of origin: | DE |
| Mounting type: | DIN Rail |
| Manufacturer Name: | Siemens |
| UNSPSC: | 39121601 |
| UPC: | 00754554875491 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$38.54 / Each
Typical price:$142.00 / Each
Quantity:
- Siemens Sentron Supplementary Protector, Miniature, 480 V AC, 8 A, 50 Hz Frequency, 10 kA Interrupt, 5SY4 Frame, Thermal Magnetic Trip, 9.04 to 11.6 A Trip, 1 Pole, Line/Load Side/Screw Connection, 14 to 4 AWG Wire, IP20 Enclosure, DIN Rail Mounting, -25 to 55 deg C, 90 mm H x 18 mm W x 76 mm D Dimensions
5SY4108-8 Application
Supplementary Protection Applications5SY4108-8 Item Features
- Type D characteristic is designed for high inrush loads
- Identical wire screw connections on line and load side
- 70 mm D installation
- Quick assembly system mounting
- 10 to 20 times magnetic trip point rating
- 1.13 to 1.45 thermal trip point protector rating
5SY4108-8 Standards
UL 1077, CSA 22.2 NO. 235, CE, EN 60 898, IEC/EN 60 947-2SKU #2191893Part Number #5SY4108-8UNSPSC39121601UPC00754554875491
