Part Number # 5SY4120-8
SKU # 1022491
5SY4120-8

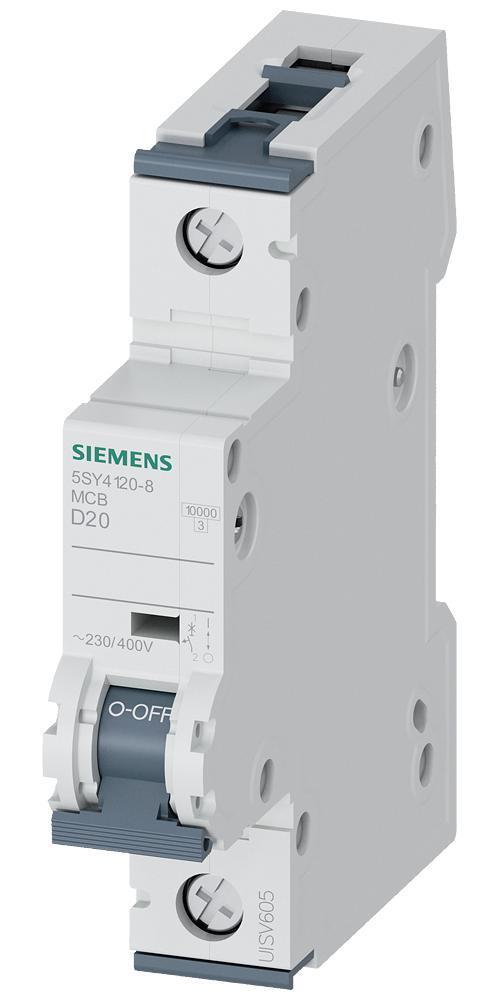

Siemens 5SY4120-8 Sentron Supplementary Protector
Part Number # 5SY4120-8
SKU # 1022491
Siemens 5SY4120-8 Key Features
| Brand: | Siemens |
|---|---|
| Part Number # : | 5SY4120-8 |
| SKU #: | 1022491 |
| Frame: | 5SY4 |
| Trip Range: | 22.6 to 29, 22.6 to 29 A |
| UNSPSC: | 39121601 |
| UPC: | 00754554875538 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
Siemens 5SY4120-8 Sentron Supplementary Protector
Brand: Siemens
Part Number: 5SY4120-8
Siemens Sentron Supplementary Protector, Miniature, 480 VAC, 20 A, 50 Hz Frequency, 10 kA Interrupt, 5SY4 Frame, Thermal/Magnetic Trip, 22.6 to 29 A Trip, 1 Pole, Line/Load Side/Screw Connection, 14 to 4 AWG Wire, IP20 Enclosure, DIN Rail Mounting, -25 to 45 deg C, 90 mm H x 18 mm W x 70 mm D Dimensions
Additional Description: SIEM-5SY4120-8 SUP PTOR 5SY4 1P 240V 20A 7.5K D-TRIP
Catalog Description: SUPPLEMENTARY PROTECTOR,1P,20A,CURVE D Supplementary Protector, UL1077 Rated, IEC Mini Circuit Breaker, 1 Pole, 20 Amps, 277 VAC, Trip Characteristic Curve D, 18mm Width,70mm Depth, UL File E116386 in Vol. 1 Sec. 2
5SY4120-8 Application
Supplementary Protection Applications5SY4120-8 Item Features
- Excellent current limiting and selectivity characteristics
- Terminals offer protection against contact with fingers or the back of the hand according to the German accident prevention regulations VBG 4/BGV A2
- Combined terminals enable a simultaneous connection of busbars and feeder cables
- Uniform components that can be quickly mounted individually
- The handle locking device virtually prevents any unauthorized operation of the handle
- Rapid connection of the feeder cable in front of the busbar
- Identical terminals at both sides for an optional infeed from the top or the bottom
- Identical wire screw-on line and load side
- No tool required for mounting or dismounting
- Supports a fast and comfortable removal from the assembly
- Trip indication
- Type D characteristic is designed for high inrush loads
- 35 mm DIN-rail mounting
- 10 to 20 times magnetic trip point rating
- 1.13 to 1.45 thermal trip point protector rating
5SY4120-8 Standards
UL 1077, CSA 22.2 NO. 235, CE, EN 60 898, IEC/EN 60 947-2SKU #1022491Part Number #5SY4120-8UNSPSC39121601UPC00754554875538
Image provided may only be a representation of final product and may include optional equipment
