Siemens 5SY4132-8 Miniature Circuit Breaker
Part Number # 5SY4132-8
SKU # 2155120
Siemens 5SY4132-8 Key Features
| Brand: | Siemens |
|---|---|
| Part Number # : | 5SY4132-8 |
| SKU #: | 2155120 |
| UNSPSC: | 39121601 |
| UPC: | 00754554875552 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
Siemens 5SY4132-8 Miniature Circuit Breaker
Brand: Siemens
Part Number: 5SY4132-8
Siemens Miniature Circuit Breaker, Series: 5SY, 230/400 VAC, 32 A, 50/60 Hz Frequency, 7.5 kA Interrupt, Thermal/Magnetic Trip, 1.13 to 1.45 A Trip, 1 Pole, Handle Actuator, Screw Connection, 14 to 4 AWG Wire, IP20/IP40 Enclosure, DIN Rail Mounting, -25 to 55 deg C, 90 mm H x 18 mm W x 76 mm D Dimensions
Additional Description: SIEM-5SY4132-8 SUP PTOR 5SY4 1P 240V 32A 7.5K D-TRIP
Catalog Description: SUPPLEMENTARY PROTECTOR,1P,32A,CURVE D Supplementary Protector, UL1077 Rated, IEC Mini Circuit Breaker, 1 Pole, 32 Amps, 277 VAC, Trip Characteristic Curve D, 18mm Width,70mm Depth, UL File E116386 in Vol. 1 Sec. 2
5SY4132-8 Application
Branch Circuit Protection Applications5SY4132-8 Item Features
- Clear and visible conductor connection in front of the rear busbar facilitates controls
- The conductor is easily inserted into the terminal thanks to the large and easily accessible wiring space
- Double terminal chambers permit accommodation of two wires of different cross-sections
- Quick and easy manual removal of miniature circuit breakers from the busbar assembly, for example if connections need to be changed
- Time-saving replacement of parts as busbars no longer need to be freed from adjacent devices
- For the quick and easy mounting of auxiliary switches and fault signal contacts
- Captive metal brackets on the additional components ensure the quick and easy mounting of devices on the miniature circuit breakers without the need for tools
- Class D trip
5SY4132-8 Standards
CSA C22.2 No. 235|IEC/EN 60898-1/IEC/EN 60947-2|CE Certified|CCC Certified|IMQ Certified|UL 1077SKU #2155120Part Number #5SY4132-8UNSPSC39121601UPC00754554875552

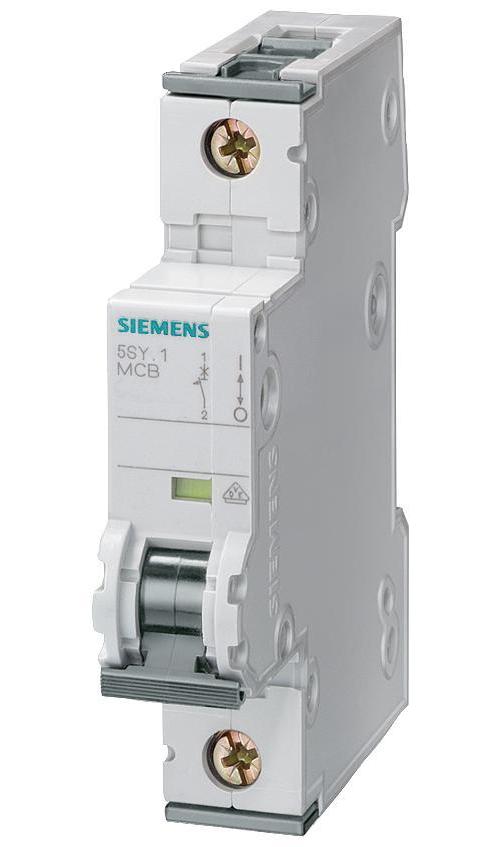

Image provided may only be a representation of final product and may include optional equipment
