Brand: Siemens

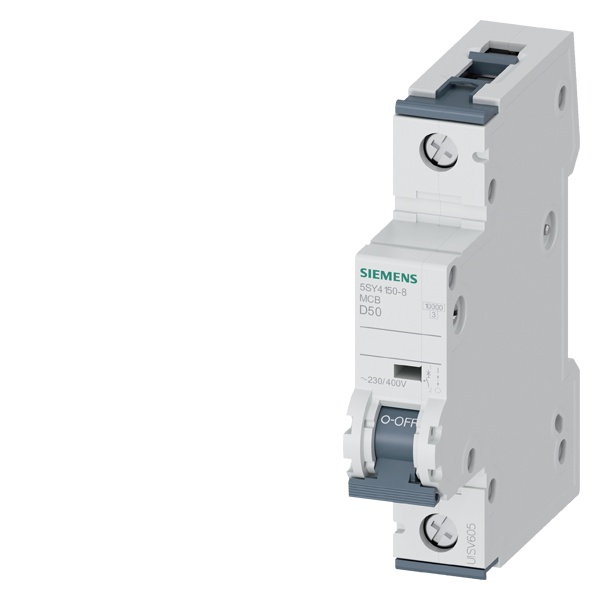

Siemens 5SY4150-8 Sentron Miniature Circuit Breaker
Image Disclaimers Message
Brand: Siemens
Siemens 5SY4150-8 Sentron Miniature Circuit Breaker
Brand: Siemens
Siemens 5SY4150-8 Sentron Miniature Circuit Breaker
Part #:5SY4150-8
SKU #: 2326034
$43.83/EA
Key Features
Part #:5SY4150-8
SKU #: 2326034
Brand: Siemens
Actuator Type: Handle
Amperage Rating: 50, 50 A
Dimensions: 90 mm H x 18 mm W x 76 mm D
Enclosure Type: IP20/IP40
Frequency Rating: 50/60, 50/60 Hz
$43.83/EA
- Clear and visible conductor connection in front of the rear busbar facilitates controls
- The conductor is easily inserted into the terminal thanks to the large and easily accessible wiring space
- Double terminal chambers permit accommodation of two wires of different cross-sections
- Quick and easy manual removal of miniature circuit breakers from the busbar assembly, for example if connections need to be changed
- Time-saving replacement of parts as busbars no longer need to be freed from adjacent devices
- For the quick and easy mounting of auxiliary switches and fault signal contacts
- Captive metal brackets on the additional components ensure the quick and easy mounting of devices on the miniature circuit breakers without the need for tools
- Class D trip
Specifications
Brand: Siemens
Actuator Type: Handle
Amperage Rating: 50, 50 A
Dimensions: 90 mm H x 18 mm W x 76 mm D
Enclosure Type: IP20/IP40
Frequency Rating: 50/60, 50/60 Hz
Interrupt Rating: 7.5, 7.5 kA
Number of Poles: 1
Series: 5SY
Temperature Rating (Degrees F): -25 to 55, -25 to 55 deg C
Trip Range: 1.13 to 1.45, 1.13 to 1.45 A
Trip Type: Thermal Magnetic, Thermal/Magnetic
Voltage Rating: 230/400, 230/400 VAC
Wire Size: 14 to 4, 14 to 4 AWG
Connection type: Screw
Country of origin: DE
Mounting type: DIN Rail
Manufacturer Name: Siemens
UNSPSC: 39121601
UPC: 00754554875576
Item FeaturesIndustrial and Plant Engineering Applications
Item Features
Item FeaturesCSA C22.2 No. 235|IEC/EN 60898-1/IEC/EN 60947-2|CE Certified|CCC Certified|IMQ Certified|UL 1077
