- Clear and visible conductor connection in front of the rear busbar facilitates controls
- The conductor is easily inserted into the terminal thanks to the large and easily accessible wiring space
- Double terminal chambers permit accommodation of two wires of different cross-sections
- Quick and easy manual removal of miniature circuit breakers from the busbar assembly, for example if connections need to be changed
- Time saving replacement of parts as busbars no longer need to be freed from adjacent devices
- For the quick and easy mounting of auxiliary switches and fault signal contacts
- Captive metal brackets on the additional components ensure the quick and easy mounting of devices on the miniature circuit breakers without the need for tools
- Class D-trip
- Type D characteristic is designed for high inrush loads
- 10 to 20 times magnetic trip point rating
- 1.13 to 1.45 thermal trip point protector rating
Specifications
Brand: Siemens
Actuator Type: Handle
Amperage Rating: 1, 1 A
Dimensions: 90 mm H x 36 mm W x 76 mm D
Enclosure Type: IP20/IP40
Frame: 5SY4
Frequency Rating: 50, 50 Hz
Interrupt Rating: 10, 10 kA
Number of Poles: 2
Temperature Rating (Degrees F): -25 to 55, -25 to 55 deg C
Trip Range: 1.13 to 1.45, 1.13 to 1.45 A
Trip Type: Thermal Magnetic, Thermal/Magnetic
Voltage Rating: 480, 480 VAC
Wire Size: 14 to 4, 14 to 4 AWG
Connection type: Line/Load/Screw
Country of origin: DE
Mounting type: DIN Rail
Manufacturer Name: Siemens
UNSPSC: 39121601
UPC: 00754554875965

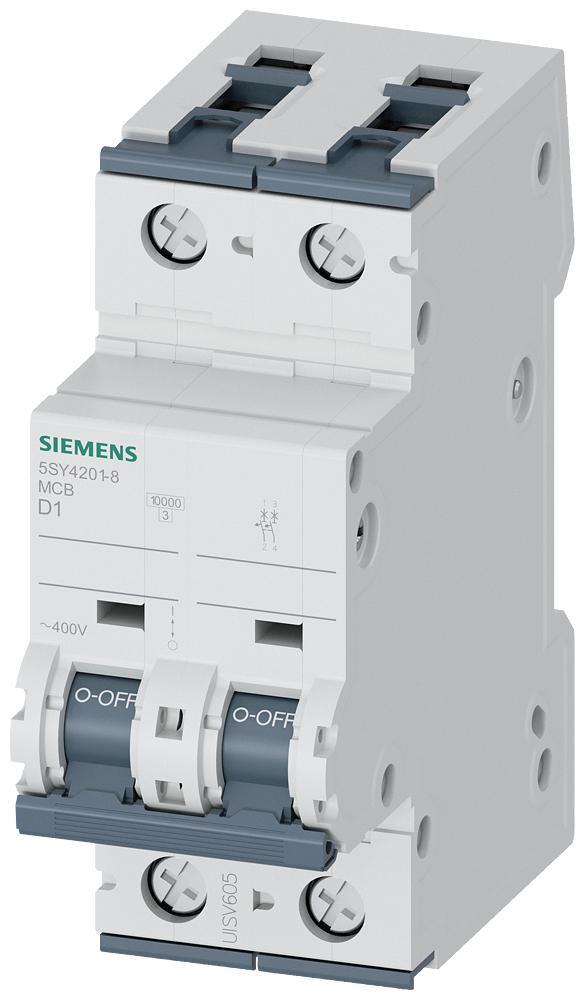

Siemens 5SY4201-8 Sentron Supplementary Protector
Siemens Sentron Supplementary Protector, 480 VAC, 1 A, 50 Hz Frequency, 10 kA Interrupt, 5SY4 Frame, Thermal/Magnetic Trip, 1.13 to 1.45 A Trip, 2 Pole, Handle Actuator, Line/Load/Screw Connection, 14 to 4 AWG Wire, IP20/IP40 Enclosure, DIN Rail Mounting, -25 to 55 deg C, 90 mm H x 36 mm W x 76 mm D Dimensions
Additional Description: SIEM-5SY4201-8 SUP PTOR 5SY4 2P 480V 1A 5K D-TRIP D
Catalog Description: SUPPLEMENTARY PROTECTOR,2P,1A,CURVE D Supplementary Protector, UL1077 Rated, IEC Mini Circuit Breaker, 2 Pole, 1 Amps, 480 VAC, Trip Characteristic Curve D, 36mm Width, 70mm Depth, UL File E116386 in Vol. 1 Sec. 2
Item FeaturesSupplementary Protection Applications
Item Features
Item FeaturesCSA C22.2 No. 235|IEC/EN 60898-1|IEC/EN 60947-2|CE Marked|CCC Marked|IMQ Certified|UL 1077
