Part Number # 5SY4210-5
SKU # 2270207
Image Disclaimers Message
Brand: Siemens
5SY4210-5

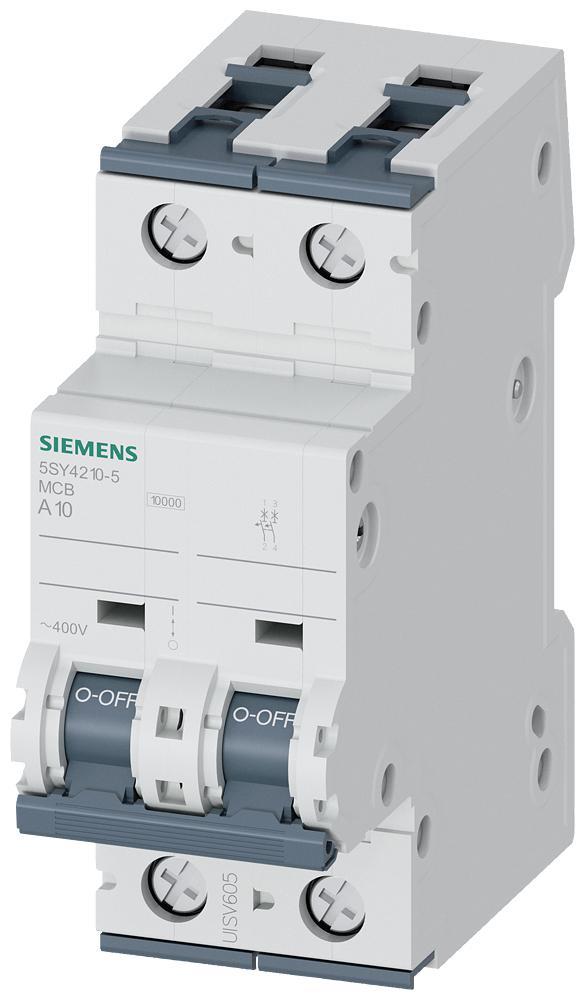

Siemens 5SY4210-5 Sentron Supplementary Protector
Part Number # 5SY4210-5
SKU # 2270207
$72.77 / Each
Typical price:$283.00 / Each
Siemens 5SY4210-5 Key Features
| Brand: | Siemens |
|---|---|
| Part Number # : | 5SY4210-5 |
| SKU #: | 2270207 |
| Amperage Rating: | 10, 10 A |
| Dimensions: | 90 mm H x 36 mm W x 76 mm D |
| Enclosure Type: | IP20 |
| Frame: | 5SY4 |
| Frequency Rating: | 50, 50 Hz |
| Interrupt Rating: | 10, 10 kA |
| Number of Poles: | 2 |
| Temperature Rating (Degrees F): | -25 to 55, -25 to 55 deg C |
| Trip Range: | 11.3 to 14.5, 11.3 to 14.5 A |
| Trip Type: | Thermal Magnetic, Thermal/Magnetic |
| Type: | Miniature |
| Wire Size: | 14 to 4, 14 to 4 AWG |
| Connection type: | Line/Load Side/Screw |
| Country of origin: | DE |
| Mounting type: | DIN Rail |
| Manufacturer Name: | Siemens |
| UNSPSC: | 39121601 |
| UPC: | 00754554875668 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$72.77 / Each
Typical price:$283.00 / Each
Quantity:
- Siemens Sentron Supplementary Protector, Miniature, 480 V AC, 10 A, 50 Hz Frequency, 10 kA Interrupt, 5SY4 Frame, Thermal Magnetic Trip, 11.3 to 14.5 A Trip, 2 Pole, Line/Load Side/Screw Connection, 14 to 4 AWG Wire, IP20 Enclosure, DIN Rail Mounting, -25 to 55 deg C, 90 mm H x 36 mm W x 76 mm D Dimensions
5SY4210-5 Application
Supplementary Protection Applications5SY4210-5 Item Features
- Type A characteristic is designed to protect very sensitive circuits such as semi-conductors
- Identical wire screw connections on line and load side
- 70 mm D installation
- Quick assembly system mounting
- 2 to 3 times magnetic trip point rating
- 1.13 to 1.45 thermal trip point protector rating
5SY4210-5 Standards
CE Marked|CSA C22.2 No. 235|IEC/EN 60898|IEC/EN 60947-2|UL 1077SKU #2270207Part Number #5SY4210-5UNSPSC39121601UPC00754554875668
