Part Number # 5SY4210-6
SKU # 2336562
5SY4210-6

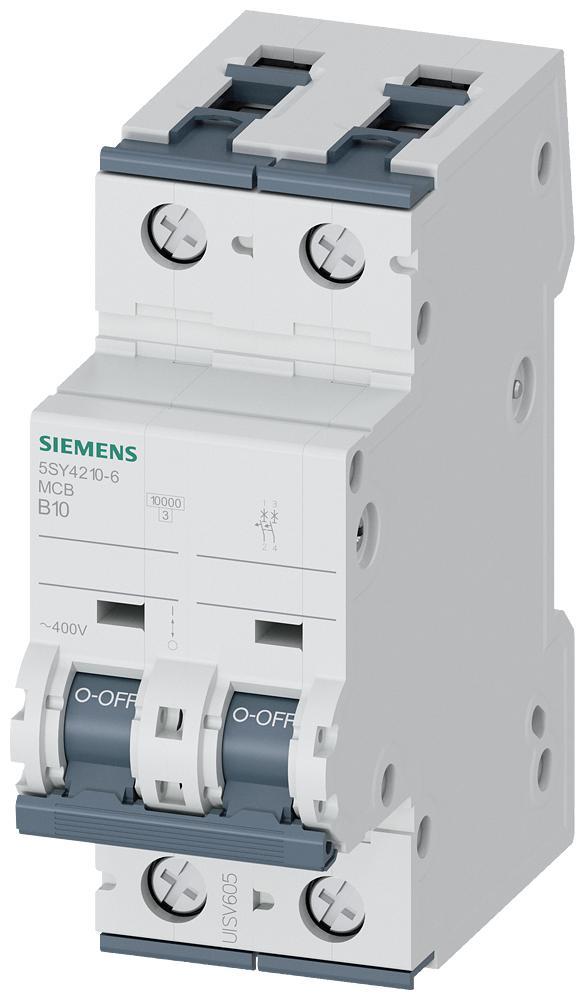

Siemens 5SY4210-6 Sentron Supplementary Protector
Part Number # 5SY4210-6
SKU # 2336562
Siemens 5SY4210-6 Key Features
| Brand: | Siemens |
|---|---|
| Part Number # : | 5SY4210-6 |
| SKU #: | 2336562 |
| Frame: | 5SY4 |
| UNSPSC: | 39121601 |
| UPC: | 00754554875767 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
Siemens 5SY4210-6 Sentron Supplementary Protector
Brand: Siemens
Part Number: 5SY4210-6
Siemens Sentron Supplementary Protector, Miniature, 480 VAC, 10 A, 50 Hz Frequency, 10 kA Interrupt, 5SY4 Frame, Thermal/Magnetic Trip, 11.3 to 14.5 A Trip, 2 Pole, Line/Load Side/Screw Connection, 14 to 4 AWG Wire, IP20 Enclosure, DIN Rail Mounting, -25 to 45 deg C, 90 mm H x 36 mm W x 70 mm D Dimensions
Additional Description: SIEM-5SY4210-6 (N) SUP PTOR 5SY4 2P 480V 10A 5K B-TRIP PROTECTOR,2P,10A,CURVE B NON-CANCELABLE, NON-RETURNABLE
Catalog Description: SUPPLEMENTARY PROTECTOR,2P,10A,CURVE B Supplementary Protector, UL1077 Rated, IEC Mini Circuit Breaker, 2 Pole, 10 Amps, 480 VAC, Trip Characteristic Curve B, 36mm Width,70mm Depth, UL File E116386 in Vol. 1 Sec. 2
5SY4210-6 Application
Supplementary Protection Applications5SY4210-6 Item Features
- Excellent current limiting and selectivity characteristics
- Terminals offer protection against contact with fingers or the back of the hand according to the German accident prevention regulations VBG 4/BGV A2
- Combined terminals enable a simultaneous connection of busbars and feeder cables
- Uniform components that can be quickly mounted individually
- The handle locking device virtually prevents any unauthorized operation of the handle
- Rapid connection of the feeder cable in front of the busbar
- Identical terminals at both sides for an optional infeed from the top or the bottom
- Identical wire screw-on line and load side
- No tool required for mounting or dismounting
- Supports a fast and comfortable removal from the assembly
- Trip indication
- Type b characteristic designed for European residential circuit protection, this characteristic can also be used for protection of computers and electronic equipment
- 35 mm DIN-rail mounting
- 3 to 5 times magnetic trip point rating
- 1.13 to 1.45 thermal trip point protector rating
5SY4210-6 Standards
CE Marked|cULus Listed|CSA 22.2 No. 235|IEC/EN 60898|IEC/EN 60947-2|UL 1077 File No. E116386SKU #2336562Part Number #5SY4210-6UNSPSC39121601UPC00754554875767
Image provided may only be a representation of final product and may include optional equipment
