Part Number # 5SY4216-8
SKU # 2233002
Image Disclaimers Message
Brand: Siemens
5SY4216-8

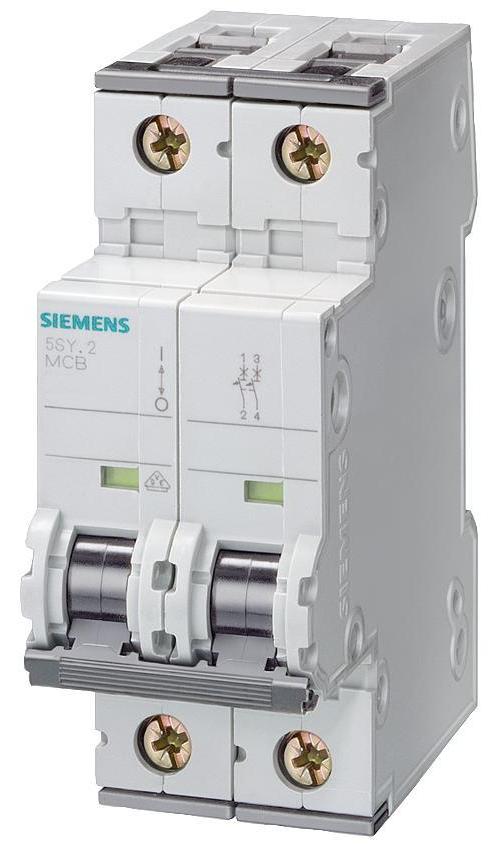

Siemens 5SY4216-8 Supplementary Protector
Part Number # 5SY4216-8
SKU # 2233002
$70.00 / Each
Typical price:$283.00 / Each
Siemens 5SY4216-8 Key Features
| Brand: | Siemens |
|---|---|
| Part Number # : | 5SY4216-8 |
| SKU #: | 2233002 |
| Amperage Rating: | 16, 16 A |
| Dimensions: | 90 mm H x 36 mm W x 70 mm D |
| Enclosure Type: | IP20 |
| Frequency Rating: | 50, 50 Hz |
| Interrupt Rating: | 5, 5 kA |
| Number of Poles: | 2 |
| Temperature Rating (Degrees F): | -25 to 45, -25 to 45 deg C |
| Trip Type: | Thermal Magnetic, Thermal/Magnetic |
| Type: | Miniature |
| Wire Size: | 14 to 4, 14 to 4 AWG |
| Connection type: | Screw |
| Country of origin: | DE |
| Mounting type: | DIN Rail |
| Manufacturer Name: | Siemens |
| UNSPSC: | 39121601 |
| UPC: | 00754554876023 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$70.00 / Each
Typical price:$283.00 / Each
Quantity:
- Siemens Supplementary Protector, Miniature, 480 V AC, 16 A, 50 Hz Frequency, 5 kA Interrupt, Thermal Magnetic Trip, 2 Pole, Screw Connection, 14 to 4 AWG Wire, IP20 Enclosure, DIN Rail Mounting, -25 to 45 deg C, 90 mm H x 36 mm W x 70 mm D Dimensions
5SY4216-8 Application
Industrial and Plant Engineering Applications5SY4216-8 Item Features
- Excellent current limiting and selectivity characteristics
- Terminals offer protection against contact with fingers or the back of the hand according to the German accident prevention regulations VBG 4/BGV A2
- Combined terminals enable a simultaneous connection of busbars and feeder cables
- Uniform components that can be quickly mounted individually
- The handle locking device virtually prevents any unauthorized operation of the handle
- Rapid connection of the feeder cable in front of the busbar
- Identical terminals at both sides for an optional infeed from the top or the bottom
- Identical wire screw connections on line and load side
- No tool required for mounting or dismounting
- Supports a fast and comfortable removal from the assembly
- Trip indication
- Type D characteristic is designed for high inrush loads
- 35 mm DIN rail mounting
- Magnetic trip point - 10 to 20 times in rating
- Thermal trip point - 1.13 to 1.45 protector rating
5SY4216-8 Standards
CE Marked|cULus Listed|CSA 22.2 No. 235|EN 60 898|IEC/EN 60 947-2|UL 1077 File No. E116386SKU #2233002Part Number #5SY4216-8UNSPSC39121601UPC00754554876023
