Part Number # 5SY4240-6
SKU # 2456465
Brand: Siemens
5SY4240-6
Siemens 5SY4240-6
Part Number # 5SY4240-6
SKU # 2456465
$77.91 / Each
Typical price:$303.00 / Each
Siemens 5SY4240-6 Key Features
| Brand: | Siemens |
|---|---|
| Part Number # : | 5SY4240-6 |
| SKU #: | 2456465 |
| UNSPSC: | 39121601 |
| UPC: | 00754554875811 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$77.91 / Each
Typical price:$303.00 / Each
Quantity:

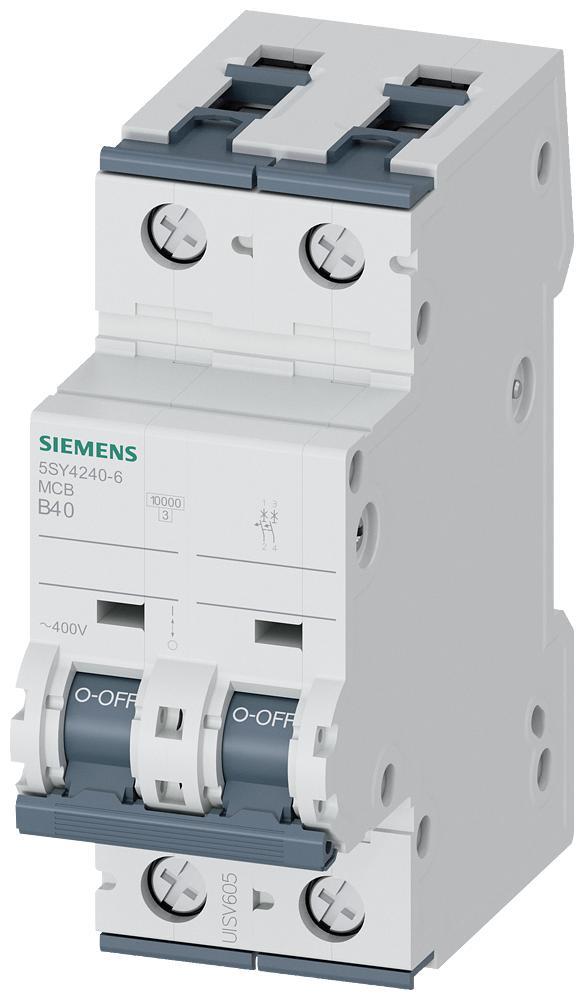

- Siemens Miniature Circuit Breaker, Series: 5SY, 400 V AC, 40 A, 50/60 Hz Frequency, 5 kA Interrupt, Thermal Magnetic Trip, 1.13 to 1.45 A Trip, 2 Pole, Handle Actuator, Screw Connection, 14 to 4 AWG Wire, IP20/IP40 Enclosure, DIN Rail Mounting, -25 to 55 deg C, 90 mm H x 36 mm W x 76 mm D Dimensions
5SY4240-6 Application
Supplementary Protection5SY4240-6 Item Features
- Clear and visible conductor connection in front of the rear busbar facilitates controls
- The conductor is easily inserted into the terminal thanks to the large and easily accessible wiring space
- Double terminal chambers permit accommodation of two wires of different cross-sections
- Quick and easy manual removal of miniature circuit breakers from the busbar assembly, for example if connections need to be changed
- Time-saving replacement of parts as busbars no longer need to be freed from adjacent devices
- For the quick and easy mounting of auxiliary switches and fault signal contacts
- Captive metal brackets on the additional components ensure the quick and easy mounting of devices on the miniature circuit breakers without the need for tools
- Class B trip
- https://www.youtube.com/watch?v=NkSiw3nWIJg|https://www.youtube.com/watch?v=y_qB1VuTgj8
5SY4240-6 Standards
UL 1077 and CSA C22.2 No. 235, IEC/EN 60898-1, IEC/EN 60947-2SKU #2456465Part Number #5SY4240-6UNSPSC39121601UPC00754554875811
Image provided may only be a representation of final product and may include optional equipment
