- Type D characteristic is designed for high inrush loads
- Identical wire screw connections on line and load side
- 70 mm D installation
- Quick-assembly system mounting
- Magnetic trip point - 10 to 20 times in rating
Specifications
Brand: Siemens
Amperage Rating: 2, 2 A
Dimensions: 90 mm H x 54 mm W x 76 mm D
Enclosure Type: IP20
Frame: D
Frequency Rating: 50/60, 50/60 Hz
Interrupt Rating: 5, 5 kA
Number of Poles: 3
Temperature Rating (Degrees F): -25 to 55, -25 to 55 deg C
Trip Type: Thermal Magnetic, Thermal/Magnetic
Voltage Rating: 480, 480 VAC
Wire Size: 14 to 4, 14 to 4 AWG
Connection type: Screw
Country of origin: DE
Mounting type: DIN Rail
Manufacturer Name: Siemens
UNSPSC: 39121601
UPC: 00754554875088

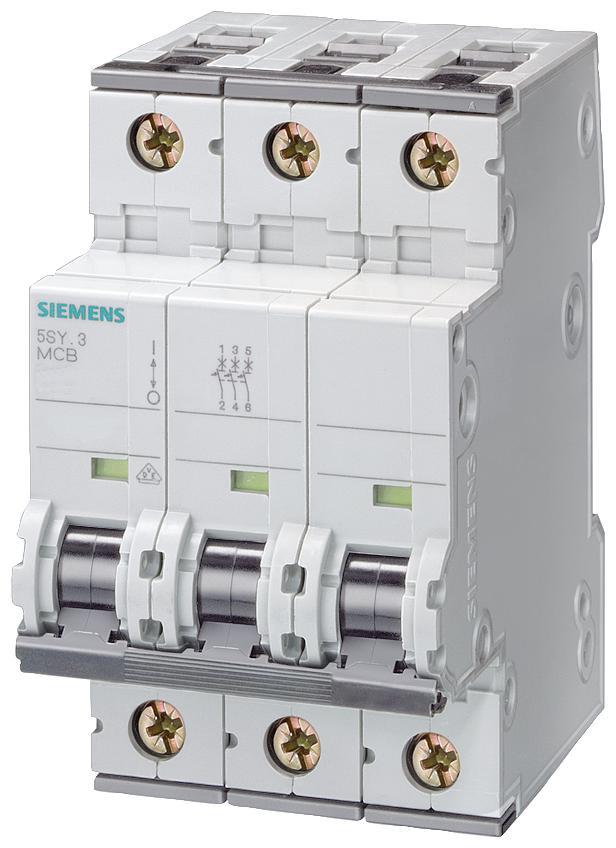

Siemens 5SY4302-8 Supplementary Protector
Siemens Supplementary Protector, 480 VAC, 2 A, 50/60 Hz Frequency, 5 kA Interrupt, D Frame, Thermal/Magnetic Trip, 3 Pole, Screw Connection, 14 to 4 AWG Wire, IP20 Enclosure, DIN Rail Mounting, -25 to 55 deg C, 90 mm H x 54 mm W x 76 mm D Dimensions
Additional Description: SIEM-5SY4302-8 SUP PTOR 5SY4 3P 480V 2A 5K D-TRIP D
Catalog Description: SUPPLEMENTARY PROTECTOR,3P,2A,CURVE D Supplementary Protector, UL1077 Rated, IEC Mini Circuit Breaker, 3 Pole, 2 Amps, 480 VAC, Trip Characteristic Curve D, 54mm Width, 70mm Depth, UL File E116386 in Vol. 1 Sec. 2
Item FeaturesIndustrial Applications
Item Features
Item FeaturesCE Marked|CSA 235|EN 60 898|IEC/EN 60 947-2|UL 1077
