Part Number # 5SY4313-7
SKU # 2173620

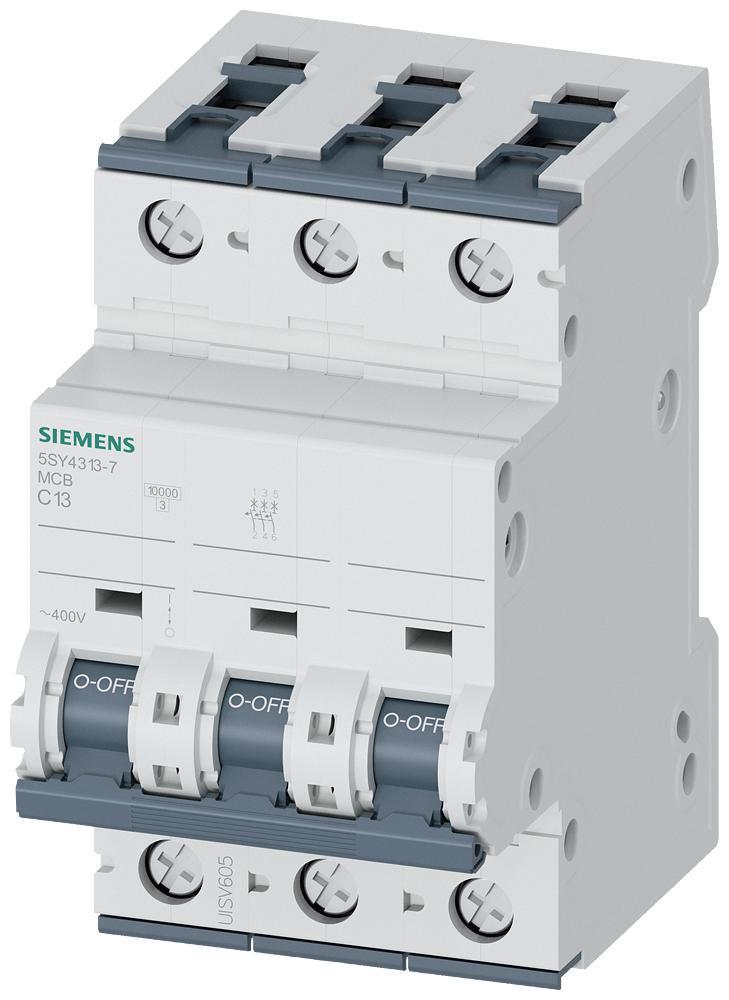

Image provided may only be a representation of
final product and may include optional equipment
5SY4313-7
Siemens 5SY4313-7 Sentron Supplementary Protector
Part Number # 5SY4313-7
SKU # 2173620
Siemens 5SY4313-7 Key Features
| Brand: | Siemens |
|---|---|
| Part Number # : | 5SY4313-7 |
| SKU #: | 2173620 |
| Amperage Rating: | 13, 13 A |
| Dimensions: | 90 mm H x 54 mm W x 70 mm D |
| Enclosure Type: | IP20 |
| Frame: | 5SY4 |
| Frequency Rating: | 50, 50 Hz |
| Interrupt Rating: | 10, 10 kA |
| Number of Poles: | 3 |
| Temperature Rating (Degrees F): | -25 to 45, -25 to 45 deg C |
| Trip Range: | 14.69 to 18.85, 14.69 to 18.85 A |
| Trip Type: | Thermal Magnetic, Thermal/Magnetic |
| Type: | Miniature |
| Wire Size: | 14 to 4, 14 to 4 AWG |
| Connection type: | Line/Load Side/Screw |
| Country of origin: | DE |
| Mounting type: | DIN Rail |
| Manufacturer Name: | Siemens |
| UNSPSC: | 39121601 |
| UPC: | 00754554876368 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
Siemens 5SY4313-7 Sentron Supplementary Protector
Brand: Siemens
Part Number: 5SY4313-7
Siemens Sentron Supplementary Protector, Miniature, 480 VAC, 13 A, 50 Hz Frequency, 10 kA Interrupt, 5SY4 Frame, Thermal/Magnetic Trip, 14.69 to 18.85 A Trip, 3 Pole, Line/Load Side/Screw Connection, 14 to 4 AWG Wire, IP20 Enclosure, DIN Rail Mounting, -25 to 45 deg C, 90 mm H x 54 mm W x 70 mm D Dimensions
Additional Description: SIEM-5SY4313-7 SUP PTOR 5SY4 3P 480V 13A 5K C-TRIP PROTECTOR,3P,13A,CURVE C
Catalog Description: SUPPLEMENTARY PROTECTOR,3P,13A,CURVE C Supplementary Protector, UL1077 Rated, IEC Mini Circuit Breaker, 3 Pole, 13 Amps, 480 VAC, Trip Characteristic Curve C, 54mm Width,70mm Depth, UL File E116386 in Vol. 1 Sec. 2
5SY4313-7 Application
Supplementary Protection Applications5SY4313-7 Item Features
- Excellent current limiting and selectivity characteristics
- Terminals offer protection against contact with fingers or the back of the hand according to the German accident prevention regulations VBG 4/BGV A2
- Combined terminals enable a simultaneous connection of busbars and feeder cables
- Uniform components that can be quickly mounted individually
- The handle locking device virtually prevents any unauthorized operation of the handle
- Rapid connection of the feeder cable in front of the busbar
- Identical terminals at both sides for an optional infeed from the top or the bottom
- Identical wire screw-on line and load side
- No tool required for mounting or dismounting
- Supports a fast and comfortable removal from the assembly
- Trip indication
- Type C characteristic is for general device protection in control circuits
- 35 mm DIN-rail mounting
- 5 to 10 times magnetic trip point rating
- 1.13 to 1.45 thermal trip point protector rating
5SY4313-7 Standards
UL 1077, CSA 22.2 NO. 235, CE, EN 60 898, IEC/EN 60 947-2SKU #2173620Part Number #5SY4313-7UNSPSC39121601UPC00754554876368
