Part Number # 5SY4316-5
SKU # 2444129
5SY4316-5
Siemens 5SY4316-5
Part Number # 5SY4316-5
SKU # 2444129
Siemens 5SY4316-5 Key Features
| Brand: | Siemens |
|---|---|
| Part Number # : | 5SY4316-5 |
| SKU #: | 2444129 |
| Amperage Rating: | 16 A |
| Dimensions: | 90 mm H x 54 mm W x 70 mm D |
| Enclosure Type: | IP20 |
| Frequency Rating: | 50 Hz |
| Interrupt Rating: | 5 kA |
| Number of Poles: | 3 |
| Temperature Rating (Degrees F): | -25 to 45 deg C |
| Trip Type: | Thermal Magnetic, Thermal/Magnetic |
| Type: | Miniature |
| Wire Size: | 14 to 4 AWG |
| Connection type: | Screw |
| Country of origin: | DE |
| Mounting type: | DIN Rail |
| Manufacturer Name: | Siemens |
| UNSPSC: | 39121601 |
| UPC: | 00754554876177 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
Siemens 5SY4316-5
Brand: Siemens
Part Number: 5SY4316-5
Sentron™ Supplementary Protector, Miniature, 480 VAC, 16 A, 50 Hz Frequency Rating, 5 kA Interrupt, Thermal Magnetic Trip, 3 Pole, 3 Phase, Screw Connection, 14 to 4 AWG Wire, IP20 Enclosure, DIN Rail Mount, -25 to 45 deg C Temperature Rating, 90 mm H x 54 mm W x 70 mm D Dimensions
Additional Description: SIEM-5SY4316-5 SUP PTOR 5SY4 3P 480V 16A 5K A-TRIP
Catalog Description: SUPPLEMENTARY PROTECTOR,3P,16A,CURVE A Supplementary Protector, UL1077 Rated, IEC Mini Circuit Breaker, 3 Pole, 16 Amps, 480 VAC, Trip Characteristic Curve A, 54mm Width,70mm Depth, UL File E116386 in Vol. 1 Sec. 2
5SY4316-5 Application
Supplementary Protection Applications5SY4316-5 Item Features
- Excellent current limiting and selectivity characteristics
- Terminals offer protection against contact with fingers or the back of the hand according to the German accident prevention regulations VBG 4/BGV A2
- Combined terminals enable a simultaneous connection of busbars and feeder cables
- Uniform components that can be quickly mounted individually
- The handle locking device virtually prevents any unauthorized operation of the handle
- Rapid connection of the feeder cable in front of the busbar
- Identical terminals at both sides for an optional infeed from the top or the bottom
- Identical wire screw on line and load side
- No tool required for mounting or dismounting
- Supports a fast and comfortable removal from the assembly
- Trip indication
- Type A characteristic is designed to protect very sensitive circuits such as semi-conductors
- 35 mm DIN Rail mounting
- Magnetic trip point - 2 to 3 times in rating
- Thermal trip point - 1.13 to 1.45 protector rating
5SY4316-5 Standards
UL 1077, CSA 22.2 NO. 235, CE, EN 60 898, IEC/EN 60 947-2SKU #2444129Part Number #5SY4316-5UNSPSC39121601UPC00754554876177

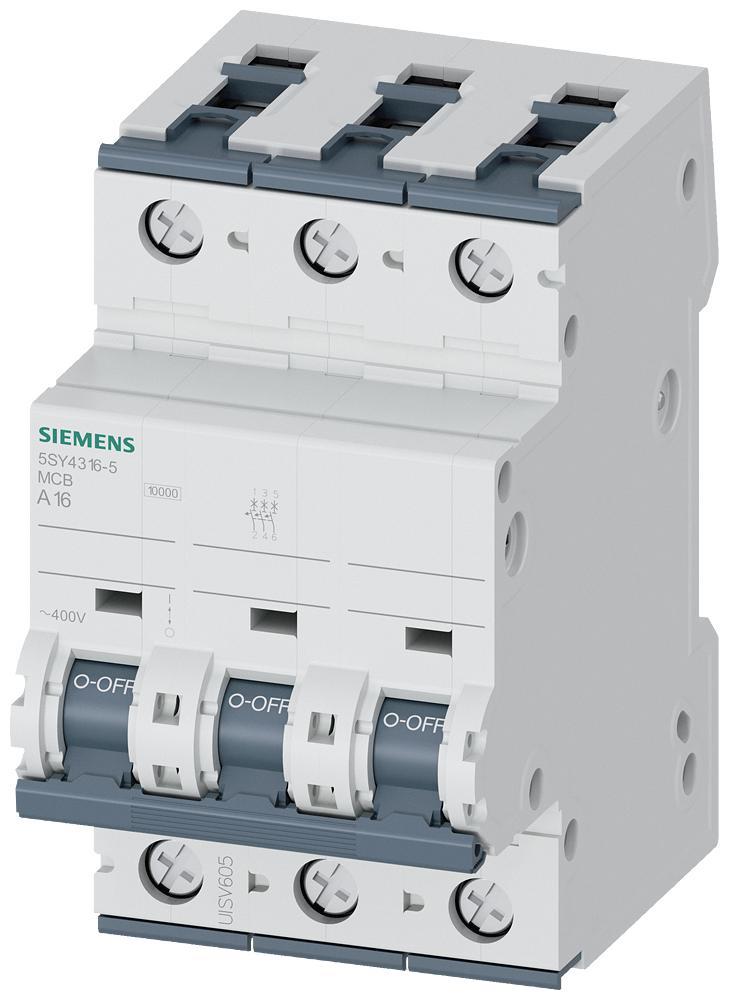

Image provided may only be a representation of final product and may include optional equipment
