Brand: Siemens

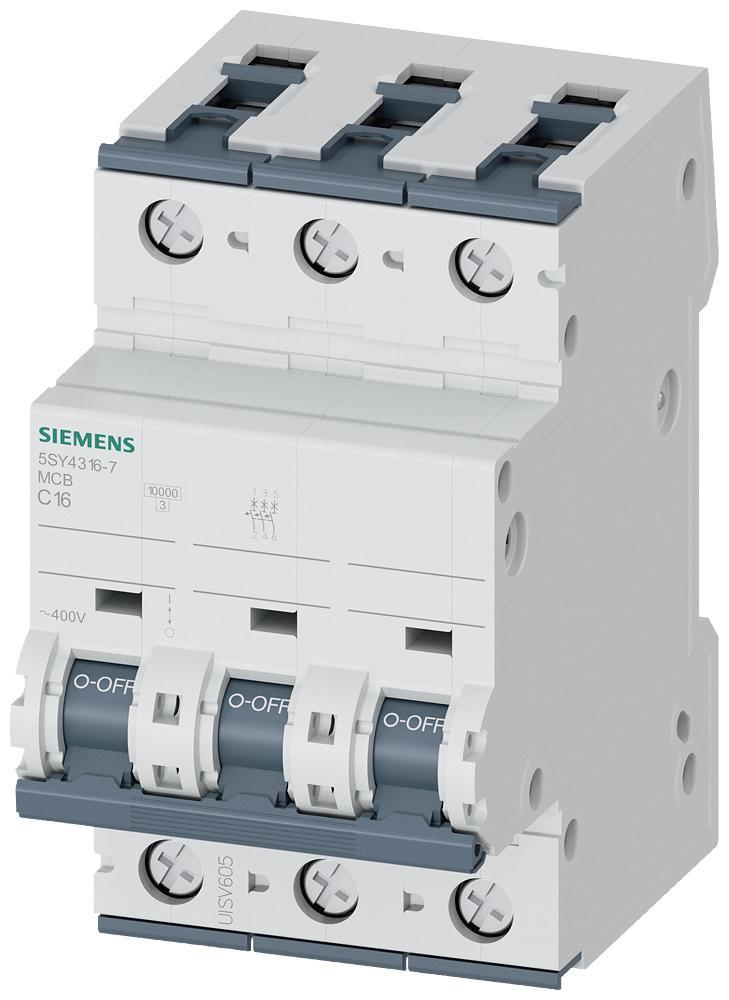

Siemens 5SY4316-7 Sentron Supplementary Protector
Image Disclaimers Message
Brand: Siemens
Siemens 5SY4316-7 Sentron Supplementary Protector
Brand: Siemens
Siemens 5SY4316-7 Sentron Supplementary Protector
Part #:5SY4316-7
SKU #: 1024687
$103.37/EA
Key Features
Part #:5SY4316-7
SKU #: 1024687
Brand: Siemens
Amperage Rating: 16, 16 A
Dimensions: 90 mm H x 54 mm W x 70 mm D
Enclosure Type: IP20
Frame: 5SY4
Frequency Rating: 50, 50 Hz
$103.37/EA
- Excellent current limiting and selectivity characteristics
- Terminals offer protection against contact with fingers or the back of the hand according to the German accident prevention regulations VBG 4/BGV A2
- Combined terminals enable a simultaneous connection of busbars and feeder cables
- Uniform components that can be quickly mounted individually
- The handle locking device virtually prevents any unauthorized operation of the handle
- Rapid connection of the feeder cable in front of the busbar
- Identical terminals at both sides for an optional infeed from the top or the bottom
- Identical wire screw-on line and load side
- No tool required for mounting or dismounting
- Supports a fast and comfortable removal from the assembly
- Trip indication
- Type C characteristic is for general device protection in control circuits
- 35 mm DIN-rail mounting
- 5 to 10 times magnetic trip point rating
- 1.13 to 1.45 thermal trip point protector rating
Specifications
Brand: Siemens
Amperage Rating: 16, 16 A
Dimensions: 90 mm H x 54 mm W x 70 mm D
Enclosure Type: IP20
Frame: 5SY4
Frequency Rating: 50, 50 Hz
Interrupt Rating: 10, 10 kA
Number of Poles: 3
Temperature Rating (Degrees F): -25 to 45, -25 to 45 deg C
Trip Range: 18.08 to 23.2, 18.08 to 23.2 A
Trip Type: Thermal Magnetic, Thermal/Magnetic
Type: Miniature
Voltage Rating: 480, 480 VAC
Wire Size: 14 to 4, 14 to 4 AWG
Connection type: Line/Load Side/Screw
Country of origin: DE
Mounting type: DIN Rail
Manufacturer Name: Siemens
UNSPSC: 39121601
UPC: 00754554862446
Siemens 5SY4316-7 Sentron Supplementary Protector
Siemens Sentron Supplementary Protector, Miniature, 480 VAC, 16 A, 50 Hz Frequency, 10 kA Interrupt, 5SY4 Frame, Thermal/Magnetic Trip, 18.08 to 23.2 A Trip, 3 Pole, Line/Load Side/Screw Connection, 14 to 4 AWG Wire, IP20 Enclosure, DIN Rail Mounting, -25 to 45 deg C, 90 mm H x 54 mm W x 70 mm D Dimensions
Additional Description: SIEM-5SY4316-7 SUP PTOR 5SY4 3P 480V 16A 5K C-TRIP PROTECTOR,3P,16A,CURVE C C-TRIP
Catalog Description: WP-switch -3POL/16A/C_-25/+45GRD
Item FeaturesSupplementary Protection Applications
Item Features
Item FeaturesCE Marked|cULus Listed|CSA 22.2 No. 235|IEC/EN 60898|IEC/EN 60947-2|UL 1077 File No. E116386
