Part Number # 5SY4404-7
SKU # 2387991
5SY4404-7

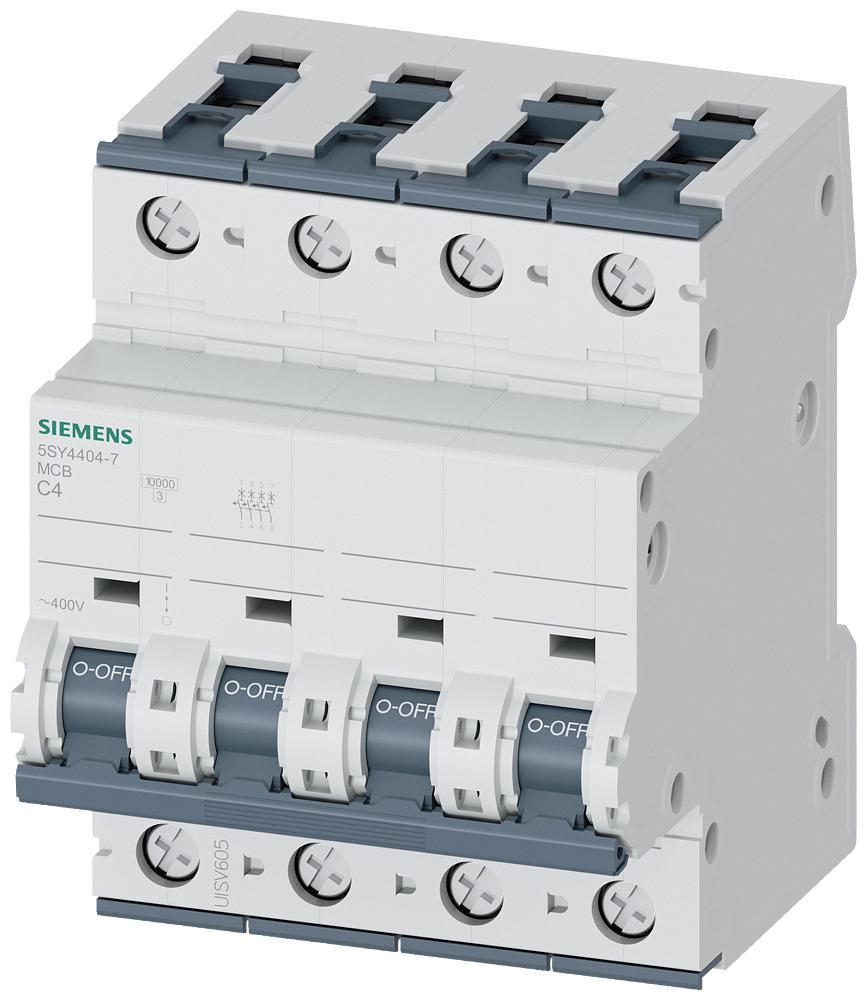

Siemens 5SY4404-7 Sentron Miniature Circuit Breaker
Part Number # 5SY4404-7
SKU # 2387991
Siemens 5SY4404-7 Key Features
| Brand: | Siemens |
|---|---|
| Part Number # : | 5SY4404-7 |
| SKU #: | 2387991 |
| UNSPSC: | 39121601 |
| UPC: | 00754554876894 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
Siemens 5SY4404-7 Sentron Miniature Circuit Breaker
Brand: Siemens
Part Number: 5SY4404-7
Sentron Miniature Circuit Breaker, Series: 5SY, 400 VAC, 4 A, 50/60 Hz Frequency, 5 kA Interrupt, Thermal/Magnetic Trip, 1.13 to 1.45 A Trip, 4 Pole, Handle Actuator, Screw Connection, 14 to 4 AWG Wire, IP20/IP40 Enclosure, DIN Rail Mounting, -25 to 55 deg C, 90 mm H x 72 mm W x 76 mm D Dimensions
Additional Description: SIEM-5SY4404-7 (N) SUP PTOR 5SY4 4P 480V 4A 5K C-TRIP NON-CANCELABLE, NON-RETURNABLE
Catalog Description: SUPPLEMENTARY PROTECTOR,4P,4A,CURVE C Supplementary Protector, UL1077 Rated, IEC Mini Circuit Breaker, 4 Pole, 4 Amps, 480 VAC, Trip Characteristic Curve C, 72mm Width, 70mm Depth, UL File E116386 in Vol. 1 Sec. 2
5SY4404-7 Application
Supplementary Protection5SY4404-7 Item Features
- Clear and visible conductor connection in front of the rear busbar facilitates controls
- The conductor is easily inserted into the terminal thanks to the large and easily accessible wiring space
- Double terminal chambers permit accommodation of two wires of different cross-sections
- Quick and easy manual removal of miniature circuit breakers from the busbar assembly, for example if connections need to be changed
- Time-saving replacement of parts as busbars no longer need to be freed from adjacent devices
- For the quick and easy mounting of auxiliary switches and fault signal contacts
- Captive metal brackets on the additional components ensure the quick and easy mounting of devices on the miniature circuit breakers without the need for tools
- Class C trip
5SY4404-7 Standards
UL 1077 and CSA C22.2 No. 235, IEC/EN 60898-1, IEC/EN 60947-2SKU #2387991Part Number #5SY4404-7UNSPSC39121601UPC00754554876894
Image provided may only be a representation of final product and may include optional equipment
