Part Number # 5SY4510-6
SKU # 2451790
Image Disclaimers Message
5SY4510-6

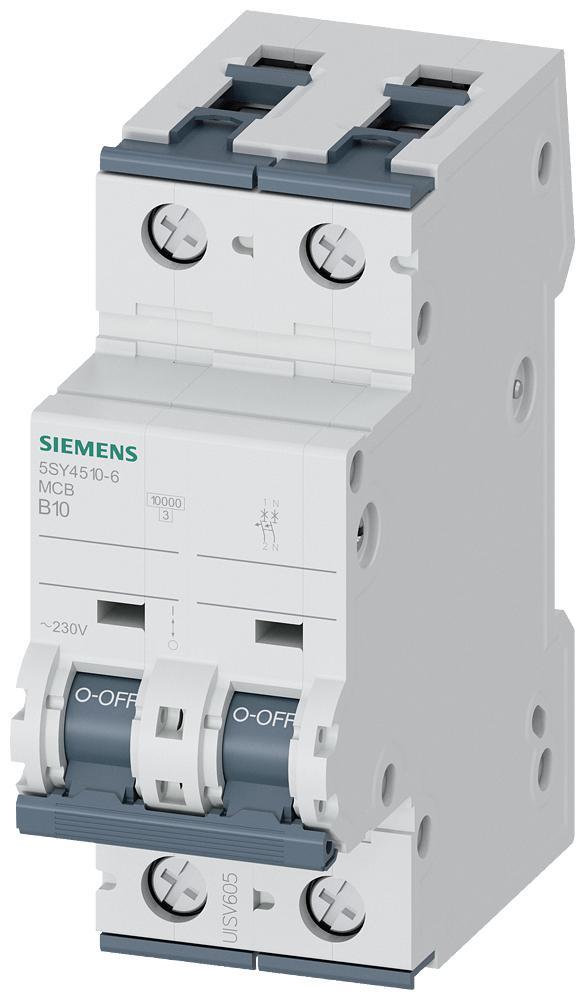

Siemens 5SY4510-6
Part Number # 5SY4510-6
SKU # 2451790
$64.29 / Each
Typical price:$250.00 / Each
Siemens 5SY4510-6 Key Features
| Brand: | Siemens |
|---|---|
| Part Number # : | 5SY4510-6 |
| SKU #: | 2451790 |
| Actuator Type: | Handle |
| Amperage Rating: | 10 A |
| Dimensions: | 90 mm H x 36 mm W x 76 mm D |
| Enclosure Type: | IP20/IP40 |
| Frequency Rating: | 50/60 Hz |
| Interrupt Rating: | 5 kA |
| Number of Poles: | 1+N |
| Series: | 5SY |
| Temperature Rating (Degrees F): | -25 to 55 deg C |
| Trip Range: | 1.13 to 1.45 A |
| Trip Type: | Thermal Magnetic, Thermal/Magnetic |
| Wire Size: | 14 to 4 AWG |
| Connection type: | Screw |
| Country of origin: | DE |
| Mounting type: | DIN Rail |
| Manufacturer Name: | Siemens |
| UNSPSC: | 39121601 |
| UPC: | 00754554841496 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$64.29 / Each
Typical price:$250.00 / Each
Quantity:
- Sentron Miniature Circuit Breaker, Series: 5SY, 230 V AC, 10 A, 50/60 Hz Frequency, 5 kA Interrupt, Thermal Magnetic Trip, 1.13 to 1.45 A Trip, 1+N Pole, Handle Actuator, Screw Connection, 14 to 4 AWG Wire, IP20/IP40 Enclosure, DIN Rail Mounting, -25 to 55 deg C, 90 mm H x 36 mm W x 76 mm D Dimensions
5SY4510-6 Application
Supplementary Protection5SY4510-6 Item Features
- Clear and visible conductor connection in front of the rear busbar facilitates controls
- The conductor is easily inserted into the terminal thanks to the large and easily accessible wiring space
- Double terminal chambers permit accommodation of two wires of different cross-sections
- Quick and easy manual removal of miniature circuit breakers from the busbar assembly, for example if connections need to be changed
- Time-saving replacement of parts as busbars no longer need to be freed from adjacent devices
- For the quick and easy mounting of auxiliary switches and fault signal contacts
- Captive metal brackets on the additional components ensure the quick and easy mounting of devices on the miniature circuit breakers without the need for tools
- Class B trip
5SY4510-6 Standards
CSA C22.2 No. 235|IEC/EN 60898-1/IEC/EN 60947-2|CE Certified|CCC Certified|IMQ Certified|UL 1077SKU #2451790Part Number #5SY4510-6UNSPSC39121601UPC00754554841496
