Part Number # 5SY4601-5
SKU # 2444859
5SY4601-5
Siemens 5SY4601-5
Part Number # 5SY4601-5
SKU # 2444859
Siemens 5SY4601-5 Key Features
| Brand: | Siemens |
|---|---|
| Part Number # : | 5SY4601-5 |
| SKU #: | 2444859 |
| UNSPSC: | 39121601 |
| UPC: | 00754554877747 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.

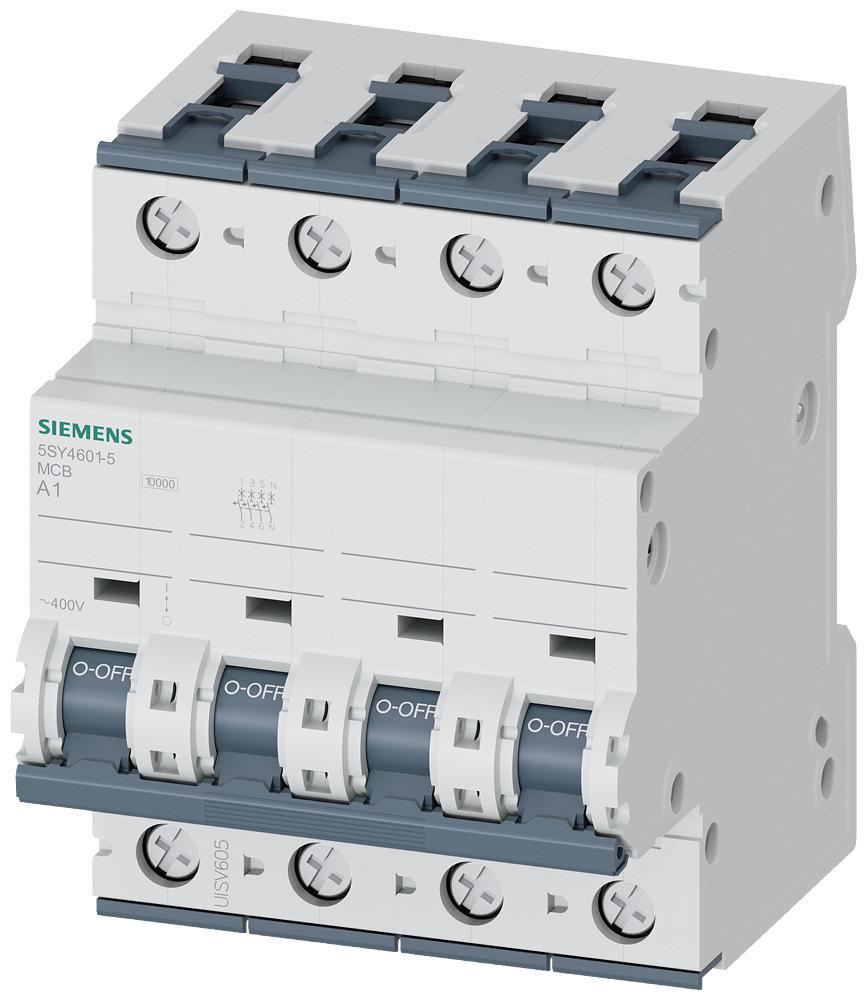

Siemens 5SY4601-5
Brand: Siemens
Part Number: 5SY4601-5
Sentron™ Miniature Circuit Breaker, Series: 5SY, 400 VAC, 1 A, 50/60 Hz Frequency, 5 kA Interrupt, Thermal Magnetic Trip, 1.13 to 1.45 A Trip, 3+N Pole, Handle Actuator, Screw Connection, 14 to 4 AWG Wire, IP20/IP40 Enclosure, DIN Rail Mounting, -25 to 55 deg C, 90 mm H x 72 mm W x 76 mm D Dimensions
Additional Description: SIEM-5SY4601-5 (N) SUP PTOR 5SY4 3P+N 480V 1A 5K A-TRIP NON-CANCELABLE, NON-RETURNABLE
Catalog Description: SUPPLEMENTARY PROTECTOR,3P+N,1A,CURVE A Supplementary Protector, UL1077 Rated, IEC Mini Circuit Breaker, 3+N Pole, 1 Amps, 480 VAC, Trip Characteristic Curve A, 72mm Width, 70mm Depth, UL File E116386 in Vol. 1 Sec. 2
5SY4601-5 Application
Supplementary Protection5SY4601-5 Item Features
- Clear and visible conductor connection in front of the rear busbar facilitates controls
- The conductor is easily inserted into the terminal thanks to the large and easily accessible wiring space
- Double terminal chambers permit accommodation of two wires of different cross-sections
- Quick and easy manual removal of miniature circuit breakers from the busbar assembly, for example if connections need to be changed
- Time-saving replacement of parts as busbars no longer need to be freed from adjacent devices
- For the quick and easy mounting of auxiliary switches and fault signal contacts
- Captive metal brackets on the additional components ensure the quick and easy mounting of devices on the miniature circuit breakers without the need for tools
- Class A trip
5SY4601-5 Standards
UL 1077 and CSA C22.2 No. 235, IEC/EN 60898-1, IEC/EN 60947-2SKU #2444859Part Number #5SY4601-5UNSPSC39121601UPC00754554877747
Image provided may only be a representation of final product and may include optional equipment
