5SY5116-6

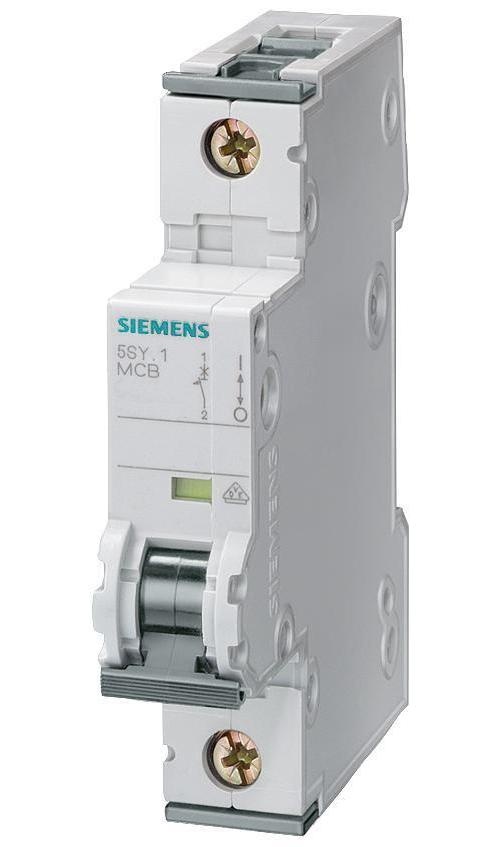

Siemens 5SY5116-6 Sentron Miniature Circuit Breaker
Part Number # 5SY5116-6
SKU # 2343195
Siemens 5SY5116-6 Key Features
| Brand: | Siemens |
|---|---|
| Part Number # : | 5SY5116-6 |
| SKU #: | 2343195 |
| Actuator Type: | Handle |
| Amperage Rating: | 16, 16 A |
| Dimensions: | 90 mm H x 18 mm W x 76 mm D |
| Enclosure Type: | IP20/IP40 |
| Frequency Rating: | 50/60, 50/60 Hz |
| Interrupt Rating: | 10, 10 kA |
| Number of Poles: | 1 |
| Series: | 5SY |
| Temperature Rating (Degrees F): | -25 to 55, -25 to 55 deg C |
| Trip Range: | 1.13 to 1.45, 1.13 to 1.45 A |
| Trip Type: | Thermal Magnetic, Thermal/Magnetic |
| Wire Size: | 14 to 4, 14 to 4 AWG |
| Connection type: | Screw |
| Country of origin: | DE |
| Mounting type: | DIN Rail |
| Manufacturer Name: | Siemens |
| UNSPSC: | 39121601 |
| UPC: | 00754554878362 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
Siemens 5SY5116-6 Sentron Miniature Circuit Breaker
Brand: Siemens
Part Number: 5SY5116-6
Sentron Miniature Circuit Breaker, Series: 5SY, 230/400 VAC, 16 A, 50/60 Hz Frequency, 10 kA Interrupt, Thermal/Magnetic Trip, 1.13 to 1.45 A Trip, 1 Pole, Handle Actuator, Screw Connection, 14 to 4 AWG Wire, IP20/IP40 Enclosure, DIN Rail Mounting, -25 to 55 deg C, 90 mm H x 18 mm W x 76 mm D Dimensions
Additional Description: SIEM-5SY5116-6 SUP PTOR 5SY5 1P IEC 230V 16A 10K B-TRIP
Catalog Description: SUPPLEMENTARY PROTECTOR,1P,16A,CURVE B Supplementary Protector, IEC Mini Circuit Breaker, 1 Pole, 16 Amps, 220 VDC, Trip Characteristic Curve B, 18mm Width, 70mm Depth, Not UL
5SY5116-6 Application
Supplementary Protection5SY5116-6 Item Features
- Clear and visible conductor connection in front of the rear busbar facilitates controls
- The conductor is easily inserted into the terminal thanks to the large and easily accessible wiring space
- Double terminal chambers permit accommodation of two wires of different cross-sections
- Quick and easy manual removal of miniature circuit breakers from the busbar assembly, for example if connections need to be changed
- Time-saving replacement of parts as busbars no longer need to be freed from adjacent devices
- For the quick and easy mounting of auxiliary switches and fault signal contacts
- Captive metal brackets on the additional components ensure the quick and easy mounting of devices on the miniature circuit breakers without the need for tools
- Class B trip
5SY5116-6 Standards
UL 1077, CSA 22.2 NO. 235, CE, EN 60 898, IEC/EN 60 947-2SKU #2343195Part Number #5SY5116-6UNSPSC39121601UPC00754554878362
