Part Number # 5SY5220-7
SKU # 2201267
5SY5220-7
Siemens 5SY5220-7 Sentron Supplementary Protector
Part Number # 5SY5220-7
SKU # 2201267
Siemens 5SY5220-7 Key Features
| Brand: | Siemens |
|---|---|
| Part Number # : | 5SY5220-7 |
| SKU #: | 2201267 |
| UNSPSC: | 39121601 |
| UPC: | 00754554878829 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
Siemens 5SY5220-7 Sentron Supplementary Protector
Brand: Siemens
Part Number: 5SY5220-7
Siemens Sentron Supplementary Protector, Miniature, 230/400 VAC, 20 A, 50 Hz Frequency, 10 kA Interrupt, Thermal/Magnetic Trip, 2 Pole, Line/Load/Screw Connection, 14 to 4 AWG Wire, IP20 Enclosure, DIN Rail Mounting, -25 to 45 deg C, 90 mm H x 36 mm W x 70 mm D Dimensions
Additional Description: SIEM-5SY5220-7 SUP PTOR 5SY5 2P IEC 400V 20A 10K C-TRIP
Catalog Description: SUPPLEMENTARY PROTECTOR,2P,20A,CURVE C Supplementary Protector, IEC Mini Circuit Breaker, 2 Pole, 20 Amps, 440 VDC, Trip Characteristic Curve C, 36mm Width, 70mm Depth, Not UL
5SY5220-7 Application
Supplementary Protection Applications5SY5220-7 Item Features
- Excellent current limiting and selectivity characteristics
- Terminals offer protection against contact with fingers or the back of the hand according to the German accident prevention regulations VBG 4/BGV A2
- Combined terminals enable a simultaneous connection of busbars and feeder cables
- Uniform components that can be quickly mounted individually
- The handle locking device virtually prevents any unauthorized operation of the handle
- Rapid connection of the feeder cable in front of the busbar
- Identical terminals at both sides for an optional infeed from the top or the bottom
- Identical wire screw connections on line and load side
- No tool required for mounting or dismounting
- Supports a fast and comfortable removal from the assembly
- Trip indication
- Type C characteristic is for general device protection in control circuits
- 35 mm DIN rail mounting
- Magnetic trip point - 5 to 10 times in rating
- Thermal trip point - 1.13 to 1.45 protector rating
5SY5220-7 Standards
IEC/EN 60898-2, IEC/EN 60947-2SKU #2201267Part Number #5SY5220-7UNSPSC39121601UPC00754554878829

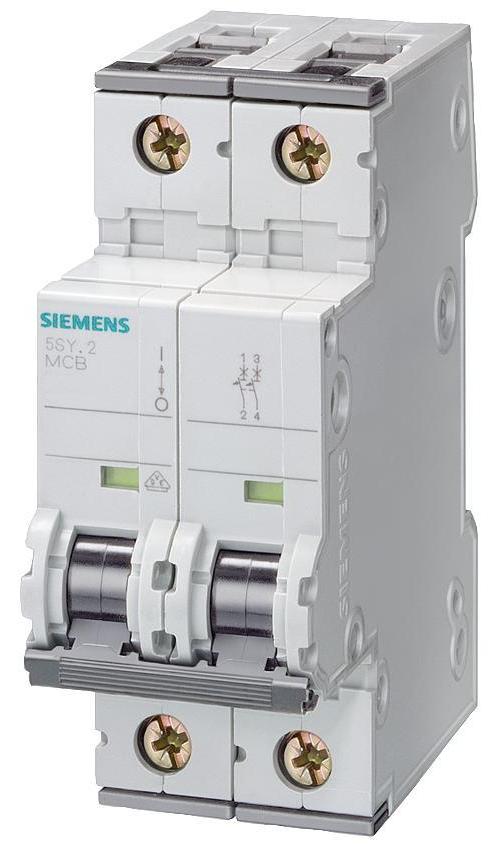

Image provided may only be a representation of final product and may include optional equipment
