- Excellent current limiting and selectivity characteristics
- Terminals offer protection against contact with fingers or the back of the hand according to the German accident prevention regulations VBG 4/BGV A2
- Combined terminals enable a simultaneous connection of busbars and feeder cables
- Uniform components that can be quickly mounted individually
- The handle locking device virtually prevents any unauthorized operation of the handle
- Rapid connection of the feeder cable in front of the busbar
- Identical terminals at both sides for an optional infeed from the top or the bottom
- Identical wire screw-on line and load side
- No tool required for mounting or dismounting
- Supports a fast and comfortable removal from the assembly
- Trip indication
- Type C characteristic is for general device protection in control circuits
- 35 mm DIN-rail mounting
- 5 to 10 times magnetic trip point rating
- 1.13 to 1.45 thermal trip point protector rating
Specifications
Brand: Siemens
Amperage Rating: 8, 8 A
Dimensions: 90 mm H x 18 mm W x 70 mm D
Enclosure Type: IP20
Frame: 5SY6
Frequency Rating: 50, 50 Hz
Interrupt Rating: 6, 6 kA
Number of Poles: 1
Temperature Rating (Degrees F): -25 to 45, -25 to 45 deg C
Trip Range: 9.04 to 11.6, 9.04 to 11.6 A
Trip Type: Thermal Magnetic, Thermal/Magnetic
Type: Miniature
Voltage Rating: 480, 480 VAC
Wire Size: 14 to 4, 14 to 4 AWG
Connection type: Line/Load Side/Screw
Country of origin: DE
Mounting type: DIN Rail
Manufacturer Name: Siemens
UNSPSC: 39121601
UPC: 00754554849966

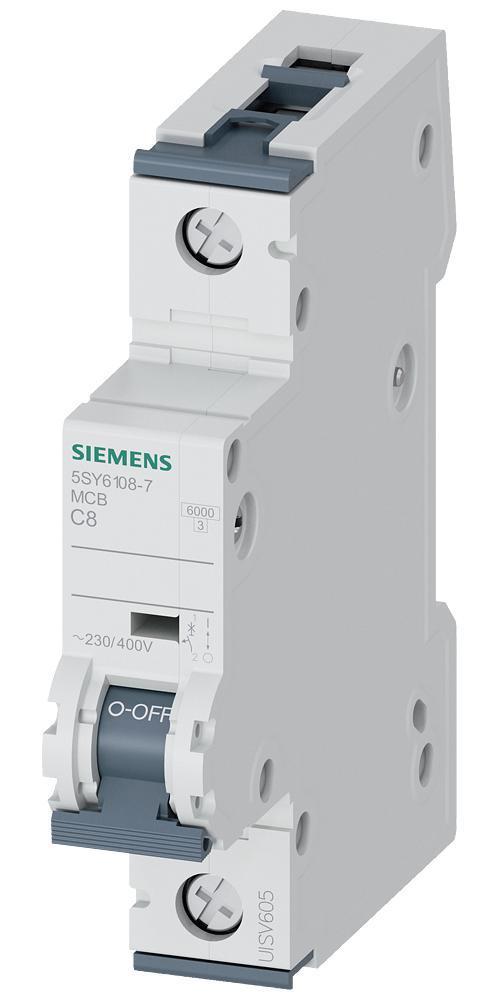

Siemens 5SY6108-7 Sentron Supplementary Protector
Siemens Sentron Supplementary Protector, Miniature, 480 VAC, 8 A, 50 Hz Frequency, 6 kA Interrupt, 5SY6 Frame, Thermal/Magnetic Trip, 9.04 to 11.6 A Trip, 1 Pole, Line/Load Side/Screw Connection, 14 to 4 AWG Wire, IP20 Enclosure, DIN Rail Mounting, -25 to 45 deg C, 90 mm H x 18 mm W x 70 mm D Dimensions
Additional Description: SIEM-5SY6108-7 SUP PTOR 5SY6 1P 240V 8A 7.5K C-TRIP C VE C PROTECTOR,1P,8A,CURVE C NON-CANCELABLE, NON-RETURNABLE
Catalog Description: SUPPLEMENTARY PROTECTOR,1P,8A,CURVE C 400V 6KA, 1POLE, C, 8A, D=70MM MINIAT. CIRCUIT-BREAKER 2
Item FeaturesSupplementary Protection Applications
Item Features
Item FeaturesCE Marked|cULus Listed|CSA 22.2 No. 235|IEC/EN 60898|IEC/EN 60947-2|UL 1077 File No. E116386
