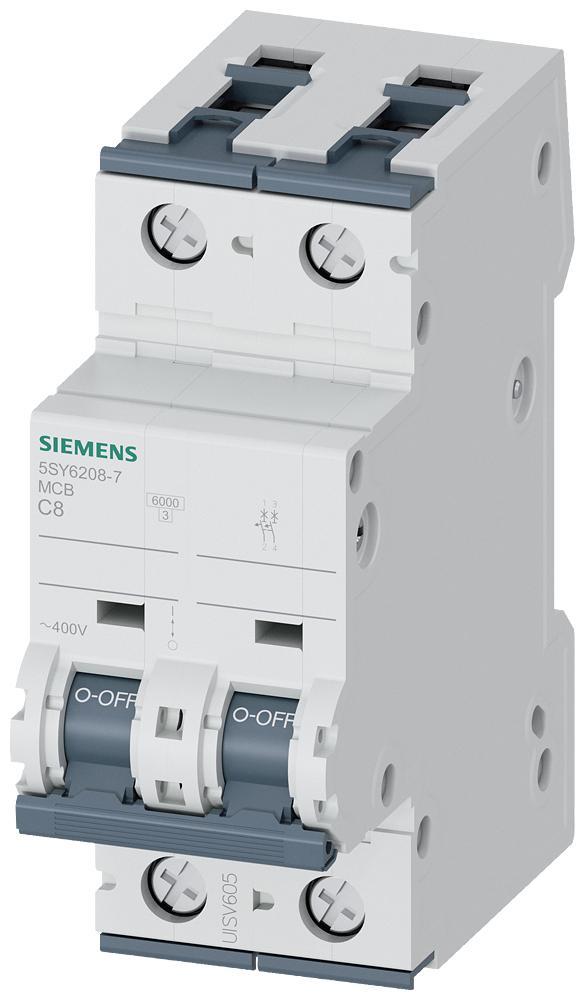

Siemens 5SY6208-7 Sentron Supplementary Protector
Part Number # 5SY6208-7
SKU # 2221905
$62.49 / Each
Typical price:$243.00 / Each
Siemens 5SY6208-7 Key Features
| Brand: | Siemens |
|---|---|
| Part Number # : | 5SY6208-7 |
| SKU #: | 2221905 |
| Amperage Rating: | 8, 8 A |
| Dimensions: | 90 mm H x 36 mm W x 76 mm D |
| Enclosure Type: | IP20 |
| Frame: | C |
| Frequency Rating: | 50, 50 Hz |
| Interrupt Rating: | 5, 5 kA |
| Number of Poles: | 2 |
| Temperature Rating (Degrees F): | -25 to 55, -25 to 55 deg C |
| Trip Range: | 1.13 to 1.45 A Thermal/5 to 10 A Magnetic |
| Trip Type: | Thermal Magnetic, Thermal/Magnetic |
| Type: | Characteristic |
| Wire Size: | 14 to 4, 14 to 4 AWG |
| Connection type: | Screw |
| Country of origin: | DE |
| Mounting type: | DIN Rail |
| Manufacturer Name: | Siemens |
| UNSPSC: | 39121601 |
| UPC: | 00040892620610 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$62.49 / Each
Typical price:$243.00 / Each
Quantity:
- Sentron Supplementary Protector, Characteristic, 480 V AC, 8 A, 50 Hz Frequency, 5 kA Interrupt, C Frame, Thermal Magnetic Trip, 1.13 to 1.45 A Thermal/5 to 10 A Magnetic Trip, 2 Pole, Screw Connection, 14 to 4 AWG Wire, IP20 Enclosure, DIN Rail Mounting, -25 to 55 deg C, 90 mm H x 36 mm W x 76 mm D Dimensions
5SY6208-7 Application
Supplementary Protection Applications5SY6208-7 Item Features
- Type C characteristic is for general device protection in control circuits
- Identical wire screw connections on line and load side
- 70 mm D installation
- Quick-assembly system mounting
5SY6208-7 Standards
CE Certified|CSA 235|EN 60 898|IEC/EN 60 947-2|UL 1077SKU #2221905Part Number #5SY6208-7UNSPSC39121601UPC00040892620610
