Part Number # 5SY6210-6
SKU # 2238073
5SY6210-6
Siemens 5SY6210-6 Sentron Supplementary Protector
Part Number # 5SY6210-6
SKU # 2238073
Siemens 5SY6210-6 Key Features
| Brand: | Siemens |
|---|---|
| Part Number # : | 5SY6210-6 |
| SKU #: | 2238073 |
| UNSPSC: | 39121601 |
| UPC: | 00040892620634 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.

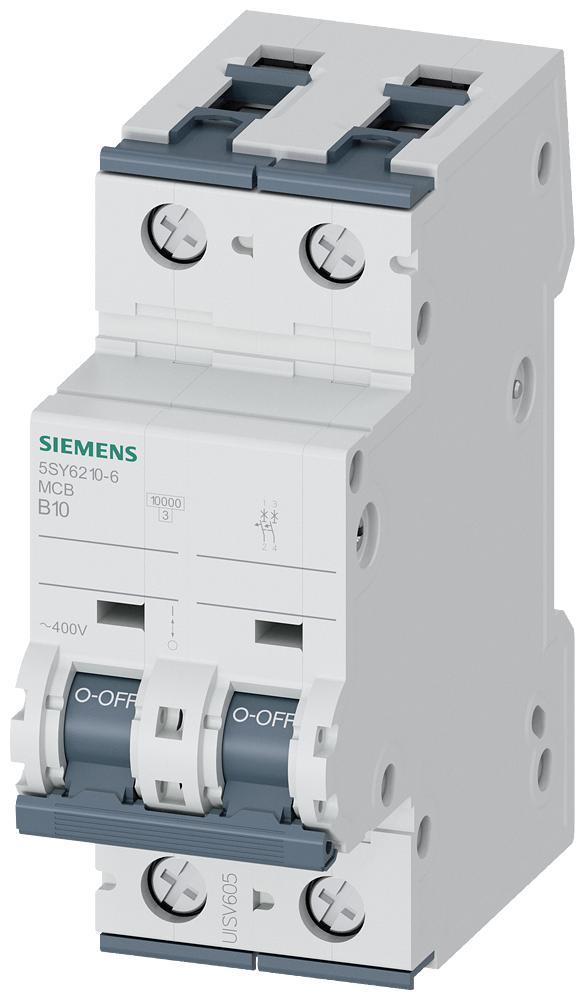

Siemens 5SY6210-6 Sentron Supplementary Protector
Brand: Siemens
Part Number: 5SY6210-6
Siemens Sentron Supplementary Protector, Miniature, 480 VAC, 10 A, 50 Hz Frequency, 6 kA Interrupt, 5SY6 Frame, Thermal/Magnetic Trip, 11.3 to 14.5 A Trip, 2 Pole, Line/Load Side/Screw Connection, 14 to 4 AWG Wire, IP20 Enclosure, DIN Rail Mounting, -25 to 45 deg C, 90 mm H x 36 mm W x 70 mm D Dimensions
Additional Description: SIEM-5SY6210-6 (N) SUP PTOR 5SY6 2P 480V 10A 5K B-TRIP B-TRIP NON-CANCELABLE, NON-RETURNABLE
Catalog Description: CIRCUIT BREAKER 400V 6KA, 2-POLE, B, 10A, D=70MM
5SY6210-6 Application
Supplementary Protection Applications5SY6210-6 Item Features
- Excellent current limiting and selectivity characteristics
- Terminals offer protection against contact with fingers or the back of the hand according to the German accident prevention regulations VBG 4/BGV A2
- Combined terminals enable a simultaneous connection of busbars and feeder cables
- Uniform components that can be quickly mounted individually
- The handle locking device virtually prevents any unauthorized operation of the handle
- Rapid connection of the feeder cable in front of the busbar
- Identical terminals at both sides for an optional infeed from the top or the bottom
- Identical wire screw-on line and load side
- No tool required for mounting or dismounting
- Supports a fast and comfortable removal from the assembly
- Trip indication
- Type b characteristic designed for European residential circuit protection, this characteristic can also be used for protection of computers and electronic equipment
- 35 mm DIN-rail mounting
- 3 to 5 times magnetic trip point rating
- 1.13 to 1.45 thermal trip point protector rating
5SY6210-6 Standards
UL 1077, CSA 22.2 NO. 235, CE, EN 60 898, IEC/EN 60 947-2SKU #2238073Part Number #5SY6210-6UNSPSC39121601UPC00040892620634
Image provided may only be a representation of final product and may include optional equipment
