Part Number # 5SY6213-6
SKU # 2326910
5SY6213-6

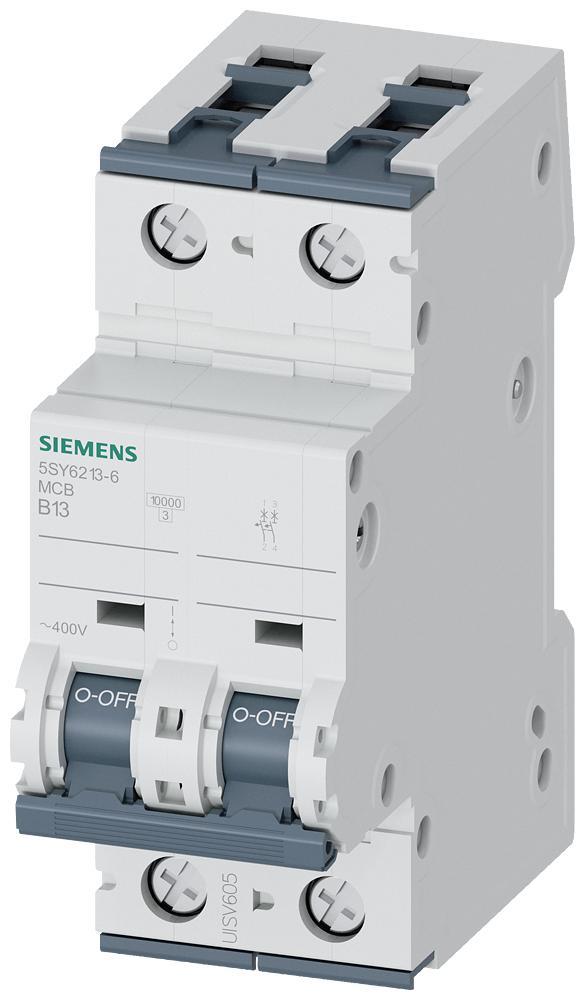

Siemens 5SY6213-6 Sentron Miniature Circuit Breaker
Part Number # 5SY6213-6
SKU # 2326910
Siemens 5SY6213-6 Key Features
| Brand: | Siemens |
|---|---|
| Part Number # : | 5SY6213-6 |
| SKU #: | 2326910 |
| Dimensions: | 90 mm H x 36 mm W x 76 mm D |
| UNSPSC: | 39121601 |
| UPC: | 00040892620658 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
Siemens 5SY6213-6 Sentron Miniature Circuit Breaker
Brand: Siemens
Part Number: 5SY6213-6
Sentron Miniature Circuit Breaker, Series: 5SY, 400 VAC, 13 A, 50/60 Hz Frequency, 5 kA Interrupt, Thermal/Magnetic Trip, 1.13 to 1.45 A Trip, 2 Pole, Handle Actuator, Screw Connection, 14 to 4 AWG Wire, IP20/IP40 Enclosure, DIN Rail Mounting, -25 to 55 deg C, 90 mm H x 36 mm W x 76 mm D Dimensions
Additional Description: SIEM-5SY6213-6 (D) SUP PTOR 5SY6 2P 480V 13A 5K B-TRIP B-TRIP
Catalog Description: CIRCUIT BREAKER 400V 6KA, 2-POLE, B, 13A, D=70MM
5SY6213-6 Application
Supplementary Protection5SY6213-6 Item Features
- Clear and visible conductor connection in front of the rear busbar facilitates controls
- The conductor is easily inserted into the terminal thanks to the large and easily accessible wiring space
- Double terminal chambers permit accommodation of two wires of different cross-sections
- Quick and easy manual removal of miniature circuit breakers from the busbar assembly, for example if connections need to be changed
- Time-saving replacement of parts as busbars no longer need to be freed from adjacent devices
- For the quick and easy mounting of auxiliary switches and fault signal contacts
- Captive metal brackets on the additional components ensure the quick and easy mounting of devices on the miniature circuit breakers without the need for tools
- Class B trip
5SY6213-6 Standards
UL 1077 and CSA C22.2 No. 235, IEC/EN 60898-1, IEC/EN 60947-2SKU #2326910Part Number #5SY6213-6UNSPSC39121601UPC00040892620658
Image provided may only be a representation of final product and may include optional equipment
